NED XCM4085DLMT4 User Manual

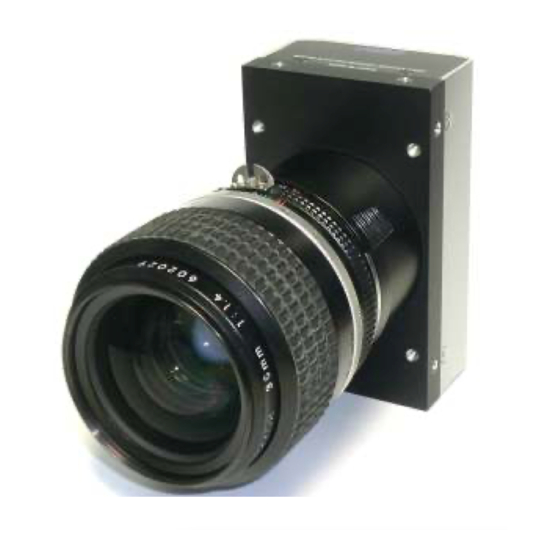

Line scan camera, camera link
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

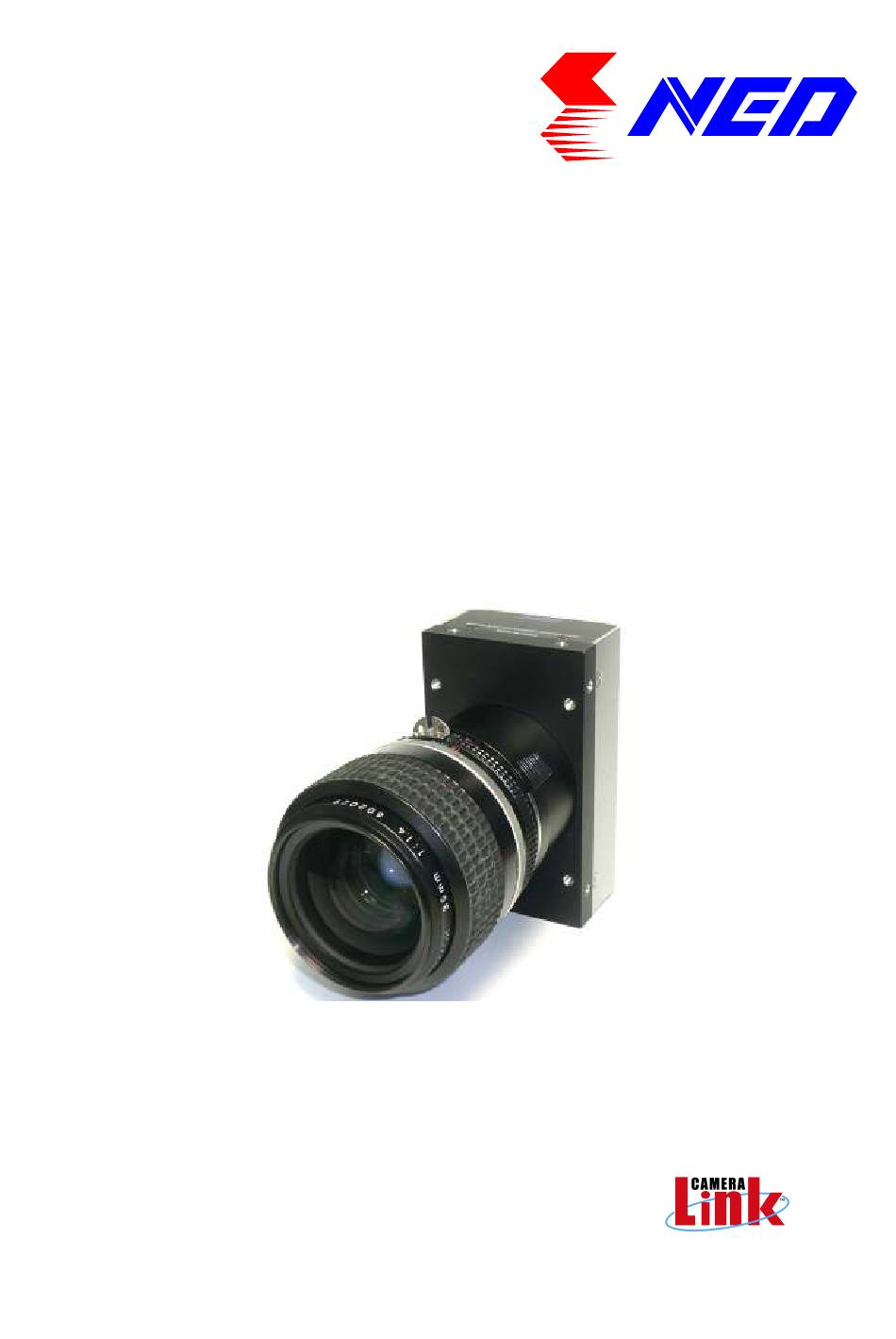

User's Manual
Line Scan Camera
Type: XCM4085DLMT4
NIPPON ELECTRO-SENSORY DEVICES CORPORATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XCM4085DLMT4 and is the answer not in the manual?

Questions and answers

Related Manuals for NED XCM4085DLMT4

Summary of Contents for NED XCM4085DLMT4

  • Page 1 User’s Manual Line Scan Camera Type: XCM4085DLMT4 NIPPON ELECTRO-SENSORY DEVICES CORPORATION...
  • Page 2 Directive on Waste Electrical and Electronic Equipment (WEEE) Please return all End of Life NED products to the distributor from whom the product was purchased for adequate recycling and / or disposal. All costs of returning the Product to NED are borne by the shipper.

  • Page 3: Safety Precaution

    Introduction Thank you for purchasing NED’s Line Scan Camera. We look forward to your continued custom in the future. For safety use For your protection, please read these safety instructions completely before operating the product and keep this manual for future reference.
  • Page 4 For stabilized image capturing, turn on the power supply and execute aging for ten to twenty minutes before actually using the camera unit. Do not share the power supply with motor units or other devices that generate noise interference. Do not disconnect the camera while rewriting an embedded memory. XCM4085DLMT4 UME-0058-03...

  • Page 5: Product Warranty

    As a general rule, in the first instance fault diagnosis should take the form of a telephone call or an email to enable us to assess the circumstances of the malfunction. However, depending on the customer’s requests, we, or our agent, may require an additional fee for this service. XCM4085DLMT4 UME-0058-03...
  • Page 6 On request, arrangements can be made separately. Scope of Repair Service The above assumes business dealings and usage to take place in the customer’s region / country. In cases of business dealings and/or usage outside the customer’s region/country, separate consultation is required. XCM4085DLMT4 UME-0058-03...

  • Page 7: Table Of Contents

    4.2.11 White Pixel Correction Data Save ................. 34 4.2.12 Initializing Pixel Correction Data .................. 35 4.2.13 Setting Pixel Correction ....................35 4.2.14 Setting Exposure Time - Readout Time ............... 36 4.2.15 Returning the Camera Settings status ................. 36 XCM4085DLMT4 UME-0058-03...
  • Page 8 7.2 When Noise is present in the Image ..................66 7.3 When the Camera becomes hot ..................... 68 8 CLISBeeCtrl ......................69 8.1 Overview ........................... 69 8.2 System Requirements ......................69 8.3 Install ............................69 8.4 Uninstall ............................ 69 8.5 Operation ..........................70 XCM4085DLMT4 UME-0058-03...
  • Page 9 8.7 Upgrade ............................. 81 8.8 How to Program ........................81 8.9 Attention on use ........................81 9 Others ........................82 9.1 Notice ............................82 9.2 Contact for support ........................82 9.3 Product Support ........................83 Revision History ......................84 XCM4085DLMT4 UME-0058-03...

  • Page 10: Product Outline

    The camera comes with an F-Mount. 1.2 Application Inspection of Transparent panels and PCBs Flat panel display inspection Inspection of glass and sheet-like objects Inspection of high speed moving objects This camera utilizes an Intelligent Transportation System Outdoor surveillance XCM4085DLMT4 UME-0058-03...
  • Page 11 LED incident lighting Figure 1-2-1 Visual Inspection of PCBs Applicable Work COB, BGA and MCM printed circuit boards Unit Configuration 1. Camera: Line scan camera 2. Controller: Dedicated software for PC system Applicable Fields Inspection of patterns on film PCBs XCM4085DLMT4 UME-0058-03...

  • Page 12: Image Sensor

    85MHz_2tap by 2x2 pixels binning 4096Pixels A line B line （View from camera mount side when the camera screw hole for a tripod is at the bottom） 2048 pixels with 14µm-square pixel equivalent by 2x2 pixels binning 2048Pixels 14um 14um XCM4085DLMT4 UME-0058-03...

  • Page 13: Performance Specifications

    (8/10bit / 4 tap) Control Input CC1: External Trigger Signal, CC2-4: Not in use Data/Controller 3M: MDR26 [Camera Link] x 2 Connectors Power Supply Hirose: HR10A (6Pin) Lens Mount Standard: F Mount Operating Temperature (˚C) 0 to 50 XCM4085DLMT4 UME-0058-03...
  • Page 14 3. Test Pattern Output On / Off 4. Programmable Exposure Control 5. Scan Direction Switching Note: *1) DN : Digital Number (8bit : 0-255) *2) Measurements were made at room temperature. The spectral responsivity is shown below. Figure 1-4-1 Spectral Responsivity XCM4085DLMT4 UME-0058-03...

  • Page 15: Camera Setting And Optical Interface

    8mm at the front and less than 6mm at the side. No X-, Y-axis orientation and tilt adjustment mechanism is available. Please prepare an adjustment mechanism if required. XCM4085DLMT4 UME-0058-03...
  • Page 16 The dimensions of the camera are shown below. Figure 2-2-1 Dimensions of the Camera XCM4085DLMT4 UME-0058-03...

  • Page 17: Optical Interface

    2.3 Optical Interface The XCM4085DLMT4 comes with an F-Mount as standard. 1) Quantities of light and the wavelength etc. of a source of light necessary to take the image for which the customer hopes are different according to the usage. The factor to...

  • Page 18: Hardware

    DC+12V 10W Figure 3-1-1 Connections between Camera and Frame Grabber Board and Power Supply Camera Link cables maker may have two types of cable for the Camera Link Medium Configuration board. See the specification and choose the appropriate cable. XCM4085DLMT4 UME-0058-03...
  • Page 19 Link cable type and length for your application. We recommend you perform a connection test in advance. Table 3-1-1 calculated value of maximum cable length maximum cable length （ｍ） Solios model clock speed（MHz） SOL 6M CL E* (20～66MHz) SOL 6M FC E* (20～85MHz) XCM4085DLMT4 UME-0058-03...

  • Page 20: Input / Output Connectors And Indicator

    The layout of input /output connecters and the LED indicator are as follows. CLISBee-A DIGITAL LINE SCAN CAMERA DATA1 CL1: CTRL CL2: DATA2 CameraLink Connector(MDR26) indicator POWER DC12-15V Power Connector(HIROSE HR-10A 6P) Figure 3-2-1 Input/Output Connectors and Indicator XCM4085DLMT4 UME-0058-03...

  • Page 21: Connectors･ ･ ･ ･ Pin Assignments･ ･ ･ ･ Cables

    DS90CR286MTD推奨 　ＬＶＡＬ，ＦＶＡＬ 　ＤＶＡＬ，ＳＰ 　ＰｏｒｔＤ～Ｆ Y0± Y0± 100Ω Y1± Y1± 100Ω Y2± Y2± 100Ω Y3± Y3± 100Ω CK40MHz YClk± YClk± 100Ω ケーブル Cable 100Ω terminated 100Ω 100Ω 100Ω 100Ω terminated 100Ω 100Ω Figure 3-3-1 Camera / Frame Grabber Interface XCM4085DLMT4 UME-0058-03...
  • Page 22 1 1 1 1 13 13 12 12 11 11 26 26 25 25 24 24 16 16 15 15 14 14 Figure 3-3-3 Camera Link Connector Half pitch (miniature half ribbon) shape Locking screw (UNC #4-40) type XCM4085DLMT4 UME-0058-03...
  • Page 23 3M: 14B26 –SZLB – xxx – 0LC by or equivalent Notes: To avoid uncoupling of the cable connectors during power on, make sure to clamp them with the locking screws. Do not unplug the cables while power is being supplied to the camera. XCM4085DLMT4 UME-0058-03...

  • Page 24: Power Supply

    Power supply voltage: DC+12 –15V (+/-5%) Consumption Current (rated): DC+12V: 350mA If the lamp fails to illuminate even after power is supplied, turn off power immediately. Inspect wiring. Check the voltage and capacity of the supplied power source. XCM4085DLMT4 UME-0058-03...

  • Page 25: Camera Control

    CMD □ VAL 1 □ VAL2 □ VAL3 CR CMD: Control text (3 Bytes) Use 3 lowercase letters only. No numerals allowed. Carriage Return (0x0D) □: Space (0x20) or Comma (0x2C) VAL: Setting value (decimal, 1 Byte x maximum 5 digits) <Example> gax□0 CR XCM4085DLMT4 UME-0058-03...

  • Page 26: Camera Sending Message (Pc Receiving Message)

    Table 4-1-3-1 Error Messages Camera Response Meaning Camera executed command CMD ERR! Command is not valid CMD OVR ERR! Command text line is too long VAL ERR! Parameter accepted was outside of specified range MEM ERR! Camera memory error XCM4085DLMT4 UME-0058-03...

  • Page 27: Camera Control Commands

    Data Save memory. Delete user arbitrary pixel correction data and reset to factory Pixel Correction setting. Data Do not turn off the power supply calibdef Initializing until this control is completed. It takes about one minute to complete XCM4085DLMT4 UME-0058-03...
  • Page 28 See more information on 4.2.21 Switch between Dual Line Mode (average)/ Single Line Mode (A line)/ Output Signal Dual Line Mode (addition) Single 0/1/2/3 Line Mode(B line). Setting 2 VAL 2 is fixed at 0. See more information on 4.2.21 XCM4085DLMT4 UME-0058-03...

  • Page 29: Memory Setup Values (Factory Settings)

    Scanning Direction Forward Line Delay Line Delay 0(Line Delay setting is not used) Output Signal Setting 1 8bit, 4096pixels_4tap Output Signal Setting 2 Dual Line Mode (Average) Gamma Correction Setting gamma 1000 Gamma correction setting is not used XCM4085DLMT4 UME-0058-03...

  • Page 30: Details On Commands

    >gdx 255 4.2.3 Setting Digital Offset Sets digital offset -127 to 127(0.5DN/step at 8bit / 2DN/step at 10bit) Format 2 CMD□VAL 1 CR -127 to 127 <Example> odx□10 CR (Setting digital offset 5/20DN at 8/10-bit]) >OK >odx 10 XCM4085DLMT4 UME-0058-03...

  • Page 31: Setting Exposure Mode

    CR (Setting exposure time 144µs) >OK >int 0, 5760 4.2.6 Memory Initializing (Initializing Camera Settings) Reset the flash memory to the factory default. Format 1 CMD CR <Example> rst CR >OK >Type=XCM4085DLMT4 >Ver. = 1.12_0x0217 >Serial=209 >gax 0 >gdx 0 XCM4085DLMT4 UME-0058-03...

  • Page 32: Memory Load

    >gamma 0, 1000 >rst 4.2.7 Memory Load Reads out the camera settings from the flash memory. Format 1 CMD CR <Example> rfd CR >OK >Type=XCM4085DLMT4 >Ver. =1.12_0x0217 >Serial=209 >gax 0 >gdx 0 >odx 0 >inm 0 >int 0, 10000 >pad 0 >shc 1,200...

  • Page 33: Memory Save

    Save the user arbitrary black pixel correction data of analog gain in flash memory. The data at each step of analog gain can be saved. This command can be used in at perfect dark of the camera. Format 1 CMD CR <Example> blk CR >OK >blk XCM4085DLMT4 UME-0058-03...

  • Page 34: White Pixel Correction Data Save

    The explanation is mentioned above in case of 8 bit output but the explanation in case of 10 bit output is the same because the second parameter (calibration level) of the pixel correction in 10 bit output is entered with 8bit output conversion value. XCM4085DLMT4 UME-0058-03...

  • Page 35: Initializing Pixel Correction Data

    2:Factory black correction+user arbitrary white correction 3:Not used 4:User arbitrary black correction+factory white correction 5:User arbitrary black correction+user arbitrary white correction) VAL2 0 to 255 (Setting correction level:8bit) <Example> shc□1□200CR (for Factory white correction, Correction level 200) >OK >shc 1,200 XCM4085DLMT4 UME-0058-03...

  • Page 36: Setting Exposure Time - Readout Time

    4.2.14 Setting Exposure Time - Readout Time Prolongs the line period without changing the exposure time. Format 2 CMD□VAL1 CR 0 to 1048575 (XCM4085DLMT4 : 0 to 12336.176µs) <Example> pad□10 CR >OK >pad 10 4.2.15 Returning the Camera Settings status Returns the current camera settings.

  • Page 37: Setting The Pixel Readout Direction

    Sets the data format of output signals. Format 3 CMD□VAL1□VAL2 CR VAL1 0,1 (Output data 8bit / 10bit switching) VAL2 0,1,2,3 (Output data format switching) See “4.7 Video output format” on 4096pixels_4tap / 4096pixels_2tap / 2048pixels_2tap / 4096pixels_4tap (Type B) for more details. XCM4085DLMT4 UME-0058-03...

  • Page 38: Setting Output Signals 2

    VAL1 0,1,2,3,4 (0:Off (1,0), 1:0.45, 2:0.56, 3:Positive negative 4:Custom) VAL2 250～4000 (Ifγ=VAL2/1000 VAL1=4, it is effective) <Example> gamma□1 CR （0.45 at gamma correction setting） >OK >gamma 1 gamma□4□2200 CR (2.20 at gamma correction setting） >OK >gamma 4 2200 XCM4085DLMT4 UME-0058-03...

  • Page 39: Relations Of Output Formats, Output Signals 1 And 2, And Line Delay

    － Simple addition Close observation setting of large output signal. (The output signal is the addition of four pixel values. 14x14 um equivalent pixel size. － － － － Do not set. － － － － － － XCM4085DLMT4 UME-0058-03...

  • Page 40: Digital Processing Flow In Fpga

    The start-up is executed by the following sequence, and as for the camera, the preparation for the image acquisition and the output is complete when normally ending. (1)The camera hardware initializes. (2) Reads out the latest camera settings from the flash memory. (User settings if any or factory default settings) XCM4085DLMT4 UME-0058-03...

  • Page 41: Saving And Loading Camera Settings

    (From frame grabber board) Free Run(Programmable time setting) Not in use (Factory setting) Ext Edge (External trigger edge + External trigger (CC1) is required Programmable time setting) Ext Level (External trigger level time External trigger (CC1) is required setting) XCM4085DLMT4 UME-0058-03...

  • Page 42: Serial Communication Settings

    ８ ｂ ｉｔ １ ０ ｂ ｉｔ ｂ ｉｔ４ ｂ ｉｔ４ ｂ ｉｔ３ ｂ ｉｔ３ ｂ ｉｔ２ LS B ｂ ｉｔ２ ｂ ｉｔ１ ｂ ｉｔ１ ｂ ｉｔ０ ｂ ｉｔ０ LS B Figure 4-7-1 Pin Assignments of Digital Data XCM4085DLMT4 UME-0058-03...
  • Page 43 Invalid Invalid Invalid Invalid (＃4 BLOCK) Note: FVAL = 0 (low level) fixed Figure 4-7-2 Video Output Phase of the Camera at XCM4085DLMT4(4096pixels_4tap) ②This camera outputs 8/10 bit digital data through 4096pixels_2tap formats.（voa * 1） 2048 ＸＣｌｋ 　ＤＶＡＬ ＬＶＡＬ ＶIＤＥＯ...
  • Page 44 Invalid Invalid Invalid (＃2 BLOCK) Note: FVAL = 0 (low level) fixed Figure 4-7-4 Video Output Phase of the Camera at XCM4085DLMT4(2048pixels_2tap) ④This camera outputs 8/10 bit digital data through 4096pixels_4tap (Type B) formats. （voa * 3） 1024 ＸＣｌｋ 　ＤＶＡＬ...

  • Page 45: Exposure Mode And Timing Chart

    4096pixels_4tap 12.05 （Type B） (unit：µs) scan Exposure ① ② ③ ④ ⑤ ① ② ③ ④ Readout Figure 4-8-1-1 Free Run Exposure Mode at 4096pixels_4tap Note: The timing of reading out does one scanning delay from the exposure. XCM4085DLMT4 UME-0058-03...
  • Page 46 Exposure ① ② ③ ④ ⑤ ① ② ③ Readout Figure 4-8-1-2 Free Run Exposure Mode at other than 4096pixels_4tap Note: The timing of reading out does two scannings delay from the exposure. XCM4085DLMT4 UME-0058-03...

  • Page 47: External Trigger Exposure Mode (External Trigger Edge)

    Trigger pulse L time ≧12.90 4096pixels_4tap ≧25.13 4096pixels_2tap Trigger pulse cycle ≧13.08 2048pixels_2tap ≧12.90 4096pixels_4tap（TypeB） (unit：µs) Readout Figure 4-8-2-1 External Trigger (Trigger Edge) Exposure Mode at 4096pixels_4tap Note: The timing of reading out does one scanning delay from the exposure. XCM4085DLMT4 UME-0058-03...
  • Page 48 CC1 1 1 1 ) ) ) ) Exposure Exposure Exposure Exposure ① ② ③ ① Readout Readout Readout Readout Figure 4-8-2-2 External Trigger (Trigger Edge) Exposure Mode at other than 4096pixels_4tap Note: The timing of reading out does two scannings delay from the exposure. XCM4085DLMT4 UME-0058-03...

  • Page 49: External Trigger Exposure Mode (Trigger Level)

    Trigger pulse Low time ≧13.12 4096pixels_4tap ≧25.93 4096pixels_2tap Trigger pulse cycle ≧13.43 2048pixels_2tap ≧13.12 4096pixels_4tap（TypeB） (unit：µs) Figure 4-8-3-1 External Trigger (Trigger Level) Exposure Mode at 4096pixels_4tap Note: The timing of reading out does one scanning delay from the exposure. XCM4085DLMT4 UME-0058-03...
  • Page 50 CC1 1 1 1 ) ) ) ) Exposure Exposure Exposure Exposure ① ② ③ ① Readout Readout Readout Readout Figure 4-8-3-2 External Trigger (Trigger Level) Exposure Mode at other than 4096pixels_4tap Note: The timing of reading out does two scannings delay from the exposure. XCM4085DLMT4 UME-0058-03...

  • Page 51: Setting Offset

    By setting the offset, you can set the Y-intercept arbitrarily. DF shows the digital offset value. The gradient of the line does not change. DF : Offset Value Output Amount of Incident Light (lx・s) Figure 4-9-2 Offset Adjustment Adjust amount of offset in accordance with the requirements of your camera system. XCM4085DLMT4 UME-0058-03...

  • Page 52: Setting Gain

    Sensitivity V/(lx・s) 0.0dB x1.0 5.0dB x1.8 10.7dB x3.4 14.3dB x5.2 16.1dB x6.4 17.9dB x7.8 19.7dB 1213 x9.7 x17.8 25.0dB 2225 Note: Digital gain x1, Pixel correction default (Factory white correction data, Correction level 200 DN / 8 bit) XCM4085DLMT4 UME-0058-03...
  • Page 53 S/N. We recommend that the value of analog gain should be as low as possible such as gax 0-3 when the period is less than 20µs. XCM4085DLMT4 UME-0058-03...

  • Page 54: Pixel Correction

    Vin :Input data (digital) Vout :Output data (digital) The corrected data is expressed in the following equation. Vout= (Vin-Cal_bl) x Target_val / (Cal_wh-Cal_bl) Waveform before bit correction Output Pixel Number Waveform after bit correction Output Pixel Number Figure 4-11-1 Waveform before and after bit correction XCM4085DLMT4 UME-0058-03...

  • Page 55: Command Settings

    (3) Confirm that the camera returns “>OK” and “>wht”. Thus user white correction data is saved and loaded to the camera. (4) Send the “shc 2 VAL CR” command through serial communication. Then the user white correction will be on and set the correction level as “VAL”. XCM4085DLMT4 UME-0058-03...

  • Page 56: Test Pattern

    This camera can generate a test pattern. Use the test pattern to verify the proper timing and connections between the camera and the frame grabber board. The test pattern of XCM4085DLMT4 , (10 bit 4096 Pixels) is as follows. Figure 4-12-1 Test Pattern of XCM4085DLMT4(4096pixels_4tap, 4096pixels_2tap,...
  • Page 57 The test pattern of XCM4085DLMT4 , (10 bit 2048 Pixels) is as follows. Figure 4-12-3 Test Pattern of XCM4085DLMT4(2048 pixels_2tap) Figure 4-12-4 Test Image of XCM4085DLMT4(2048 pixels_2tap) In 10-bit mode, from pixel 0, 10-bit data is output in order (0,1,2,3... 1023), repeating two times.

  • Page 58: Confirming Camera Settings

    (2) Confirm the direction and the channel of the cables. Some Camera Link cables are directional. If one of the connectors says “Camera side”, connect this to the camera. Camera Frame grabber side Figure 5-1-2 Connection Direction of Camera Cable XCM4085DLMT4 UME-0058-03...
  • Page 59 Camera side connector CL1 and frame grabber side connector CHANNEL#0 Camera side connector CL2 and frame grabber side connector CHANNEL#1 CLISBee-S DIGITAL LINE SCAN CAMERA DATA1 CL1: CTRL CHANNEL #0 CL2: DATA2 CHANNEL #1 POWER DC12-15V Figure 5-1-3 Channels of Camera Link Cables XCM4085DLMT4 UME-0058-03...

  • Page 60: After Power-On

    Figure 5-2-1 Confirmation of Connection (2) Set a trigger mode and a video output mode with the camera control utility Trigger mode: Free Run Video output: 8bit, 4096pixels_4TAP Figure 5-2-2 Setting of Exposure Mode and Video Output Mode XCM4085DLMT4 UME-0058-03...
  • Page 61 (3) Capture images using a camera interface board utility. In case of Matrox’s Solios, it is convenient to use Intellicam. Figure 5-2-3 Solios Intellicam dcf Window XCM4085DLMT4 UME-0058-03...

  • Page 62: In Operation

    (2) Are there dark lines in the direction of vertical scanning on the image? <Cause> <1> Dust on the sensor window Dust may get onto the sensor window from the inside or the outside of the camera. Remove the dust with air or a lens cleaner. XCM4085DLMT4 UME-0058-03...

  • Page 63: Sensor Handling Instructions

    Dust can obscure pixels, producing dark lines on the image. 6.3 Cleaning the Sensor Window Dust: Can usually be removed by blowing the window surface using a compressed air blower. Oil: Wipe the window with a lint-free cloth wiper moistened with ethyl alcohol carefully and slowly. XCM4085DLMT4 UME-0058-03...

  • Page 64: Troubleshooting

    The sample software program is used to with the camera control the camera and is communicating successfully. To next page with the camera successfully. To next page To next page Confirm the communication software, the control protocol for the camera and commands. XCM4085DLMT4 UME-0058-03...
  • Page 65 The optical axes of the camera and Check the light source. If the images are the image sensor are aligned. too dark, try to increase the light intensity, and vice versa. The camera could be faulty. Please contact us for assistance. XCM4085DLMT4 UME-0058-03...

  • Page 66: When Noise Is Present In The Image

    (attached to a machine which applies stress to the cables). Check the condition of the camera cables and the power supply cable. The camera could be faulty. Please To next page contact us for assistance. XCM4085DLMT4 UME-0058-03...
  • Page 67 When the camera gain is on a high level, bright spots occur without incident light. The camera could be faulty. Please Secondary radiation (rays) contact us for assistance. could cause bright spots, but this is not a malfunction. XCM4085DLMT4 UME-0058-03...

  • Page 68: When The Camera Becomes Hot

    Allow sufficient air circulation around the camera to give it a longer product life. Keep the ambient temperature within the range of the specifications. The camera could be faulty. Please contact us for assistance. XCM4085DLMT4 UME-0058-03...

  • Page 69: Clisbeectrl

    8 CLISBeeCtrl 8.1 Overview The CLISBeeCtrl is the remote control software for “CLISBee*” camera using “NED Camera Control Protocol” (NCCP) from a PC. Connectable interfaces are following. １）Camera Link API ２）Communication Port (COM port, RS232C) *CLISBee is the nickname for XCM series camera.

  • Page 70: Operation

    Ａ Ａ Ａ Ａ Ｂ Ｂ Ｂ Ｂ Ｃ Ｃ Ｃ Ｃ Ｄ Ｄ Ｄ Ｄ Ｅ Ｅ Ｅ Ｅ Buttons in the tool-bar have the following functions. A: Exporting parameters in the text file format. B: Connection with the camera. C: Disconnection. D: Setting Communication. E: Version Information. XCM4085DLMT4 UME-0058-03...

  • Page 71: Selecting Interface And Timeout Setting

    8.5.2 Selecting interface and Timeout setting 8.5.2.1. Selecting interface 1) Click button D. 2) Select the interface in Drop-down-list-box. 3) Click “Setting” button to set the interface. (See 8.5.2.2. and 8.5.2.3.) Click “OK” button. Click “Cancel” button when stopping setup. XCM4085DLMT4 UME-0058-03...
  • Page 72 Note: The camera can be used without this operation after it has been set up correctly. 8.5.2.2 Setting Communication port 1) Set up each item as follows. (NED standard) However, when the setup which differs to the camera to connect is shown, follow there.
  • Page 73 Note: The camera can be used without this operation after it has been set up correctly. Note: DLL for Camera Link API is provided by the manufacturer of the grabber board. Please contact the manufacturer of the grabber board for detail. XCM4085DLMT4 UME-0058-03...

  • Page 74: Connect

    Note: The camera can be used without this operation after it has been set up correctly. 8.5.3 Connect Click button B. Then you can control the camera. (See “8.6.Control”) Click the “Memory Dump” button to acquire the current data of the camera. XCM4085DLMT4 UME-0058-03...

  • Page 75: Disconnect And End Program

    8.5.4 Disconnect and end program Click button C. Then click “X” button in the upper right of the window. 8.5.5 Check of the contents of communication Click “Console” tag near the bottom window. XCM4085DLMT4 UME-0058-03...

  • Page 76: Export Parameters To Text File

    Click button A. Input file name and click “Save” button. Present setting value of each control is saved by text format. 8.5.7 Import Parameters from text file Select menu “File” – “Text Load” Input file name and click “Open” button. XCM4085DLMT4 UME-0058-03...

  • Page 77: Control

    This camera does not use ‘Analog 2’ Digital : Set a value with the slider, the edit-box or the spin-button. Then, click “Send” button. < Offset > Digital : Set a value with the slider, the edit-box or the spin-button. Then, click “Send” button. XCM4085DLMT4 UME-0058-03...

  • Page 78: Clock & Integration

    Scanrate: Shows the calculated value of the scan rate. (unit: µs ) Scanrate -> Counter automatic setting: The Counter value of Clock, Dividing, and Padding is calculated and set from the present value when the scanning cycle is set and then clicking on the “Scanrate->Counter Calculating” button. XCM4085DLMT4 UME-0058-03...

  • Page 79: Exposure Mode (Trigger Mode) & Video Output Mode

    ADC Characteristic Read Only Direction of scanning: The order of outputting data from the camera is switched in positive direction (forward) or opposite direction (reverse). XCM4085DLMT4 UME-0058-03...

  • Page 80: Intelligence

    Loading the data from the camera’s flash memory. Flash Save: Saving the data in the camera’s flash memory. Flash Initialize: Initializing the camera’s flash memory with the factory standard data. Note: It takes a while to save and initialize. XCM4085DLMT4 UME-0058-03...

  • Page 81: Upgrade

    Reproducing and distributing without notice the part or all of this software and this document is prohibited. Reverse engineering, decompiling, disassembling and modifying parts or all of this software without notice is prohibited. The specification of this software and the contents of this document may be changed without announcement. XCM4085DLMT4 UME-0058-03...

  • Page 82: Others

    Contents of this document are subject to change without prior notice. Every care has been taken in the preparation of this User’s Manual. If you should discover any errors or omissions, please notify your nearest NED representative. 9.2 Contact for support...

  • Page 83: Product Support

    If there is still a problem with your camera after checking it in accordance with the troubleshooting guide, turn off the power and call your NED representative. In such case, please inform us of the status of the camera. You can get the status by (1) executing the “sta”...

  • Page 84: Revision History

    Revision History Revision Date Changes Number 22 October 2015 Initial release 07 November 2015 2 release XCM4085DLMT4 UME-0058-03...
