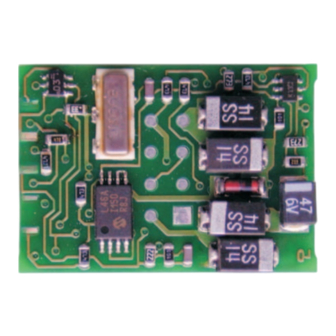

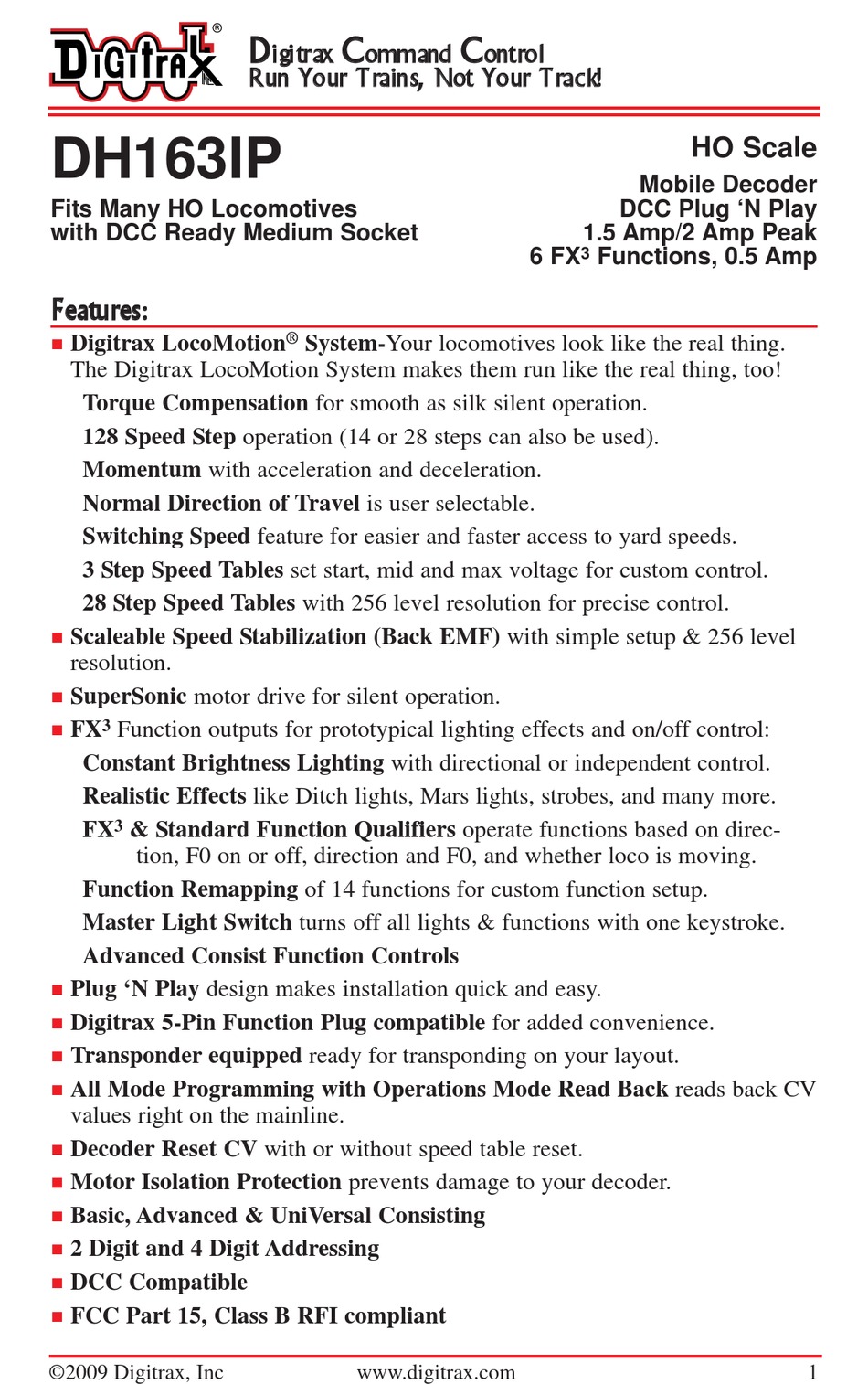

DH163IP
Fits Many HO Locomotives
with DCC Ready Medium Socket
F F e e a a t t u u r r e e s s : :
Digitrax LocoMotion
n
The Digitrax LocoMotion System makes them run like the real thing, too!
Torque Compensation for smooth as silk silent operation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level
n
resolution.
SuperSonic motor drive for silent operation.
n
3
FX
Function outputs for prototypical lighting effects and on/off control:
n
Constant Brightness Lighting with directional or independent control.
Realistic Effects like Ditch lights, Mars lights, strobes, and many more.
FX
3
& Standard Function Qualifiers operate functions based on direc-
tion, F0 on or off, direction and F0, and whether loco is moving.
Function Remapping of 14 functions for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls
Plug 'N Play design makes installation quick and easy.
n
Digitrax 5-Pin Function Plug compatible for added convenience.
n
Transponder equipped ready for transponding on your layout.
n
All Mode Programming with Operations Mode Read Back reads back CV
n
values right on the mainline.
Decoder Reset CV with or without speed table reset.
n
Motor Isolation Protection prevents damage to your decoder.
n
Basic, Advanced & UniVersal Consisting
n
2 Digit and 4 Digit Addressing
n
DCC Compatible
n
FCC Part 15, Class B RFI compliant
n
©2009 Digitrax, Inc
D D
C C
i i g g i i t t r r a a x x
o o m m m m a a n n d d
R R u u n n Y Y o o u u r r T T r r a a i i n n s s , , N N o o t t Y Y o o u u r r T T r r a a c c k k ! !
®
System-Your locomotives look like the real thing.
www.digitrax.com
C C
o o n n t t r r o o l l
DCC Plug 'N Play
1.5 Amp/2 Amp Peak
6 FX
3
Functions, 0.5 Amp
HO Scale
Mobile Decoder
1
Advertisement
Table of Contents
Related Manuals for Digitrax DH163IP
Summary of Contents for Digitrax DH163IP
- Page 1 Digitrax LocoMotion System-Your locomotives look like the real thing. The Digitrax LocoMotion System makes them run like the real thing, too! Torque Compensation for smooth as silk silent operation. 128 Speed Step operation (14 or 28 steps can also be used).
- Page 2 I I n n s s t t a a l l l l a a t t i i o o n n I I n n f f o o r r m m a a t t i i o o n n See the Digitrax Decoder Manual for complete decoder test procedures, instal- lation instructions, programming and technical information.
- Page 3 C C u u s s t t o o m m i i z z i i n n g g Y Y o o u u r r D D e e c c o o d d e e r r Your Digitrax decoder is ready to run and will operate using address 03 with no additional programming.
- Page 4 S S p p e e e e d d T T a a b b l l e e s s - - H H o o w w t t h h e e L L o o c c o o R R e e s s p p o o n n d d s s t t o o t t h h e e T T h h r r o o t t t t l l e e With Digitrax LocoMotion, there are two types of speed tables: 3 Step Tables and High Resolution 28 Step Tables.
- Page 5 Each of the six function outputs can be programmed to turn on and off with the F0 ON/OFF key on your throttle, creating a Master Light Switch. The CV values for creating this effect are listed in the Digitrax Decoder Manual in the section: Setting Up FX & FX Effects On Function Outputs.
- Page 6 Please consult the Digitrax Decoder Manual or website for information on function remapping. Q Q u u i i c c k k S S t t a a r r t t f f o o r r D D i i g g i i t t r r a a x x F F X X L L i i g g h h t t i i n n g g E E f f f f e e c c t t s s f f o o r r t t h h e e K K a a t t o o H H O O C C 4 4 4 4 - - 9 9 The prototype of the Kato HO GE C44-9, “Dash 9”, uses ditch lights in con-...
- Page 7 F2 is on, ditch lights will flash alternately to simulate operation at grade crossing. F2 is a momentary function on Digitrax throttles so that as long as the key is held down, the function operates & when released, it goes off.
- Page 8 DH163IP HO Locos with DCC Ready Medium Socket 2443 Transmitter Road Panama City, FL 32404 www.digitrax.com 850-872-9890 850-872-9557 Made in U.S.A. sales@digitrax.com...
