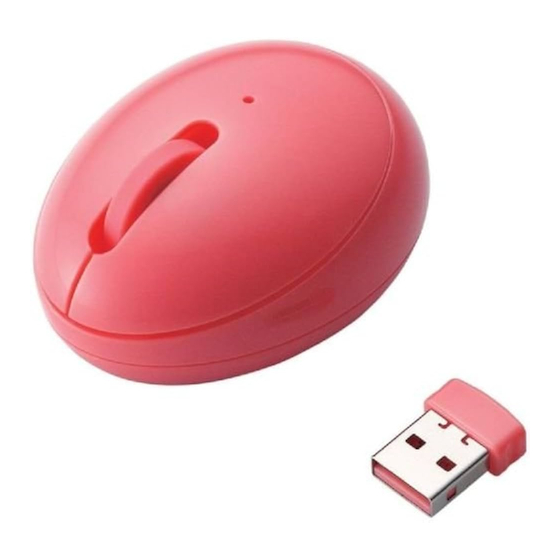

Elecom M-EG3DR Series User Manual

Wireless Optical Mouse
M-EG3DR Series
User's Manual
Thank you for purchasing the ELECOM M-EG3DR Series wireless optical mouse.
This manual describes the operating instructions and safety precautions for using the M-EG3DR
Series. Ensure that you have read this manual before using the product. After reading this
manual, store it somewhere safe for future reference.
* Except in certain cases, the M-EG3DR Series is referred to as "this product" in this manual.
Safety Precautions
Meaning of symbols
„ „
Failure to observe precautions may result in serious personal injury or death due to
WARNING
fire, electric shock, or other causes.
Failure to observe precautions may result in personal injury due to electric shock or
CAUTION
other causes, and may damage other equipment.
Prohibited action
Mandatory action
Situation that needs attention
Notes and reference information
Information that is handy to know
Observe these precautions carefully to avoid personal injury, damage, fire, and other problems
WARNING
If a foreign object (water, metal chip, etc.) enters the product, immediately stop using the
product and disconnect the receiver unit from the PC, and remove the battery from the
mouse. If you continue to use the product under these conditions, it may cause a fire or
electric shock.
If an abnormality is found with this product (emission of heat, smoke or abnormal smell
from the product), immediately stop using the product, shutdown the PC, and after
thoroughly checking that heat from the product will not cause burns, disconnect the
receiver unit from the PC, and remove the battery from the mouse. After doing this,
contact the retailer from whom you purchased the product.
Do not drop or hit this product.
If this product is damaged, immediately stop using the product and disconnect the
receiver unit from the PC, and remove the battery from the mouse.
If you continue to use the product under these conditions, it may cause a fire or electric
shock.
Do not attempt to disassemble, modify or repair this product by yourself, as this may cause a fire,
electric shock or product damage.
Do not put this product in fire, as the product may burst, resulting in a fire or injury.
Do not connect or disconnect the receiver unit with a wet hand, modify the receiver unit or bend it
forcibly, as this may cause a fire or electric shock.
CAUTION
Do not place this product in any of the following environments:
This product's packaging contains the items listed below. Before using
• In a car exposed to sunlight, a place exposed to direct sunlight, or a
the product, check that all items are present. We make every effort to
place that becomes hot (around a heater, etc.)
ensure that all products are packaged correctly. However, in the event
• In a moist place or a place where condensation may occur
that an item is missing or damaged, contact the retailer from whom you
• In an uneven place or a place exposed to vibration
purchased the product.
• In a place where a magnetic field is generated (near a magnet, etc.)
• In a dusty place
This product does not have a waterproof structure. Use and store this
product in a place where the product body will not be splashed with
water or other liquid.
Rain, water mist, juice, coffee, steam or sweat may also cause product
damage.
„
● Do not use this product with any device that may significantly affect
other equipment in the event that it malfunctions.
● If this product is used on a transparent surface such as glass or a
highly reflective surface such as a mirror, the optical sensor will
not function correctly and mouse cursor movement will become
unstable.
● When not using the mouse for one month or more, disconnect the
receiver unit from the PC.
● When you no longer need to use this product, be sure to dispose of it
in accordance with the local ordinances and laws of your area.
● Avoid looking directly at the light of the sensor as doing so may cause
eye damage.
● Always keep the receiver unit out of the reach of children as there
is a danger that they may swallow it.
„ „ Batteries
„
CAUTION
Use AAA alkaline batteries, AAA manganese batteries, or AAA nickel
hydride storage batteries with this product.
If this product will be unused for a long period of time, remove the battery
a Wheel
to avoid battery leakage and failure.
Cleaning the Mouse
„ „
If the product body becomes dirty, wipe it with a soft, dry cloth.
b Right button
Use of a volatile liquid (paint thinner, benzene, alcohol, etc.) may affect
the material quality and colour of the product.
c Left button
Cautions for Wireless Equipment
d Remaining battery level indicator lamp
This product is wireless equipment using the entire range
of the 2.4 GHz band and it is possible to avoid the band of
mobile object identification systems. DS-SS is used for the radio wave method. The
interference distance is 10 m.
The 2.4 GHz band is also used by medical equipment, Bluetooth, and wireless LAN
equipment conforming to the IEEE802.11b/11g/11n standard.
e Power switch
• Before using this product, check that there are no other "radio stations"* operating
nearby.
• If electromagnetic interference occurs between this product and other "radio
f Optical sensor
stations" , move this product to another location or stop using this product.
* Other "radio stations" refer to industrial, scientific and medical devices using the 2.4
GHz band like this product, other radio stations of this type, licensed radio station
premises for mobile object identification system that is used in factory production
lines, certain non-licensed low power radio stations and amateur radio stations.
g Battery cover
WARNING
h Battery housing
● Do not use this product with a device that may have a serious
function or influence. There are rare cases where an external
radio wave at the same frequency or the radio wave emitted
i Receiver unit housing
from a mobile phone causes this product to malfunction, slow
down, or fail to operate.
● j USB connector (Male)
Do not use this product in a hospital or other locations where
the use of radio waves is prohibited. The radio waves of
this product may affect electronic and medical devices (e.g.
pacemaker).
●
The use of a wireless mouse in an aircraft is prohibited by
aviation law because doing so may interfere with flight safety.
Turn off the power of the mouse body before boarding an
aircraft and do not use it in the aircraft.
* ELECOM is not liable for any accident or social damages
incurred by the failure of this product.
Package Contents
• Mouse x1
• Receiver unit x1
• AAA alkaline battery x1
• User's Manual x1
Part Names
„ Mouse
e
f
b
a
d
g
c
h
i
Receiver unit
„
j
The wheel can be turned back and forward with your finger or pressed like
a button to operate the PC.
Used for right-click operation.
Used for left-click operation.
Indicates when to replace the batteries.
* When a battery has been inserted, if there are sufficient remaining
battery levels, it will illuminate in red for a certain period of time, and if
low, it will flash continuously.
If the remaining battery level becomes low during use, it will flash
continuously in red for a certain period of time.
Used to turn the mouse body on and off.
Illuminates red when the mouse body is turned on. When the mouse body
S
is moved, this sensor detects mouse movement.
* Avoid looking directly at the light of the sensor as doing so may cause
eye damage.
This cover is removed to install batteries.
Batteries are inserted here.
Used to store the receiver unit.
S
Connected to a PC USB port.
- 1 -
Preparation before Use
Installing·Replacing the Battery
„ Restoring from sleep state „
Move the mouse.
Before using this product, install one AAA battery in the mouse body.
Remove the battery cover.
Inserting and Taking Out the Receiver Unit
Insert the battery.
● M a k e s u r e t h a t t h e
polarity is correct.
Install the battery cover as before.
Replacing battery
„ „
Remove the battery cover.
Remove the battery.
Insert the battery.
Install the battery cover as before. „ „ Taking out the receiver unit
Turning On and Off the Mouse
Turning on the mouse
„ „
When using this product, turn the mouse body power on.
Slide the power switch to the ON position
Turning off the mouse
„ „
When not using this product, turn the mouse body off to save
battery power.
Slide the power switch to the OFF position.
When using Windows®
1
Check USB ports S
tep tep
Check the USB port on your computer. Check that the mouse scrolls up and down correctly in Windows®
Internet Explorer.
USB port
● Any USB port may be used.
● This product can be connected to a USB hub. However, it may not
work depending on the power supply capability of the USB hub.
2
Installing the Receiver Unit
tep
Activate the PC.
If Windows® prompts you to choose an account (a user name) when
●
it starts up, be sure to log on using an administrator account.
● Wait until Windows® has started up completely.
Insert the receiver unit into the USB port of the PC.
Insert here.
USB port
Receiver unit
● Carefully check the orientation of the connector and the
place where you will connect the receiver unit.
● If you feel strong resistance when inserting the receiver
unit, check that the shape and orientation of the connector
is correct. Using excessive force may damage the connector
and cause injury.
The mouse driver is installed automatically.
To reduce battery drain, the mouse enters sleep mode
automatically if it is left without being operated for a certain
period of time with the power or switch turned on.
Remove the battery cover.
Place the receiver unit into the receiver
unit housing.
Install the battery cover as before.
Remove the battery cover.
Take the receiver unit out of the receiver
unit housing.
Install the battery cover as before.
3
Checking operation
From the [Start] menu, select [All Programs], and then [Internet
Explorer].
Internet Explorer will launch.
Display your favourite web site in Internet Explorer and change
the size of the window so that the vertical scrollbar appears.
* The sample website used here is the ELECOM homepage.
Scrollbar
Scroll the tilt wheel back and forth.
The mouse is operating normally if the screen
moves up and down as you scroll the tilt wheel.
● In applications that do not support scrolling, the screen will
not move when you scroll the tilt wheel.
