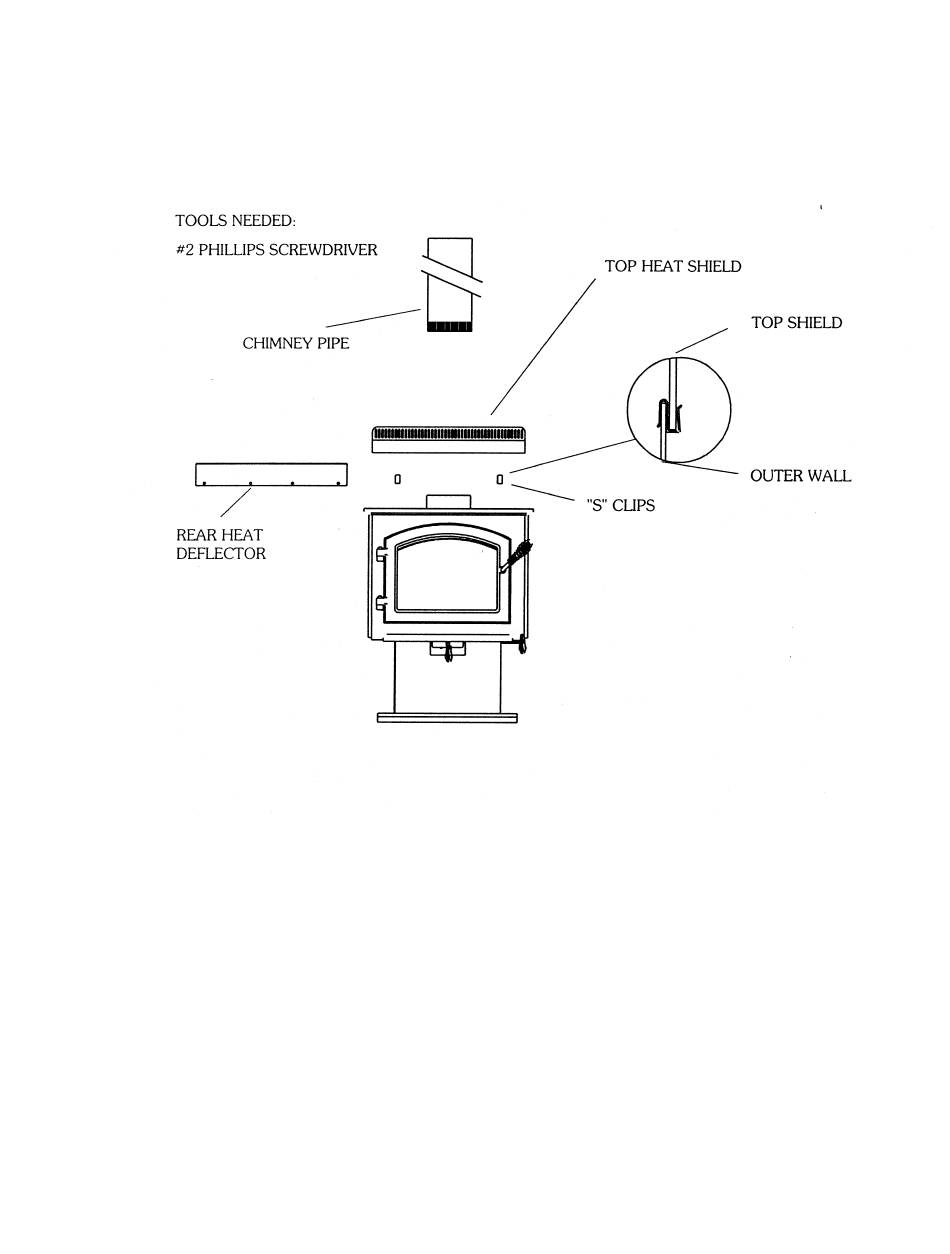

TOP HEAT SHIELD INSTALLATION
1. Unscrew and remove the rear heat deflector.
2. Attach the two "S" clips to the upper edge of the outer wall of the stove.
3.
Set top heat shield on stove and push down into "S" clips.
4. Install chimney pipe through hole in top heat shield.
NOTE: SEE PAGE 6 FOR REDUCED CLEARANCES WITH TOP SHIELD.
Page 28
