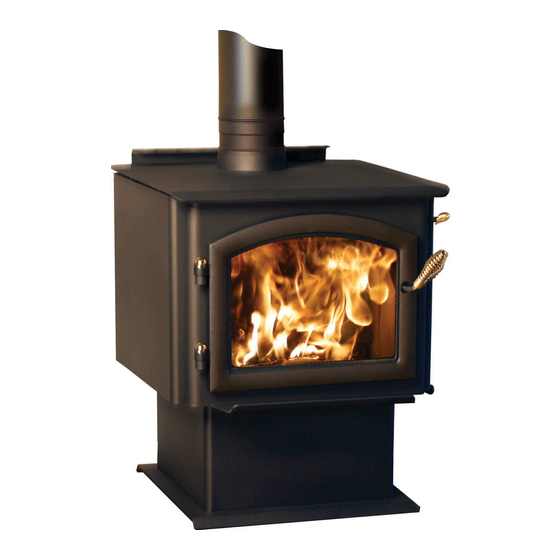

Acc freestanding wood stove
Hide thumbs Also See for 3100 Series:
Table of Contents

Advertisement

Quick Links

INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with question on installation, operation, or service.
NOTICE: DO NOT DISCARD THIS MANUAL
3100 MILLENNIUM AUSTRALIAN
WOOD APPLIANCE
AUTOMATIC COMBUSTION
CONTROL (ACC)
MODEL NUMBER:
31M-ACC-AU
This unit has been retired.
Service parts pages within have
been removed.
For replacement parts, please
refer to the individual service parts
list located on the brand website.
1
All manuals and user guides at all-guides.com
Owner's Manual
Operation & Care
R
7033-362C
WARNING
If the information in these instructions is
not followed exactly, a fire could result
causing property damage, personal injury,
or death.
•
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
•
Do not over fire - If appliance or chimney connector
glows, you are over firing. Over firing will void
your warranty.
•
Comply with all minimum clearances to combustibles
as specified.
Failure to comply may cause house fire.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass and appliance will cause burns.
•
Do not touch glass until it is cooled
•
Use leather gloves when reloading fuel
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room
as appliance.
•
Alert children and adults to hazards of
high temperatures
•
High temperatures may ignite clothing or other
flammable materials.
•
Keep clothing, furniture, draperies and other
flammable materials away.
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may over fire and generate
poisonous gases (i.e. carbon monoxide).
11/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3100 Series and is the answer not in the manual?

Questions and answers

martin wilson
March 4, 2025

need installation instructions

0
1 comments:
Mr. Anderson
March 4, 2025

The installation instructions for the Quadra-Fire 3100 Series include the following key points:

1. Fire Protection: Proper installation is critical to prevent house fires. Follow all installation instructions carefully and consult local building or fire officials regarding restrictions and inspection requirements.

2. Legs Attachment: Ensure that the appliance is installed with the legs attached if they are supplied.

3. Vent Size: The recommended vent size is 6 inches.

4. Fuel Requirements: Use only hardwood with a moisture content of less than 25% (dry basis). The recommended wood length is 16 inches, and it should be placed in a front-to-back orientation.

5. Overfiring Prevention: Do not overfire the stove. If any part of the stove or chimney connector glows, it indicates overfiring, which can cause a fire hazard and void the warranty.

6. Inspection and Compliance: Periodic inspection and maintenance are necessary for proper operation. It is against federal regulations to operate the stove in a way that does not follow the provided operating instructions.

For further assistance, consult a qualified installer, service agency, or dealer.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Quadra-Fire 3100 Series

Summary of Contents for Quadra-Fire 3100 Series

  • Page 1 All manuals and user guides at all-guides.com Owner’s Manual Operation & Care INSTALLER: Leave this manual with party responsible for use and operation. OWNER: Retain this manual for future reference. Contact your dealer with question on installation, operation, or service. NOTICE: DO NOT DISCARD THIS MANUAL WARNING If the information in these instructions is...

  • Page 2: Sample Of Serial Number / Safety Label

    QUADRA-FIRE WOODFIRE COMPLIANCE LABEL This appliance has been TESTED TO AS/NZS4013 for Hardwood by HRL Technology Report # HCMG/12/043A - Date tested: May 2012 MODEL QUADRA-FIRE 3100 SERIES ACC FREESTANDING WOOD STOVE OVERALL AVERAGE EFFICIENCY BURNING HARDWOOD WHEN TESTED IN ACCORDANCE WITH AS/NZS 4012: ............

  • Page 3: Table Of Contents

    K. Negative Pressure ......14 L. Frequently Asked Questions....14 Quadra-Fire is a registered trademark of Hearth & Home Technologies. 7033-362C...

  • Page 4: Warranty Policy

    All manuals and user guides at all-guides.com B. Warranty Policy AUSTRALIAN WARRANTY INFORMATION AUSTRALIAN WARRANTY INFORMATION Hearth & Home Technologies (HHT) 7571 215th Street West, Lakeville, MN 55044 Hearth & Home Technologies (HHT) 0011-1-651-345-1777 7571 215th Street West, Lakeville, MN 55044 www.hearthnhome.com 0011-1-651-345-1777 www.hearthnhome.com...
  • Page 5 All manuals and user guides at all-guides.com Warranty Period HHT Manufactured Appliances and Venting Parts Labor Pellet Wood Electric Venting Components Covered 6 years 3 years Catalyst - Limitations Listed Manifold Tubes HHT 7 years 3 years Chimney and Termination 10 years 1 year Burners, Logs and Refractory...
  • Page 6 All manuals and user guides at all-guides.com • Non HHT venting components, hearth components or other accessories used in conjunction with the appliance. • Any part of a pre-existing fi replace system in which an insert or a decorative gas appliance is installed. •...

  • Page 7: Quick Start Guide

    All manuals and user guides at all-guides.com C. Quick Start Guide NOTE: These are generic drawings and may not represent your specifi c model. 10 Pieces of Newspaper, 10-20 Pieces of Dry ITEMS NEEDED FOR FIRST FIRE: Kindling and Few Pieces of Dry Split Wood. OPEN AIR CONTROLS LOAD WOOD...

  • Page 8: Listing And Code Approvals

    NOTE: Hearth & Home Technologies, manufacturer of this appliance, reserves the right to alter its products, their specifications and/or price without notice. The Quadra-Fire 3100 Millennium Australian Wood Appliance is Hardwood Certified. Particulate Emissions equaling 1.4 g/ kg with a space heating efficiency of 71%.

  • Page 9: Operating Instructions

    1. Symptoms of Over-Firing has been placed on the burning of wood for home heating. Symptoms of over-firing may include one or more of In order to improve the situation, we at Quadra-Fire the following: have developed cleaner-burning wood appliances that...

  • Page 10: Air Controls

    All manuals and user guides at all-guides.com E. Using Burn Rate Air Control & ACC System 4. Second Stage The next stage of burning, the secondary stage, is the 1. Start up and Reloading Fuel period when the wood gives off flammable gases which Open both Burn Rate Air Control and ACC systems burn above the fuel with bright flames.

  • Page 11: Burn Rates And Operating Efficiency

    All manuals and user guides at all-guides.com F. Burn Rates and Operating Efficiency WARNING For maximum operating efficiency This wood appliance has a manufacturer-set minimum Risk of Fire. low burn rate that must not be altered. It is against federal When set on High Burn Rate and over-riding regulations to alter this setting or otherwise operate this the Automatic Combustion Control system an...

  • Page 12: Building A Fire

    All manuals and user guides at all-guides.com G. Building A Fire NOTE: Before lighting your first fire in the appliance: • Build fire on brick firebox floor. • Do NOT use grates, andirons or other methods to NOTE: The special high temperature paint that your support fuel.

  • Page 13: Correct Baffle & Blanket Placement

    All manuals and user guides at all-guides.com INCORRECT POSITIONS H. Correct Baffle & Blanket Placement WARNING Fire Risk Firebox damage due to improper baffle placement is not covered by warranty. Operate the wood burning appliance with the baffle in the correct position only. Not doing so could result in: •...

  • Page 14: Opacity (Smoke)

    All manuals and user guides at all-guides.com I. Opacity (Smoke) J. Clear Space This is the measure of how cleanly your appliance is • Do NOT place combustible objects within 1.2m of the burning. Opacity is measured in percent; 100% opacity is front of appliance (Figure 13.1).

  • Page 15: Negative Pressure

    All manuals and user guides at all-guides.com K. Negative Pressure WARNING Asphyxiation Risk. • Negative pressure can cause spillage of combustion fumes, soot and carbon monoxide. • Appliance needs to draft properly for safety. Negative pressure results from the imbalance of air available for the appliance to operate properly.

  • Page 16: Maintenance And Service

    All manuals and user guides at all-guides.com Maintenance and Service A. Quick Reference Maintenance Guide CAUTION! Start the first inspection after the first 2 months of use, or if performance changes, and adjust your schedule Allow the appliance to completely cool down before accordingly.

  • Page 17: General Maintenance

    All manuals and user guides at all-guides.com B. General Maintenance WARNING 1. Creosote (Chimney) Cleaning • Frequency: Every 2 months during heating season or as recommended by a certified chimney sweep; more Fire Risk. frequently if chimney exceeds or is under 14-16 ft. •...
  • Page 18 All manuals and user guides at all-guides.com 4. Glass Cleaning • Frequency: As desired • By: Homeowner Clean glass with a non-abrasive glass cleaner. Abrasive cleaners may scratch and cause glass to crack. If the deposits on the glass are not very heavy, normal glass cleaners work well.

  • Page 19: Troubleshooting Guide

    All manuals and user guides at all-guides.com Troubleshooting Guide With proper installation, operation, and maintenance your wood appliance will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist you or a qualified service person in the diagnosis of a problem and the corrective action to be taken.

  • Page 20: Service Part Replacement

    9. Replace the door on the appliance. 1. Slide door handle through door. 2. Install additional washer(s) as shown in Figure 20.1 Quadra-Fire appliances are equipped with ceramic super 3. Install key in groove. heat-resistant glass, which can only be broken by impact 4.

  • Page 21: Baffle Removal

    All manuals and user guides at all-guides.com D. Baffle Removal 1. Remove all ash from the firebox, and extinguish all hot embers before disposal into a metal container. 2. The baffle board has 2 pieces. With the ceramic blanket still in place, slide one baffle piece over the top of other one and pull out top piece through the door opening and then remove bottom baffle piece (Figure 21.1).

  • Page 22: Tube Channel Assembly Replacement

    All manuals and user guides at all-guides.com E. Tube Channel Assembly Removing Tube Channel Assembly 1. Remove the right side shield by lifting up on side to remove. 2. Remove 4 screws from channel access cover and remove cover. NOTE: Service Space 3.

  • Page 23: Reference Materials

    All manuals and user guides at all-guides.com Reference Materials A. Service and Maintenance Log Date of Service Performed By Description of Service 7033-362C 11/21...
  • Page 24 Hearth & Home Technologies 352 Mountain House Road Halifax, PA 17032 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafi re.com CAUTION DO NOT DISCARD THIS MANUAL •...
