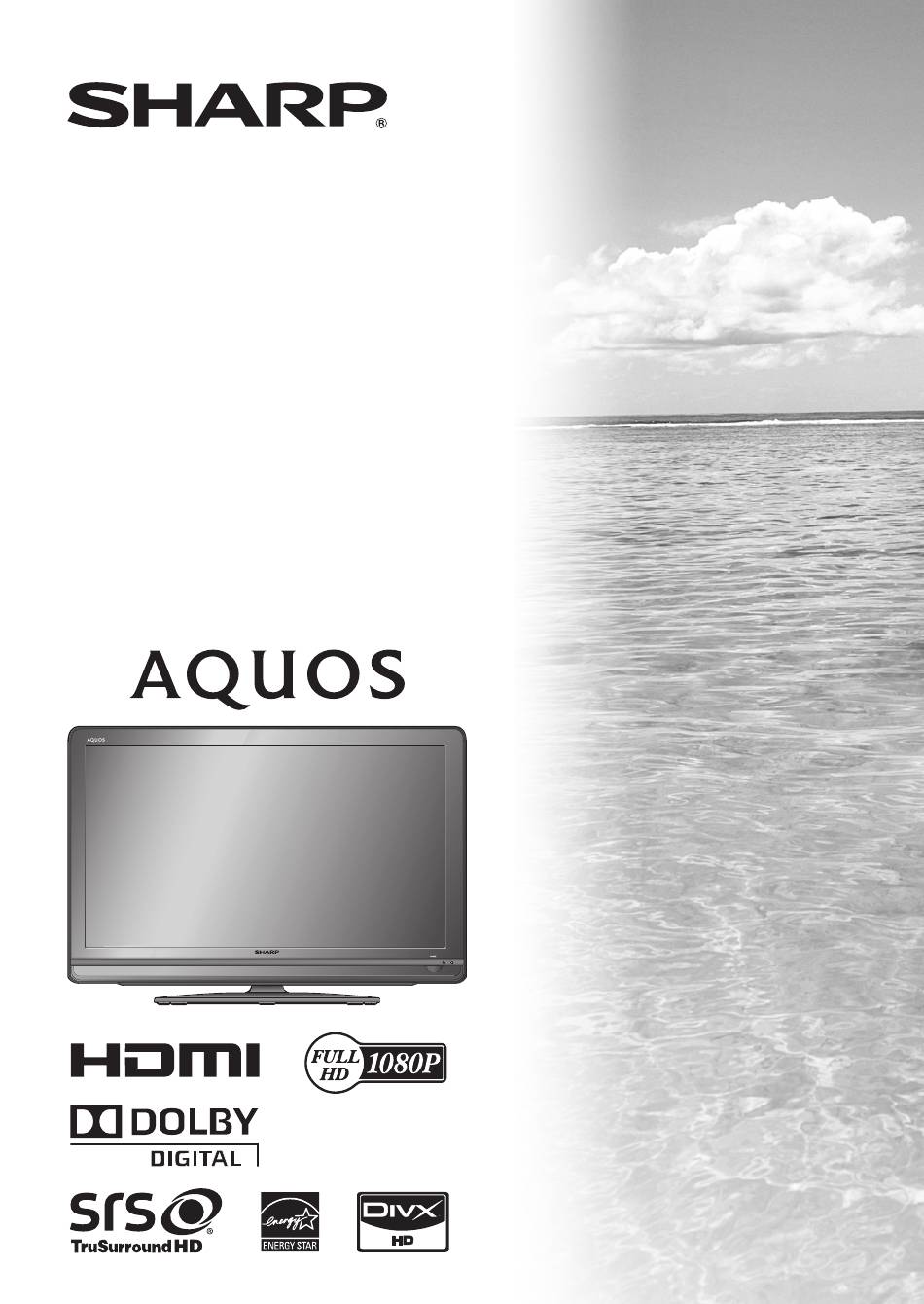

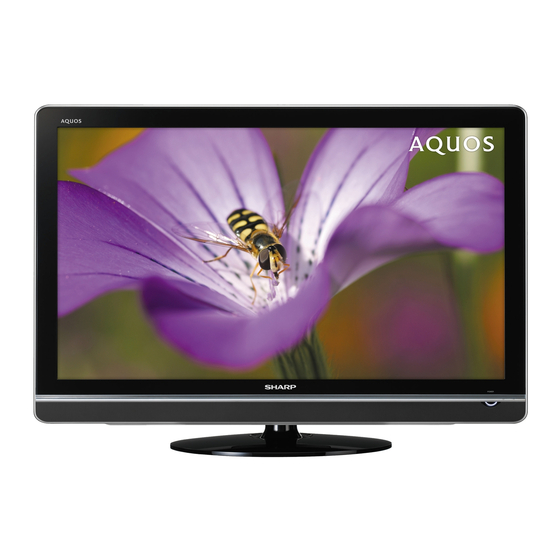

Sharp LC-32L450X Operation Manual

Sharp LC-32L450X Operation Manual

Aquos lcd colour television

Advertisement

MODEL
LC-32L450X
LC-40L550X
LC-40L650X
LCD COLOUR TELEVISION
OPERATION MANUAL
Only for LC-40L550X/
LC-40L650X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC-32L450X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sharp LC-32L450X

  • Page 1 MODEL LC-32L450X LC-40L550X LC-40L650X LCD COLOUR TELEVISION OPERATION MANUAL Only for LC-40L550X/ LC-40L650X...
  • Page 3: Table Of Contents

    ECO menu ..............12 Dear SHARP customer Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Precautions carefully before using this product.
  • Page 4: Important Safety Precautions

    • Do not place heavy objects on this product or stand on it. Doing so could cause injury if the product overturns. Take special care near children and pets. • The LCD panel is a very high technology product with 1,049,088 (only for LC-32L450X)/2,073,600 (only for LC-40L550X/ LC-40L650X) pixels, giving you fi ne picture details.
  • Page 5: Attaching The Stand

    Attaching the stand • Before attaching (or detaching) the stand, unplug the AC cord from the AC outlet. • Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged. Confi...
  • Page 6: Connecting External Devices

    Connecting external devices You can connect many types of external equipment to your TV, like a VCR, game console, camcorder, DVD player, Digital TV STB (Set Top Box) and PC. To view external source images, select the input source from TV/VIDEO on the remote control unit or TV/VIDEO on the TV.
  • Page 7: Remote Control Unit

    Remote control unit 11 INFO DTV mode: Display the programme information. (See page 17.) 12 RADIO Press to access RADIO mode. (See page 18.) 13 POWER (STANDBY/ON) To switch the power on and off. (See page 7.) 14 DISPLAY Display the channel or input information. 15 SLEEP Set the Sleep timer.
  • Page 8: Part Names

    Part names TV (Front) OPC sensor Remote control sensor POWER indicator Light off Power off Lighted (Red) The TV is in standby mode. Lighted (White) The TV is on. TV (Rear) 1 POWER (On/Off) button 2 MENU button 3 TV/VIDEO button 4 Channel up ( r )/down ( s ) buttons 5 Volume up ( e )/down ( f ) buttons 6 RS-232C terminal...
  • Page 9: Turning The Tv On/Off

    Turning the TV on/off Selected item Description Select “Yes” when your antenna is set- up and connected independently. Turning on/off the power Select “No” when you do not need to • To turn on the power supply voltage to your antenna, i.e. Press POWER on the TV.
  • Page 10: Auto Installation

    Checking Signal Programme setup information (Continued) Digital settings You can reconfi gure DTV services settings automatically H Checking Signal information or manually. Press a / b to select “Signal information”. Press MENU and the MENU screen displays. Auto search Manual search Manual adjust Press c / d to select “Setup”.
  • Page 11 Press a / b to select the desired menu, and Programme setup (Continued) then press ENTER. The item position of services can be sorted Press a / b or c / d to select the desired item 1 Press a / b to select the service whose item or adjust the item to the desired level.
  • Page 12: Selecting A Preset Av Mode

    Programme setup (Continued) Selecting a preset AV mode H Sort (Analogue) Channel position can be sorted freely. “AV mode” gives you several viewing options to Repeat steps 1 to 4 in Auto search. choose from to best match the system environment, which can vary due to factors like room-brightness, type of programme watched or the type of image input Press a / b to select “Sort”, and then press...
  • Page 13: Picture Menu

    Active contrast Picture menu Automatically adjusts the contrast of an image according to the scene. (On, Off) 3D-Y/C Picture Audio Provides high quality images with minimal dot crawl and [ STANDARD ] AV mode cross colour noise. (On, Off) [ Off ] Backlight –16 NOTE...
  • Page 14: Eco Menu

    ECO menu Setup menu Digital setup Setup Option Setup Option Auto installation [ Enable ] No signal off Analogue programme setup Power management Digital programme setup [ 3hr. ] No operation off Child lock Ecology Input skip Input label Position HDMI auto view [ On ] [ Panorama ]...
  • Page 15 H Input label Setup menu (Continued) You can assign each input source a label as you prefer. Parental rating Press TV/VIDEO to select the desired input This function allows TV channels to be restricted. source. It prevents children from watching violent or sexual scenes that may be considered inappropriate.
  • Page 16: Option Menu

    H 4:3 mode Option menu The WSS signal has 4:3 auto-switching that allows you to select between Panorama and Normal. Selected item Description Option Digital setup Panorama Wide image without side bars Input select PC audio select [HDMI1] Normal Normal range keeping 4:3 or 16:9 aspect Output volume select [Fixed] ratio...
  • Page 17 H Fine sync. (PC input mode only) Option menu (Continued) Adjusting the PC image automatically H Digital audio output Auto sync. This function allows you to select your favourite audio This function enables the screen to be automatically output system. adjusted to its best possible condition when the analogue terminals of the TV and PC are connected Selected item...
  • Page 18: Digital Setup Menu

    H Switching subtitle languages (DVB Subtitle) Digital setup menu Each time you press [ on the remote control, the subtitle switches when the broadcast contains subtitle information. Option Digital setup Set “Hearing impaired” to “On” Audio language (Hearing impaired) 1st Language Subtitle language Hearing impaired [Off]...
  • Page 19: Programme Guide

    Programme Guide Info You can check the current schedule of DTV events and view detailed information about current events. While watching DTV you can check the extended programme information on the screen using INFO on Press GUIDE to display the programme guide the remote control.
  • Page 20: Atv (Analogue/Dtv/Radio Buttons)

    ATV (Analogue)/DTV/ When the TV accesses to DTV mode for the fi rst time, you need to run the auto search. To scan all available RADIO buttons services in your area, follow the procedures below. To watch DTV broadcasts, select “DTV” from Use the following buttons on the remote control to auto installation menu.
  • Page 21 Switching the analogue audio format (Continued) In the TV mode of A2 TV broadcasts When receiving a stereo signal Each time you press MPX, the mode switches between STEREO and MONO. Stereo mode BBC1 BBC1 STEREO MONO When receiving a bilingual signal Each time you press MPX, the mode switches among CH A, CH B and CH AB.
  • Page 22: Epg

    What is an EPG? An “EPG (Electronic Programme Guide)” is a programme schedule, which is displayed on the TV screen. The EPG is broadcasted together with DTV. The TV screen shows the EPG when the viewer presses EPG on the remote control, provided that the TV is receiving the digital broadcasting signal.
  • Page 23: Picture And Still Image

    • FREEZE doesn’t function for PC input (all resolution). Underscan Display with an Underscan image only when receiving a 720p/1080i/1080p signal (only for LC-32L450X)/a 720p signal (only Wide Mode for LC-40L550X/LC-40L650X). Display with the High-Defi nition image adjusted optimally. Noise may appear on the edge Auto Selection of the screen with some programmes.
  • Page 24: Teletext Function

    Teletext function PC Control of the TV What is Teletext? • When a programme is set, the TV can be controlled from the PC using the RS-232C terminal. Teletext broadcasts pages of information and The input signal (PC/video) can be selected, entertainment to specially equipped television sets.
  • Page 25: Pc Compatibility Chart

    PC compatibility chart Resolution Horizontal Frequency Vertical Frequency VESA Standard Analogue (D-Sub) Digital (HDMI) 720 g 400 ✔ ✔ 31.5 kHz 70 Hz ✔ ✔ ✔ 640 g 480 31.5 kHz 60 Hz ✔ ✔ ✔ 800 g 600 SVGA 37.9 kHz 60 Hz ✔...
  • Page 26: Usb Media Player

    USB Media Player Connecting a USB device USB media Connect a USB device to the TV as shown below. Press TV/VIDEO to select the “USB” mode or the TV automatically switches to the USB mode when a USB device is connected to the TV. USB media In this mode, you can enjoy viewing photos, listening to music and watching videos from external USB devices.
  • Page 27 USB Media Player (Continued) H Viewing video Movie mode Press c/d to select “Movie mode”, and then press ENTER. Press a/b to select the desired folder or directory, and then press ENTER. Press a/b to select the desired video. Buttons for full screen display operation Buttons Description Select movie...
  • Page 28 USB Media Player (Continued) Music mode Photo mode H Viewing thumbnails Select music 1 / 1 Page Time File name USB g220\Audio\mp3 \USB g220\Audio\mp3 Select photo 1/1 Page SONG_01.MP3 3:05 3:15 SONG_02.MP3 3:02 SONG_03.MP3 SONG_04.MP3 6:05 SONG_05.MP3 4:52 SONG_06.MP3 9:25 3:13 SONG_07.MP3 SONG_08.MP3...
  • Page 29 USB Media Player (Continued) DivX® setup This is the function to confi rm your registration code. Press MENU and the MENU screen displays. Press c/d to select “Option”. Press a/b to select “DivX Reg Code”, and then press ENTER. • Copy the 10 digit code down. H DivX®...
  • Page 30: Appendix

    Appendix Troubleshooting The problems described below are not always caused by malfunctions. Check the TV again before having the TV serviced. Problem Possible Solution • No power. • Check if you pressed POWER on the remote control unit. (See page 7.) If the indicator on the TV lights up red, press POWER.
  • Page 31: Specifi Cations

    CAUTION • This TV should be mounted on the wall only with the listed (SHARP) wall mount bracket. The use of other wall mount brackets may result in an unstable installation and may cause serious injuries.
  • Page 32: Protection Against Overturning

    Protection against overturning There is a danger of the product overturning in the case of a disaster or sudden collision. Carry out the following tip-resistant measurement for your safety. Anchoring the TV to the wall or a pillar Fix the product with the 2 clamps View from the top (supplied), using the screws (supplied).
  • Page 33: Dimensional Drawings

    Dimensional drawings LC-32L450X Unit: mm 699.2 POWER MENU VIDEO 92 115 LC-40L550X/LC-40L650X 478.9 887.8 POWER MENU VIDEO 121.4 115 311.8...
  • Page 34: Clearing The Password

    CLEARING THE PASSWORD If you forget the password, clear the password using the following procedure. Press MENU to display the MENU screen, and then press c / d to select “Setup”. Press a / b to select “Child lock”, and then press ENTER and the password input screen display.
  • Page 36 Printed in Malaysia TINS-E727WJZZ 10P08-MA-NF...
