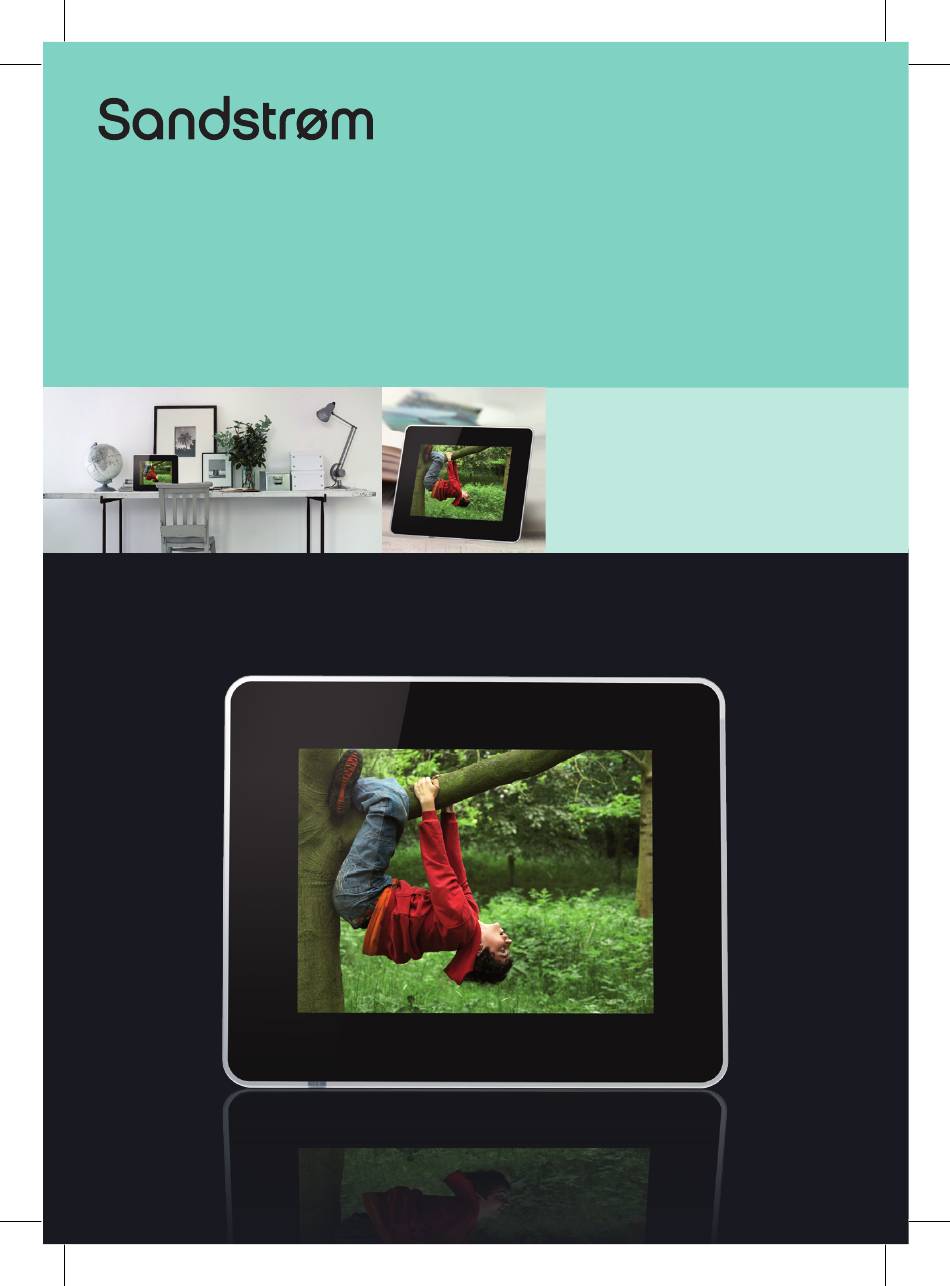

- Page 1 Instruction Manual 8” Digital Photo Frame S8KDPF10...
-
Page 3: Table Of Contents
Contents Unpacking the Photo Frame ................4 Product Overview ....................5 Preparations......................6 Attaching the Stand ........................ 6 Connecting to the Mains Power ..................7 Inserting a Memory Card / USB Flash Drive ..............8 Main Menu ......................8 Selecting the Memory Drive....................8 Viewing Photos ....................9 Main Menu .......................... -
Page 4: Unpacking The Photo Frame
Congratulations on the purchase of your new Sandstrøm Digital Photo Frame. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Product Overview
Product Overview Main Unit 4 5 6 LCD Display Description Name • To access the menu mode MENU • Press to move right in the menu / thumbnail mode / button option settings • To display the next photo • Press to move up in the menu / thumbnail mode / button option settings • To start / pause the slideshow... -
Page 6: Preparations
Preparations Attaching the Stand 1. Take out the stand attached at the back of the photo frame. Stand Receptacle Stand 2. Screw in the stand into the stand receptacle. 3. Now the stand is fixed, you can choose to display your photo frame in a landscape or portrait position. -
Page 7: Connecting To The Mains Power
Connecting to the Mains Power 1. Connect the supplied mains adapter (5V DC, 1A) to the photo frame, and plug in the mains adapter into the mains socket. 2. Slide the ON/OFF button to the ON position to turn on the photo frame. 3. -
Page 8: Inserting A Memory Card / Usb Flash Drive
Inserting a Memory Card / USB Flash Disk This photo frame can only display one storage media’s contents at a time. If more than one storage device is connected, please refer to “Selecting the Memory Drive” and select your desired drive to be displayed in the main menu. This frame can only play images (JPEG). -
Page 9: Viewing Photos
Viewing Photos Main Menu 1. When a memory device is inserted into the Photo Frame, the corresponding icon appears on the main menu. 2. On the main menu, you can select connected source to view photos or change frame settings. Selecting the Memory Drive Press the MENU button to access the main menu. -
Page 10: Viewing Thumbnails
Viewing Thumbnails In Photo mode, the photos on the selected memory source can be displayed on the screen as thumbnails. Up to 15 photos are displayed at a time. 1. Select a memory source (e.g. USB, SD/MMC/MS) on the main menu and press the button. -
Page 11: Using The Tool Bar
Using the Tool Bar You also can use the OSD menu to view the photos one by one manually. 1. Press the MENU button during viewing a photo or slideshow. The OSD menu appears on the screen and the slideshow will pause. 2. -
Page 12: Changing Frame Settings
Changing Frame Settings The system settings let you customize and configure your Photo Frame. Select the Setup icon on the main menu and press the button. The Setup Menu appears on the screen. 1. To select a setting item, press the button and then press the button. -
Page 13: Troubleshooting
Troubleshooting No power • Check to make sure the mains plug is plugged into the mains socket. • Make sure there is power in the mains socket. Unable to view photos on the Photo Frame • Not all JPEG files are compatible. Please open the files in a computer and resave them as JPEG files and then try to playback in the photo frame. -
Page 14: Specifications
Specifications Display Digital LCD, TFT Panel size: 8 inches Screen aspect ratio: 4:3 Resolution: 800*600 pixels DC in Power Supply AC Adapter (Input: 100~240V AC, 50~60Hz; Output: DC 5V 1A) USB Port USB Host 2.0 (High Speed) Supports USB flash media USB Max Load : DC 5V, 400mA Supported Peripheral SD™... -
Page 15: Safety Warnings
Safety Warnings When using electrical appliances, basic • When the photo frame is not in use or precautions should always be followed, unattended for a long period of time, including the following: disconnect it from the mains socket. • Do not remove any fixed cover as this • Read all the instructions and retain this may expose dangerous voltages. - Page 16 Note: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Photo Frame Stand 27-155-06440200 Mains Adapter 49-501-05100059 Instruction Manual 46-007-44010309 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
