Summary of Contents for Sandstrom S7iDPF10

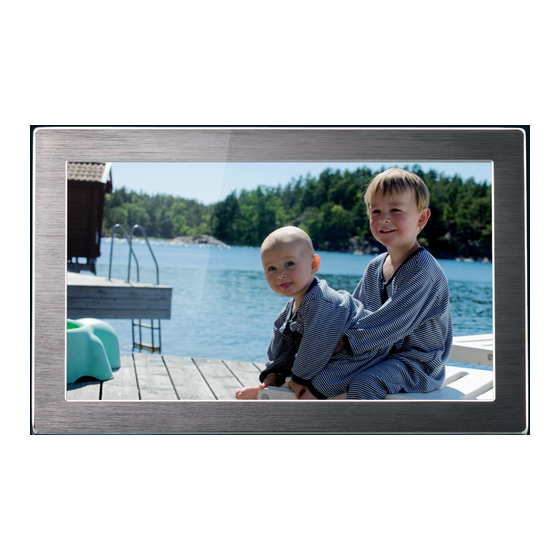

- Page 1 Instruction Manual 7” Interchangeable Digital Photo Frame S7iDPF10...
-
Page 3: Table Of Contents
Contents Unpacking the Photo Frame ................4 Product Overview ....................5 Preparations......................6 Attaching the Stand ........................ 6 Changing the Frame ........................ 7 Connecting to the Mains Power ..................8 Inserting a Memory Card / USB Flash Drive ..............9 Basic Operation ....................10 Display Image ..........................10 Auto Rotation ...........................11 Settings ...................... -
Page 4: Unpacking The Photo Frame
Congratulations on the purchase of your new Sandstrøm Digital Photo Frame. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Product Overview
Product Overview Main Unit MENU/EXIT UNSCREW LCD Display Name Description • To accommodate SD, MMC, MS cards SD/MMC/MS slot • To accommodate USB devices such as portable USB host USB flash drives or flash memory card readers • To display setting menu MENU / EXIT • To exit the menu or return to last display • To move left or up in the menu / thumbnail mode... -
Page 6: Preparations
Preparations Attaching the Stand 1. Take out the stand attached at the back of the photo frame. Stand Receptacle UNSCREW Stand 2. Screw in the stand into the stand receptacle. UNSCREW 3. Now the stand is fixed, you can choose to display your photo frame in a landscape or portrait position. -
Page 7: Changing The Frame
Changing the Frame 1. Removing the interchangeable frame Release all the hooks on the edges of the interchangeable frame by pulling up the interchangeable frame. 2. Installing the interchangeable frame • Hold the interchangeable frame and place it on the photo frame. • Press the interchangeable frame for all the hooks to be fixed in place. -
Page 8: Connecting To The Mains Power
Connecting to the Mains Power 1. Connect the supplied mains adapter (5V DC, 1.2A) to the photo frame, and plug in the mains adapter into the mains socket. UNSCREW 2. Press and hold the button on the photo frame to turn it on. MENU/EXIT UNSCREW 3. -
Page 9: Inserting A Memory Card / Usb Flash Drive
Inserting a Memory Card / USB Flash Drive Insert a SD memory card, MMC memory card, or Memory Stick into the slot with its label side facing forward. UNSCREW • Insert your memory card into the appropriate slot following the orientation marked on the photo frame. -
Page 10: Basic Operation
Basic Operation Display Image After turning on the unit the opening screen will appear, and after 3 seconds automatically switch to calendar display with slideshow image. If no memory card is inserted, a still image in the internal memory is displayed. Calendar Display Slideshow Image (default) MENU/EXIT... -
Page 11: Auto Rotation
Auto Rotation Place the unit in either portrait or landscape orientation. The single image rotates automatically 90o to its proper orientation. 1. No auto rotation for setting mode, index image, or calendar display. 2. There maybe occasions where image may rotate unstably. To amend, tilt the unit slight to refocus your image and adjust the image orientation. -
Page 12: Settings
Settings Press and hold the MENU / EXIT button to display the setting menu. Press the buttons to select an item, and then press the button to enter the setting mode and confirm the setting. Press the MENU / EXIT button to exit to last menu. -
Page 13: Set Slideshow Effect
Set Slideshow Effect In the menu press the button to select slideshow effect and then press the button to select one of the 10 effects : Radom, Windows, Jalousie, Fade, Insert, Reel, Brick, Release, 3DMix, Comb. Set Slideshow Interval In the menu press the button to select slideshow interval and then press the button to set a value from 3 seconds (default), 5 seconds, 15 seconds, 3 minutes, 5 mintues and 15 minutes for the interval between images. -
Page 14: Rotate
Rotate (Only available on single view mode) Select “Rotate” in the setting menu, press the button to rotate the current image 90°clockwise. Press the MENU / EXIT button to exit from rotate mode and return the photo back to its original orientation. Zoom File (Only available on single view mode) Select “Zoom”... -
Page 15: Delete File
Delete File (Only available in thumbnail mode) Enter “Delete file” menu, select “Yes” and press the button to delete the selected image from the thumbnails. Reset Setting Enter “ Reset Setting” menu, select “Yes” and press the button to confirm all settings to return to factory defaults except time setting. -
Page 16: Language
Language Set the display language on the LCD screen : English (default), French, German, Spanish, Portuguese, Dutch. Brightness / Contrast / Colour / Tint Select the item you want to change and press the button to display a bar. Press button to adjust the level from 0-40. -
Page 17: Time
Time Press the button to highlight the year / month / day / hour / minute / second option you want to set. Press the button to adjust the digit and then press the button again to confirm. Finally select “Save Time” and press the button to activate the new time. -
Page 18: Troubleshooting
Troubleshooting 1. No power • Check to make sure the mains plug is plugged into the mains socket. • Make sure there is power in the mains socket. 2. Unable to view photos on the Digital Photo Frame • Not all JPEG files are compatible. Please open the files in a computer and resave them as JPEG files and then try to playback in the photo frame. -
Page 19: Specifications
Specifications Display 7" Digital TFT LCD Panel View Area 480 x 234 pixels Brightness 145 cd/m Contrast 500 : 1 Stand Detachable I / O Ports DC IN / USB 2.0 Memory Card Slot SD / MMC / MS Support File Format Photo : JPEG USB Flash Disk Up to 8GB... -
Page 20: Safety Warnings
Safety Warnings When using electrical appliances, basic • When the photo frame is not in use or precautions should always be followed, unattended for a long period of time, including the following: disconnect it from the mains socket. • Do not remove any fixed cover as this • Read all the instructions and retain this may expose dangerous voltages. - Page 21 Note: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Photo Frame Stand 61-DPF-001 Mains Adapter 31-0512#UK Photo Frame 40-DPF970A-001 Instruction Manual 71-DPF970A-002 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
