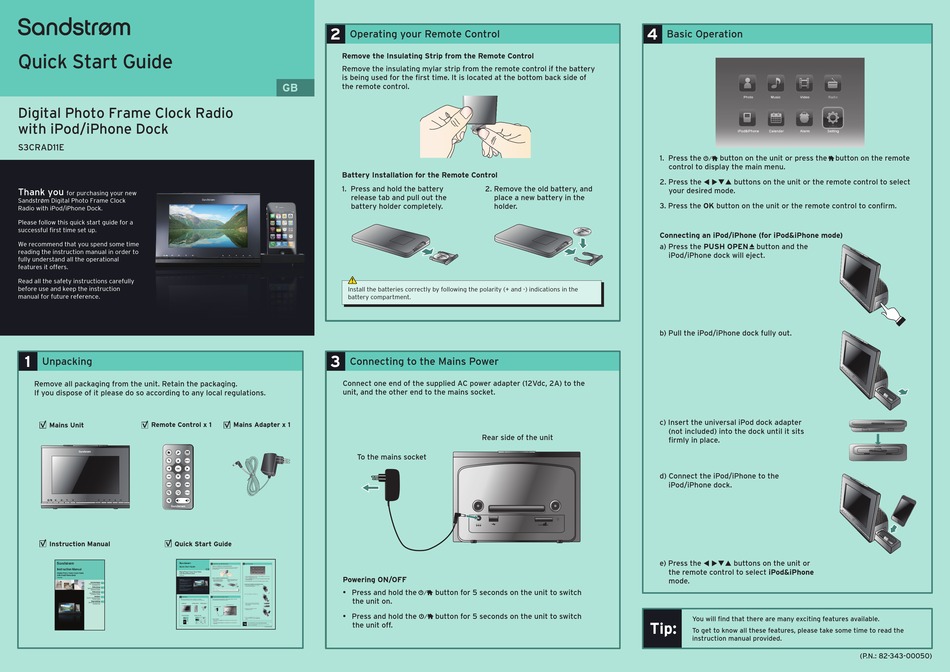

Sandstrom S3CRAD11E Quick Start Manual

Quick Start Guide
Digital Photo Frame Clock Radio
with iPod/iPhone Dock
S3CRAD11E
Thank you
for purchasing your new
Sandstr m Digital Photo Frame Clock
Ø
Radio with iPod/iPhone Dock.
Please follow this quick start guide for a
successful first time set up.
We recommend that you spend some time
reading the instruction manual in order to
fully understand all the operational
features it offers.
Read all the safety instructions carefully
before use and keep the instruction
manual for future reference.
1
Unpacking
Remove all packaging from the unit. Retain the packaging.
If you dispose of it please do so according to any local regulations.
Remote Control x 1
Mains Unit
Instruction Manual Quick Start Guide
2
Operating your Remote Control
Remove the Insulating Strip from the Remote Control
Remove the insulating mylar strip from the remote control if the battery
is being used for the first time. It is located at the bottom back side of
GB
the remote control.
Battery Installation for the Remote Control
1. Press and hold the battery
release tab and pull out the
battery holder completely.
Install the batteries correctly by following the polarity (+ and -) indications in the
battery compartment.
3
Connecting to the Mains Power
Connect one end of the supplied AC power adapter (12Vdc, 2A) to the
unit, and the other end to the mains socket.
Mains Adapter x 1
To the mains socket
Powering ON/OFF
• Press and hold the
the unit on.
• Press and hold the
the unit off.
2. Remove the old battery, and
place a new battery in the
holder.
Rear side of the unit
ANTENNA
FM
DC-IN-12V
button for 5 seconds on the unit to switch
button for 5 seconds on the unit to switch
4
Basic Operation
1. Press the button on the unit or press the
control to display the main menu.
2. Press the   buttons on the unit or the remote control to select
your desired mode.
3. Press the OK button on the unit or the remote control to confirm.
Connecting an iPod/iPhone (for iPod&iPhone mode)
a) Press the PUSH OPEN button and the
iPod/iPhone dock will eject.
b) Pull the iPod/iPhone dock fully out.
c) Insert the universal iPod dock adapter
(not included) into the dock until it sits
firmly in place.
d) Connect the iPod/iPhone to the
iPod/iPhone dock.
e) Press the buttons on the unit or
 
the remote control to select iPod&iPhone
mode.
You will find that there are many exciting features available.
Tip:
To get to know all these features, please take some time to read the
instruction manual provided.
button on the remote
(P.N.: 82-343-00050)
