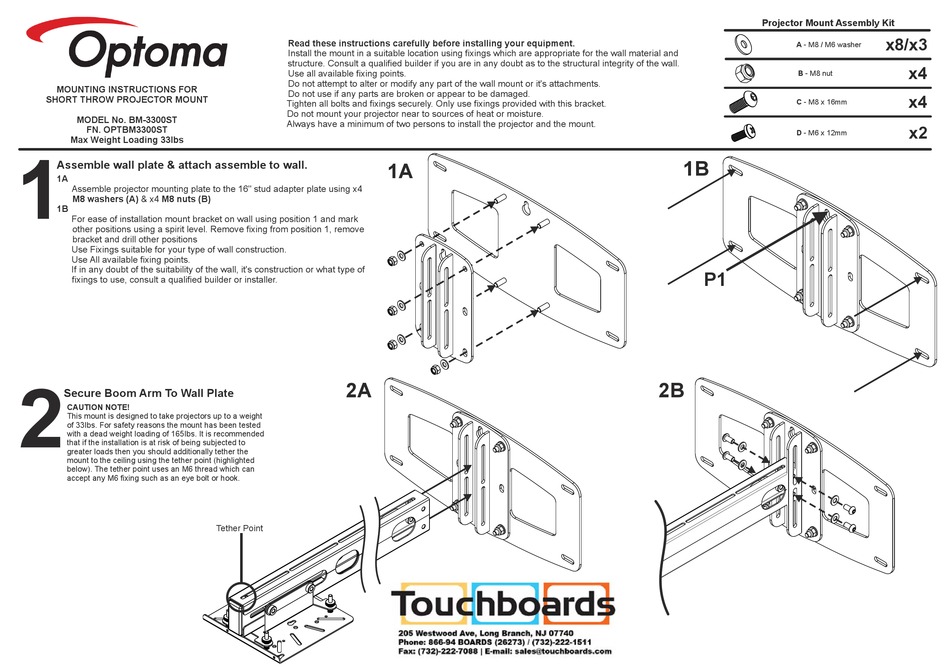

Optoma BM-3300ST Manual

MOUNTING INSTRUCTIONS FOR
SHORT THROW PROJECTOR MOUNT
MODEL No. BM-3300ST
FN. OPTBM3300ST
Max Weight Loading 33Ibs
1
Assemble wall plate & attach assemble to wall.
1A
Assemble projector mounting plate to the 16" stud adapter plate using x4
Ÿ
M8 washers (A) & x4 M8 nuts (B)
1B
For ease of installation mount bracket on wall using position 1 and mark
Ÿ
other positions using a spirit level. Remove fixing from position 1, remove
bracket and drill other positions
Use Fixings suitable for your type of wall construction.
Ÿ
Ÿ Use All available fixing points.
Ÿ If in any doubt of the suitability of the wall, it's construction or what type of
fixings to use, consult a qualified builder or installer.
2 Secure Boom Arm To Wall Plate
CAUTION NOTE!
This mount is designed to take projectors up to a weight
of 33Ibs. For safety reasons the mount has been tested
with a dead weight loading of 165Ibs. It is recommended
that if the installation is at risk of being subjected to
greater loads then you should additionally tether the
mount to the ceiling using the tether point (highlighted
below). The tether point uses an M6 thread which can
accept any M6 fixing such as an eye bolt or hook.
Read these instructions carefully before installing your equipment.
Ÿ
Install the mount in a suitable location using fixings which are appropriate for the wall material and
Ÿ
structure. Consult a qualified builder if you are in any doubt as to the structural integrity of the wall.
Ÿ Use all available fixing points.
Ÿ Do not attempt to alter or modify any part of the wall mount or it's attachments.
Ÿ Do not use if any parts are broken or appear to be damaged.
Tighten all bolts and fixings securely. Only use fixings provided with this bracket.
Ÿ
Do not mount your projector near to sources of heat or moisture.
Ÿ
Always have a minimum of two persons to install the projector and the mount.
Ÿ
1A
2A
Tether Point
Projector Mount Assembly Kit
A - M8 / M6 washer
B - M8 nut
C - M8 x 16mm
D - M6 x 12mm
1B
P1
2B
x8/x3
x4
x4
x2
