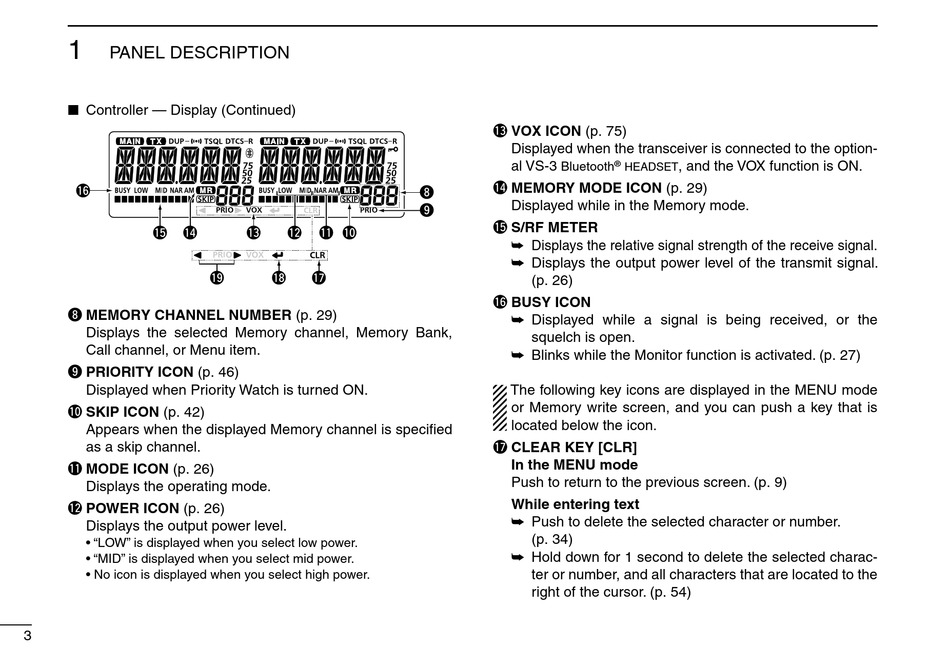

PANEL DESCRIPTION
■ Controller — Display (Continued)
!6
!5 !4
i MEMORY CHANNEL NUMBER (p. 29)
Displays the selected Memory channel, Memory Bank,
Call channel, or Menu item.
o PRIORITY ICON (p. 46)
Displayed when Priority Watch is turned ON.
!0 SKIP ICON (p. 42)
Appears when the displayed Memory channel is specified
as a skip channel.
!1 MODE ICON (p. 26)
Displays the operating mode.
!2 POWER ICON (p. 26)
Displays the output power level.
• "LOW" is displayed when you select low power.
• "MID" is displayed when you select mid power.
• No icon is displayed when you select high power.
3
!3 !2 !1 !0
!9 !8 !7
!3 VOX ICON (p. 75)
Displayed when the transceiver is connected to the option-
al VS-3
Bluetooth
!4 MEMORY MODE ICON (p. 29)
i
Displayed while in the Memory mode.
o
!5 S/RF METER
➥ Displays the relative signal strength of the receive signal.
➥ Displays the output power level of the transmit signal.
(p. 26)
!6 BUSY ICON
➥ Displayed while a signal is being received, or the
squelch is open.
➥ Blinks while the Monitor function is activated. (p. 27)
The following key icons are displayed in the MENU mode
or Memory write screen, and you can push a key that is
located below the icon.
!7 CLEAR KEY [CLR]
In the MENU mode
Push to return to the previous screen. (p. 9)
While entering text
➥ Push to delete the selected character or number.
(p. 34)
➥ Hold down for 1 second to delete the selected charac-
ter or number, and all characters that are located to the
right of the cursor. (p. 54)
, and the VOX function is ON.
®
headset
