i MONITOR•DUPLEX KEY [DUP MONI]
➥ Push to turn the Monitor function ON and OFF. (p. 27)
➥ Hold down for 1 second to display the duplex direction
setting screen. (p. 50)
o OUTPUT POWER•DTMF KEY [LOW DTMF]
➥ Push to select the transmit output power level. (p. 26)
➥ Hold down for 1 second to enter the DTMF Menu mode.
(p. 54)
!0 MEMORY WRITE KEY [MW]
In the VFO mode
➥ Push to display the Memory write screen. (p. 30)
➥ Hold down for 1 second to store the operating frequen-
cy into a blank Memory channel. (p. 30)
In the Memory mode
➥ Push to display the Memory entry screen. (p. 31)
!1 MENU LOCK KEY [MENU
➥ Push to enter the MENU mode.
➥ Hold down for 1 second to turn the Lock function ON
or OFF.
]

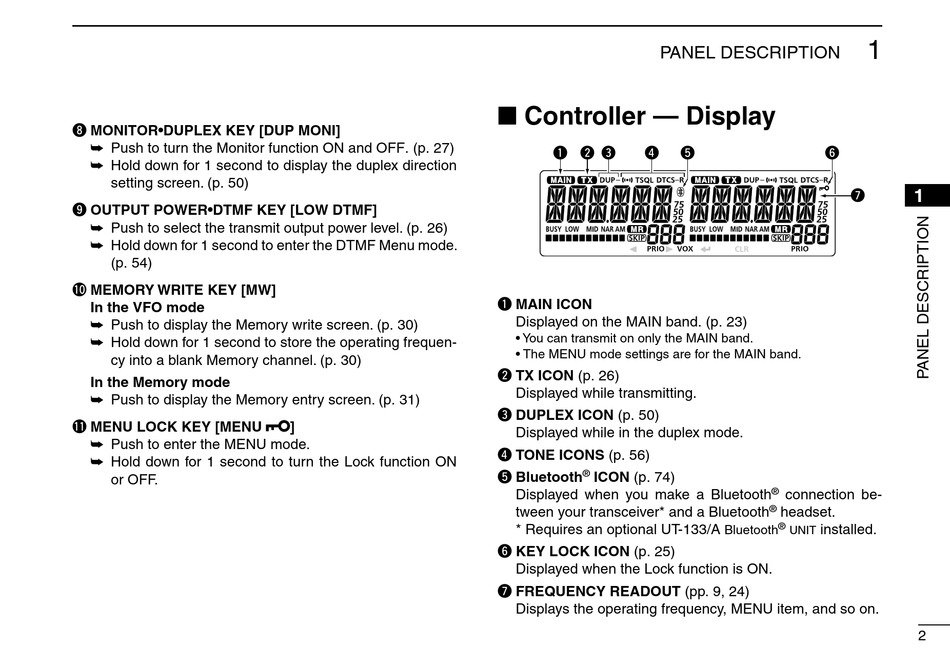

PANEL DESCRIPTION
■ Controller — Display
q w e r
q MAIN ICON
Displayed on the MAIN band. (p. 23)
• You can transmit on only the MAIN band.
• The MENU mode settings are for the MAIN band.
w TX ICON (p. 26)
Displayed while transmitting.
e DUPLEX ICON (p. 50)
Displayed while in the duplex mode.
r TONE ICONS (p. 56)
t Bluetooth ® ICON (p. 74)
Displayed when you make a Bluetooth
tween your transceiver* and a Bluetooth
* Requires an optional UT-133/A
y KEY LOCK ICON (p. 25)
Displayed when the Lock function is ON.
u FREQUENCY READOUT (pp. 9, 24)
Displays the operating frequency, MENU item, and so on.
t y
u
® connection be-
® headset.
® installed.
Bluetooth
unit
