2 CNX RS-232/422/485 Expansion Card: CNXCOM-2
CRESTRON

Physical Description

The CNXCOM-2, shown below, is a circuit board fastened to an aluminum
faceplate. The card is manufactured to easily fit into an unoccupied slot in a
Crestron CNX Generation Control System.

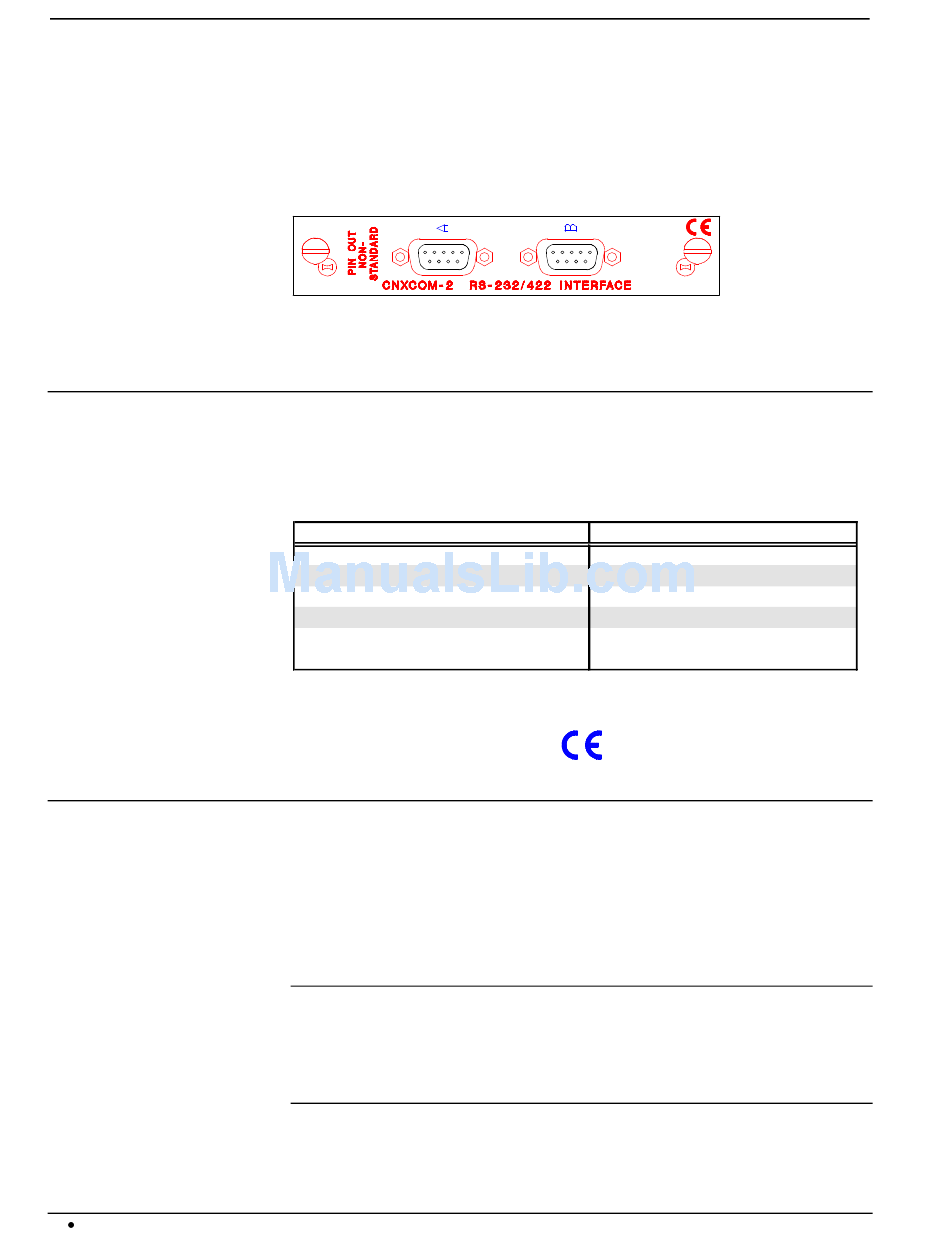

CNXCOM-2 Faceplate
The faceplate contains two identical bidirectional DB9 male connectors. Silk
screening is applied to the faceplate; connectors are labeled A and B.
The table below provides a summary of leading specifications for the CNXCOM-2.
Dimensions and weight are approximations rounded to the nearest hundredth unit.
Leading Specifications of the CNXCOM-2
SPECIFICATION
Power Requirements
SIMPL Windows
CNX Operating System
CNX Monitor
Dimensions
As of the date of manufacture, the unit has been tested and found to comply with
specifications for CE marking.

Installation

Items required to install the CNXCOM-2 are already attached to the unit. The only
tools required are a Phillips tip screwdriver and a grounding strap. Follow the
assembly procedure after this paragraph.
CAUTION: The CNXCOM-2 contains electrostatic sensitive devices (ESD);
observe precautions for handling ESDs to avoid damaging the card.
NOTE: If installing the CNXCOM-2 into a CNMSX-AV, it is assumed that the
CNXCAGE has been installed.
DETAILS
24 VDC, network power; 4 Watts
Version 1.20.04 or later
Version 5.01.21X or later
Version 2.05X or later
Height: 0.98 in (2.49 cm)
Width: 5.00 in (12.70 cm)
Operations Guide - DOC. 8123
