CRESTRON
version can be obtained from the Software Downloads page of Crestron's website
(www.crestron.com). New users are required to register in order to obtain access to
the FTP site.

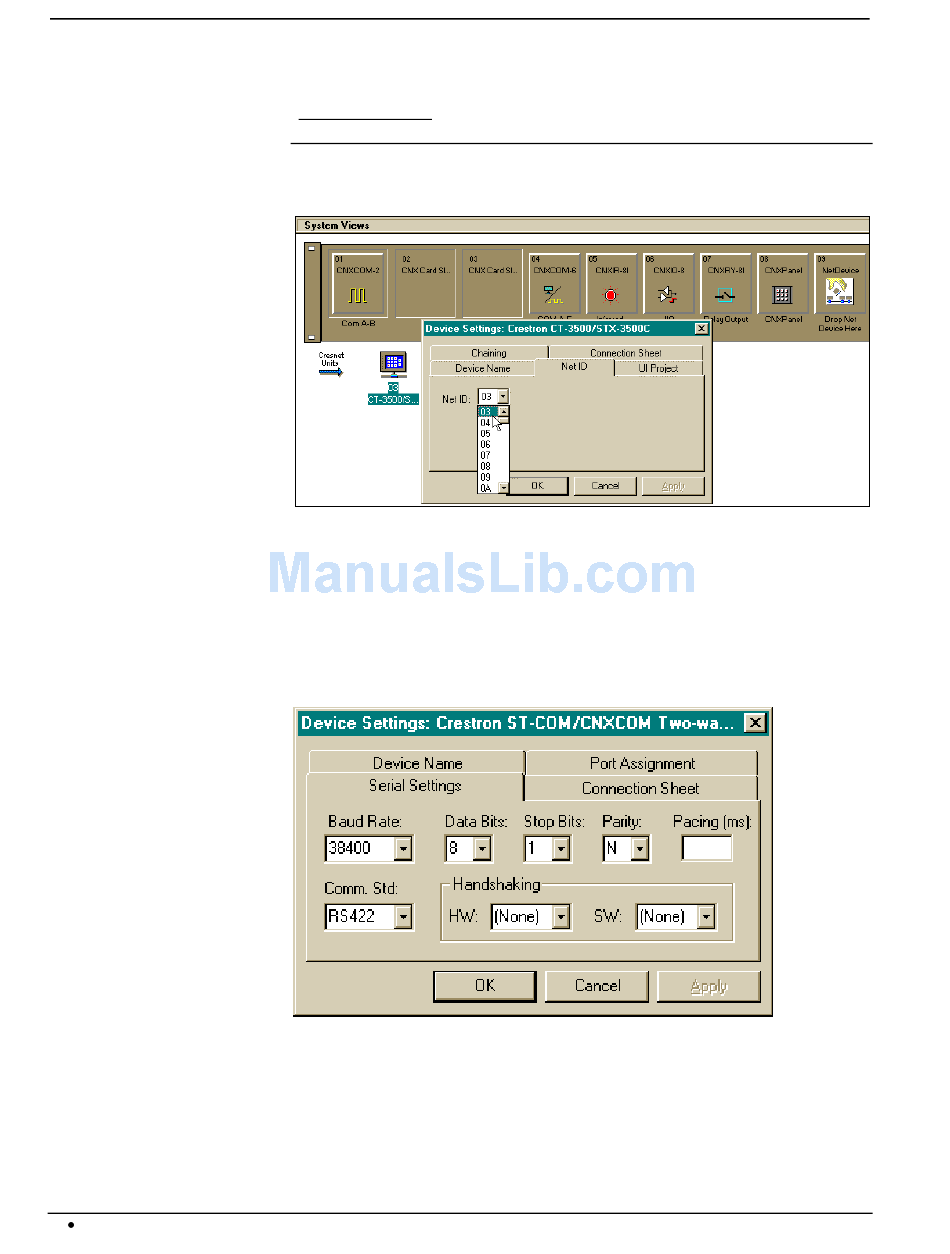

Graphical System View of CNXCOM-2 and CT-3500 in SIMPL Windows' Configuration
Manager
The lighting system communicates with port A of the CNXCOM-2 over RS-422
with 38400 N81 settings. These preferences for the port are set up in the
Configuration Manager. Click on the CNXCOM-2 in slot #1 of the CNMSX-PRO
to display the ports of the card in the Detail System View area of the Configuration
Manager. To assign the forementioned settings, double click on the white field in
port A. The "Device Settings" dialog box opens. Confirm the parameters, shown
below.
"Device Settings" Dialog Box
Use the Programming Manager workspace in SIMPL Windows to select symbols
and assign their respective signals. For this example, a touchpanel and CNXCOM-2
symbols were added automatically when the devices were added to the system in the
Configuration Manager workspace. Expand the Network Modules folder and double
click on the touchpanel for a detail view (alternatively CTRL+D or drag and drop
into Detail View). Assign signals as shown after this paragraph.
6 CNX RS-232/422/485 Expansion Card: CNXCOM-2 Operations Guide - DOC. 8123
