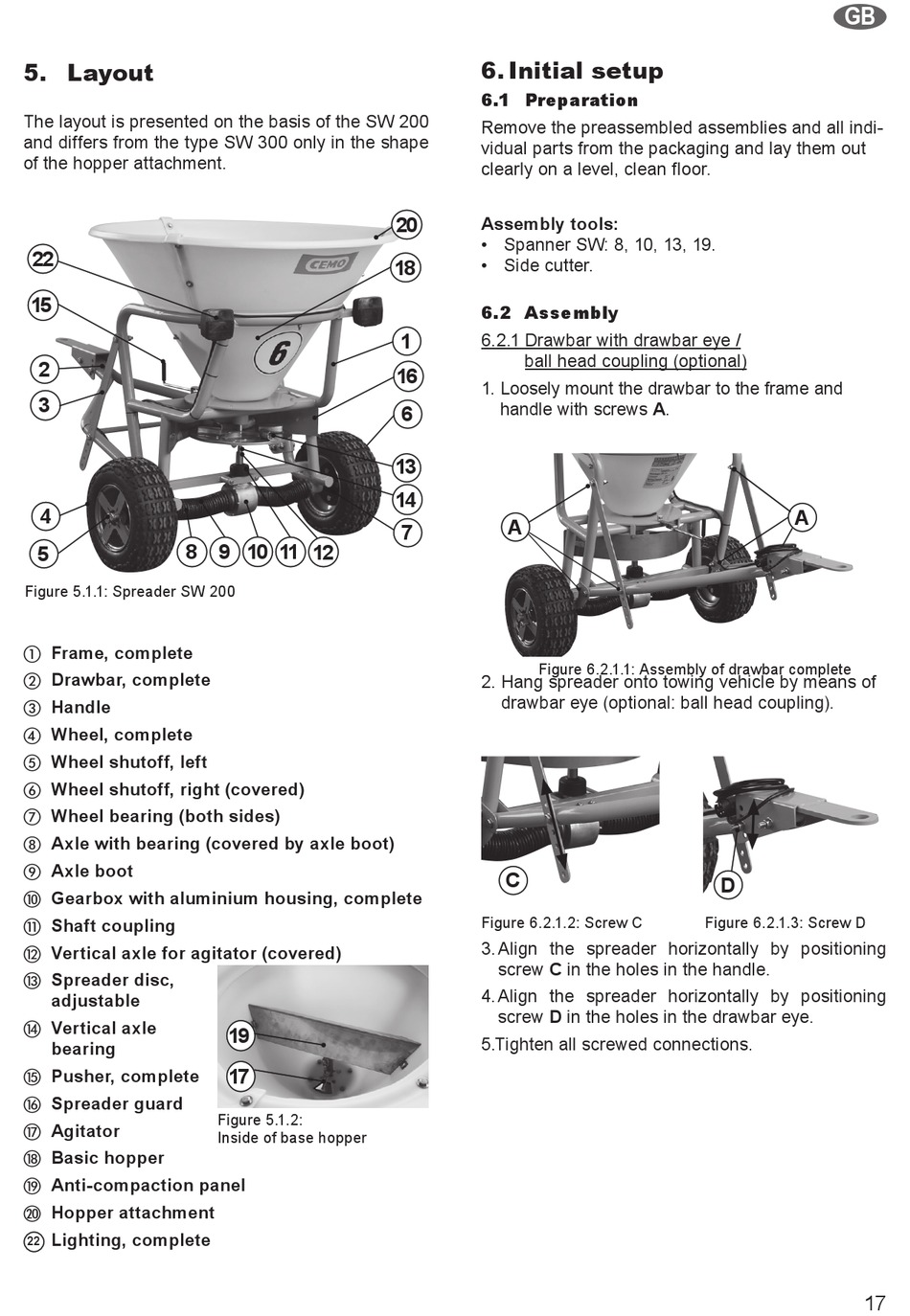

5. Layout

The layout is presented on the basis of the SW 200
and differs from the type SW 300 only in the shape
of the hopper attachment.
22
15
2
3
4
8
5
Figure 5.1.1: Spreader SW 200
a Frame, complete
b Drawbar, complete
c Handle
d Wheel, complete
e Wheel shutoff, left
f Wheel shutoff, right (covered)
g Wheel bearing (both sides)
h Axle with bearing (covered by axle boot)
 Axle boot
 Gearbox with aluminium housing, complete
 Shaft coupling
 Vertical axle for agitator (covered)
 Spreader disc,
adjustable
 Vertical axle
bearing
 Pusher, complete
 Spreader guard
 Agitator
 Basic hopper
 Anti-compaction panel

 Hopper attachment

Lighting, complete
22
9 10 11 12
19
17
Figure 5.1.2:
Inside of base hopper

6. Initial setup

6.1 Preparation

Remove the preassembled assemblies and all indi-
vidual parts from the packaging and lay them out
clearly on a level, clean floor.
20 Assembly tools:
• Spanner SW: 8, 10, 13, 19.
18 • Side cutter.

6.2 Assembly

1
6.2.1 Drawbar with drawbar eye /
ball head coupling (optional)
16
1. Loosely mount the drawbar to the frame and
handle with screws A.
6
13
14
A
7
Figure 6.2.1.1: Assembly of drawbar complete
2. Hang spreader onto towing vehicle by means of
drawbar eye (optional: ball head coupling).
C
Figure 6.2.1.2: Screw C
3. Align the spreader horizontally by positioning
screw C in the holes in the handle.
4. Align the spreader horizontally by positioning
screw D in the holes in the drawbar eye.
5.Tighten all screwed connections.
GB
A
D
Figure 6.2.1.3: Screw D
