Manusa PUSHBUTTON GRF-P Instruction Manual page 2

D00047EN - v0
Instructions Manual
PUSHBUTTON GRF-P
PUSHBUTTON GRF-PC
0 - INDEX
1. DESCRIPTION
2. TECHNICAL CHARACTERISTICS
3. INSTALLATION
4. OPERATING
5. PROGRAMMING
1 - DESCRIPTION
Transmitter via radio 868 Mhz.
Pushbutton (alternative) that it allows a communication
without cables with the receiver.

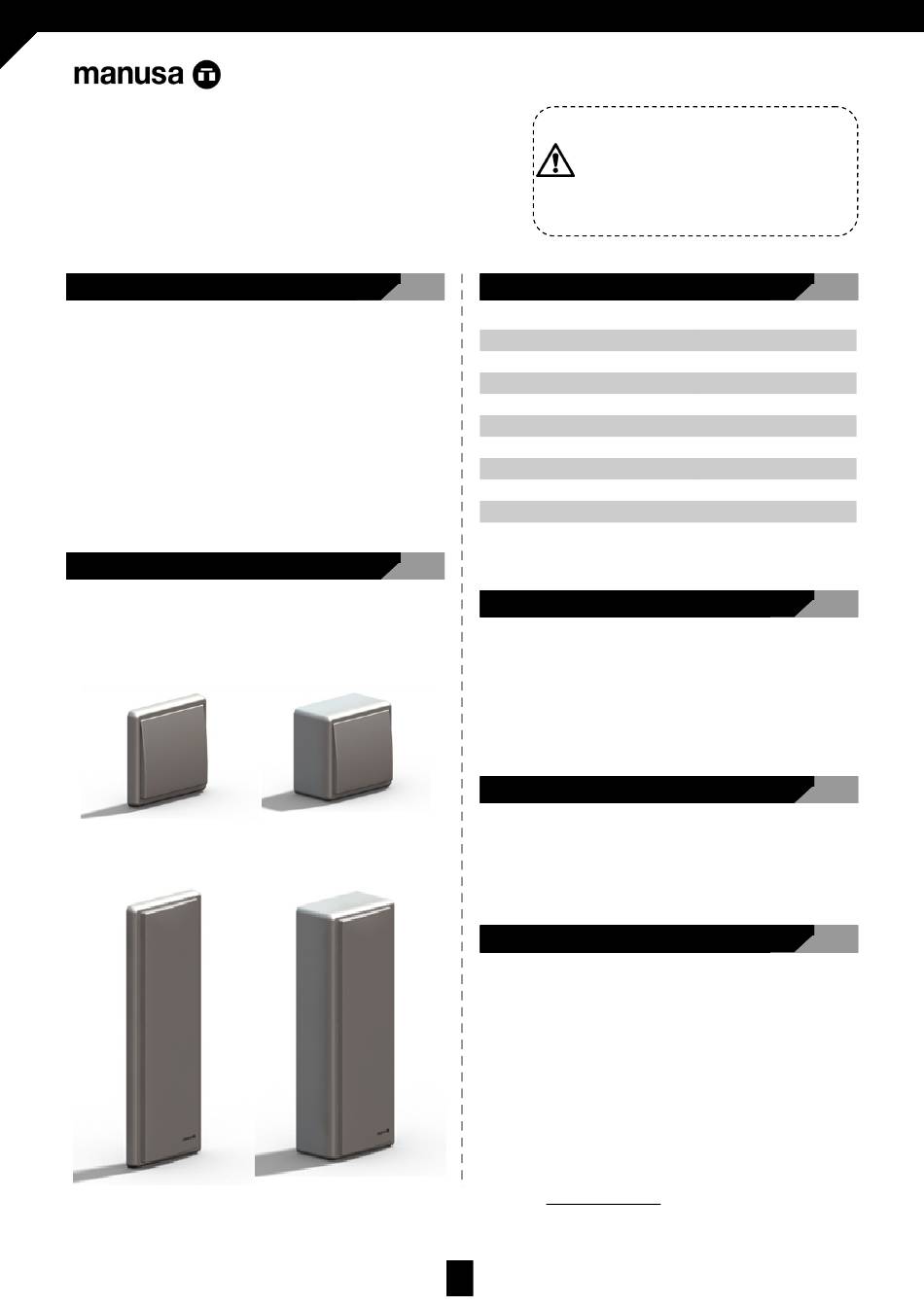

Pushbutton GRF-P Flush-mount
A02426 (white)
A02427 (silver)
Pushbutton GRF-PC Flush-M.
A02428 (white)
A02429 (silver)
Pushbutton GRF-P Surface
A02430 (white)
A02431 (silver)
Pushbutton GRF-PC Surface
A02432 (white)
A02433 (silver)
PUSHBUTTON GRF-P/GRF-PC - INSTRUCTIONS MANUAL
TRANSLATED DOCUMENT
Read this instruction manual before use.
In this manual you will find all the necessary
information for the correct use of the product.
Keep this manual in a safe place for later referral.
2 - TECHNICAL CHARACTERISTICS
Frequency
Power supply
Power consumption
Radiated power
Working temperature
Dimensions GRF-P F.-M.
Dimensions GRF-P Surf.
Dimensions GRF-PC F.-M.
Dimensions GRF-PC Surf.
3 - INSTALLATION
The device is formed by: mechanism, centre frame and
button (and box in the surface model).
The fixation becomes by means of two screws (not
provided with the product). Once mechanism (or box) fixed
to the wall, to place the frame and the button.
4 - OPERATING
Pushbutton like first channel.
The maximum time of emission for each activation if the
active pushbutton stays is of 10 seconds.
5 - PROGRAMMING
To open the programming of the receiver and to activate
the device, the receiver will emit an acoustic signal in
agreement a device has been kept
If 10 seconds without programming pass or making a short
pulsation of the programming pushbutton, the receiver will
leave the programming way, emitting two sonorous signals.
of 1s.
EC DECLARATION OF CONFORMITY
See web www.manusa.com
2
868,35MHz
3Vdc CR2032
12 mA
< 25mW
-20ºC to + 55ºC
81.5x80x15
81.5x80x50
80x223.5x15
80x223.5x50
