NOTE: During the next step, the four SEM (attached washer) screws must be
retained to install the CAGE2. However, the blank plate will not be reused.
4. Refer to the diagram below. Use a #2 Phillips screwdriver to remove
four rear-mounting SEM screws that secure the AV2 blank plate and
remove the plate.

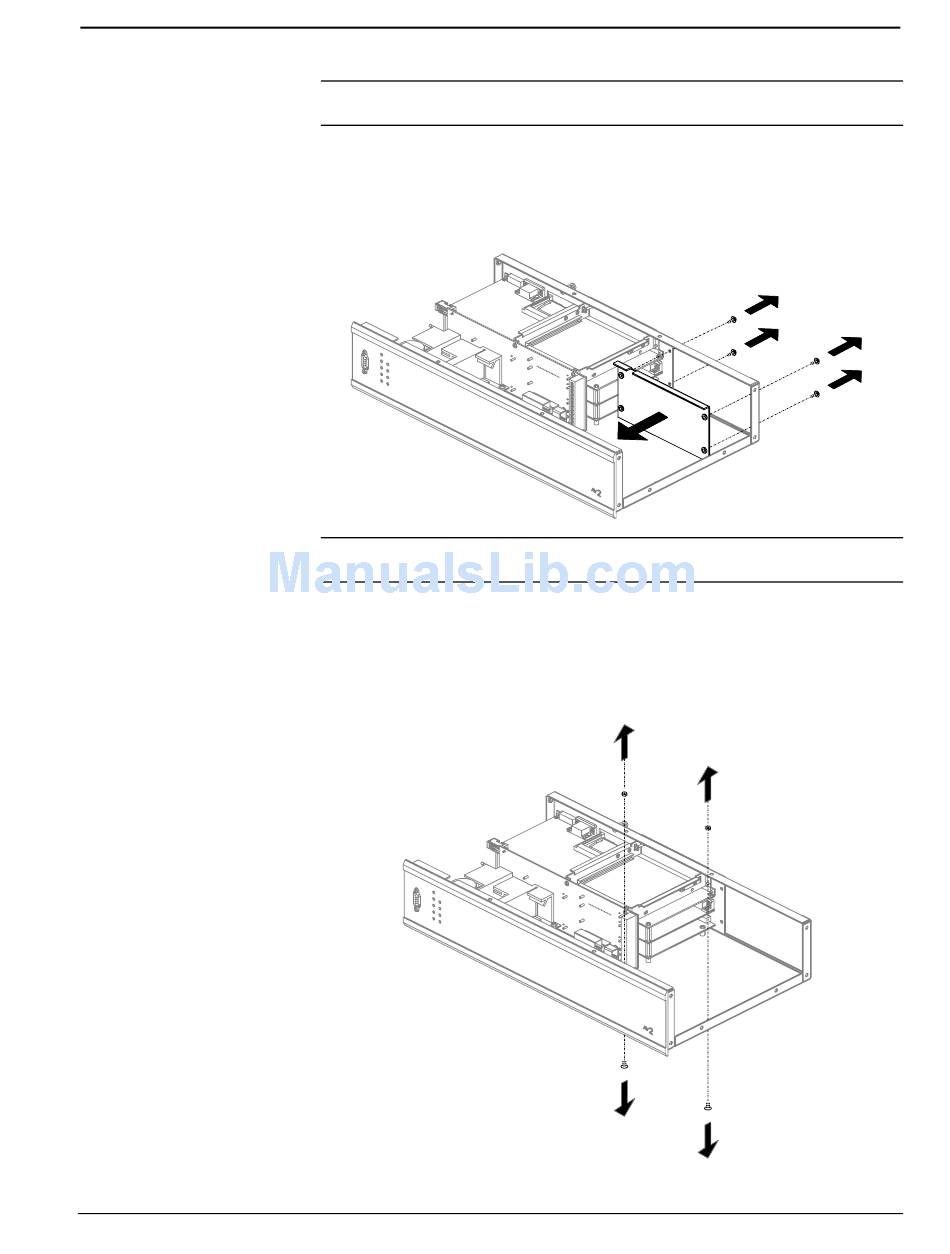

CAGE2 Installation (3 of 11) - Remove Rear-Mounting SEM Screws & AV2 Blank Plate
NOTE: During the next step, the two screws must be retained to install the CAGE2.
However, the two nuts will not be reused.
5. Refer to the diagram below. From inside the AV2, use a 1/4-in hex-
driver or wrench to hold the nut of one of the bottom-mounting screws.
From the underside of the AV2, use a #2 Phillips screwdriver to
remove the mounting screw. Repeat for second nut and screw.
CAGE2 Installation (4 of 11) - Remove Bottom-Mounting Screws & Nuts
