CT
Gavita
®
1
Introduction
Thank you for purchasing the Gavita
Mounting and installation of the LED fixture may only be executed by certified service personnel. Please read and understand
this manual completely before using the product. Only use the product as specified in this manual.
1.1
Used Symbols
Warning! A warning indicates severe damage to the user and/or product may occur when a procedure is not carried
out as described.
Caution! A caution sign indicates problems may occur if a procedure is not carried out as described. It may also serve
as a reminder to the user.
Note: A note gives additional information, e.g. for a procedure.
This symbol is an internationally recognized symbol used to designate recyclable materials.
This symbol is a certification mark employed on electronic products manufactured or sold in the United States.
The Federal Communications Commission regulates electromagnetic interference in the United States.
ETL is an independent third party product testing company which performs a variety of testing, including recognized
safety standards.
This symbol on material, accessories or packaging indicates that this product may not be discarded as household
waste. By properly disposing the equipment, you will be helping to prevent possible risks to the environment and public
health, which might otherwise be caused by improper handling of the discarded equipment. Recycling of materials
contributes to the conservation of natural resources. Therefore, please do not dispose of old electronics and electrical
appliances via household waste.
This symbol indicates the minimum distance (B) between the LED fixture (A) and the lit surface.
2
Product description

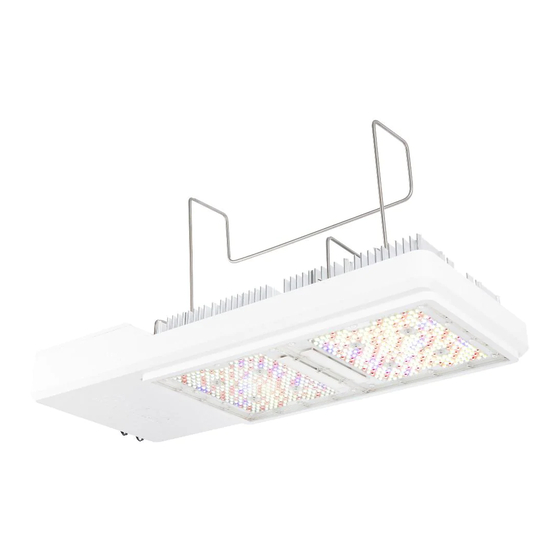

The Gavita
CT 1930e LED is an electronic horticultural LED fixture. The Gavita CT 1930e LED is intended to be used in
®
greenhouses or in climate rooms. In this manual, the Gavita CT 1930e LED will be referred to as: "the LED fixture".
1930e LED 120-277 V
CT 1930e LED. This manual describes mounting, installation and how to use the product.
®
1

Advertisement

Table of Contents
loading

Related Manuals for Gavita CT 1930e

Summary of Contents for Gavita CT 1930e

  • Page 1 CT 1930e LED is an electronic horticultural LED fixture. The Gavita CT 1930e LED is intended to be used in ® greenhouses or in climate rooms. In this manual, the Gavita CT 1930e LED will be referred to as: “the LED fixture”.

  • Page 2: Product Information And Specifications

    The product is intended to be used in greenhouses and climate rooms. The product can be used in wet environments. The product may not be used outdoors. A mechanical ventilation or cooling system is required to maintain the temperature within the growing space below 131° F / 55° C when the Gavita CT 1930e is in operation. Compliance This device complies with Part 15 Class A (Nonconsumer) of the FCC Rules.

  • Page 3: Safety Recommendations And Warnings

    The minimum distance between adjacent lighting equipment is 4 inches (10.16 cm). The minimum distance between lighting equipment and combustible materials is 4 inches (10.16 cm). Contents (1) Gavita CT 1930e LED Mounting brackets (2x) 1-5/8" Unistrut Hanger Safety wire Power cord sold separately).

  • Page 4: Installation

    Installation Warning! Mounting and installation of the LED fixture may only be executed by certified service personnel, in accordance with applicable local laws and regulations. Warning! The installer is responsible for correct and safe installation. Warning! Ensure the local cabling can support the voltage and current requirements of the LED fixture. Warning! Avoid coiled cords and keep mains leads separated.
  • Page 5 4-3/16" Preparation for use with a controller Using a daisy-chain setup, a maximum of 100 LED fixtures can be connected to each controller channel. Up to 500 LED fixtures can be connected with the use of splitters. Refer to Section 7.4. Using the Fixture: Without a Controller The included dummy plug on the input of the first fixture will ensure continuous operation at 100% output.
  • Page 6 With our Controller HGC906121 Gavita Master Controller EL2 - Gen 2 Remove the cable gland assembly. Remove the dummy plug from the Input terminal (save for future use). Refer to Section 7.4 to assemble the water tight cable gland assembly over the Input cable to the first fixture of your continuous chain.
  • Page 7 • Switch off main power. • Connect the power cable to the mains. The Gavita CT 1930e LED 120-240 V power cables connect to a NEMA Receptacle. ® The Gavita CT 1930e LED 277 V uses an open-end cable. ®...

  • Page 8: Inspection, Maintenance And Repair

    1-888-478-6544 or writing Hawthorne at: Hawthorne Hydroponics LLC, 3204 NW 38th Circle, Vancouver, WA 98660., Attn: Customer Service. Manufactured for Hawthorne Hydroponics LLC, a subsidiary of The Hawthorne Gardening Company, 3204 NW 38th Circle, Vancouver, WA 98660 HawthorneGC.com | Canada: HawthorneGC.ca | +1-360-883-8846 | info@gavita.com ©2020 World rights reserved. 201021al...
