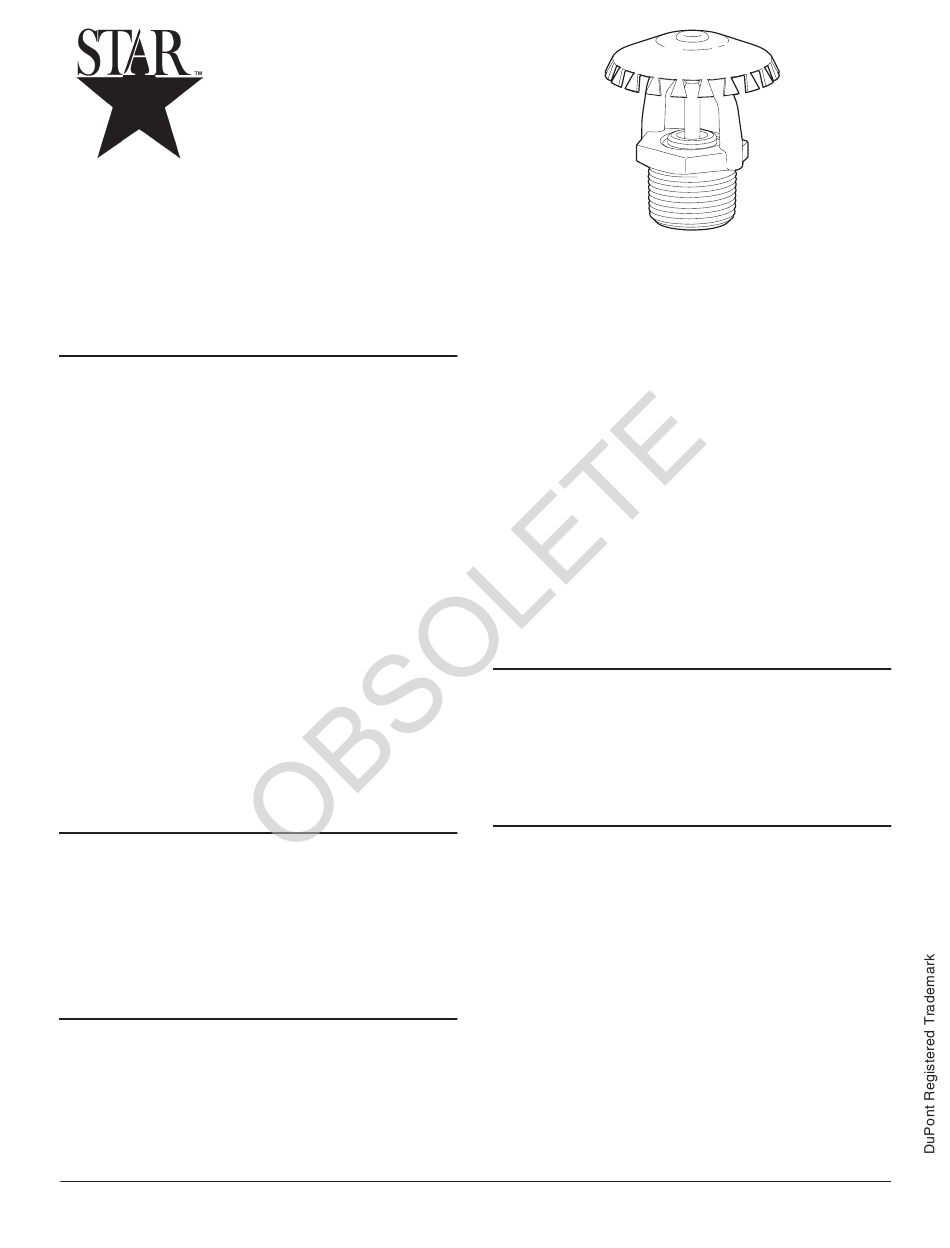

Tyco Fire Product Star Pulsar S195 Instruction Manual

Large Drop Sprinkler,
Standard Response,
Pulsar™ S195 Upright, K=11.2

GENERAL DESCRIPTION

The Star Pulsar S195, 11.2 K-Factor, Upright Large Drop
Sprinklers are glass bulb type automatic sprinklers. They
are intended for use with National Fire Protection Associa-
tion and Factory Mutual Research Corporation "large
drop sprinkler" installation criteria for the protection of
high piled storage. The Pulsar S195 Sprinklers can pro-
vide a higher level of protection than standard spray sprin-
klers and, in some cases, they can provide an economic
advantage by eliminating in-rack sprinklers.

WARNINGS

The Pulsar S195 Upright Large Drop Sprinklers de-
scribed herein must be installed and maintained in compli-
ance with this document, as well as with the applicable
standards of the National Fire Protection Association, in
addition to the standards of any other authorities having
jurisdiction (e.g., Factory Mutual Research Corporation).
Failure to do so may impair the integrity of these devices.
The owner is responsible for maintaining their fire protec-
tion system and devices in proper operating condition.
The installing contractor or sprinkler manufacturer should
be contacted relative to any questions.

OPERATION

The glass bulb contains a fluid which expands when ex-
posed to heat. When the rated temperature is reached,
the fluid expands sufficiently to shatter the glass bulb,
which then allows the sprinkler to activate and flow water.

TECHNICAL DATA

Approvals
FM Approved.
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
3/4 inch NPT
TYCO FIRE PRODUCTS
Customer Service/Sales: Tel: (800) 558-5236 • Fax: (414) 570-5010
Technical Services: Tel: (800) 381-9312 • Fax: (800) 791-5500
SIN S8020
Discharge Coefficient
1/2
K = 11.2 GPM/psi (161,3 LPM/bar
Temperature Ratings
155°F/68°C, 200°F/93°C, or 286°F/141°C
Finish
Natural Brass
Physical Characteristics (Ref. Figure 1)
The Pulsar S195 utilizes a dezincification resistant (DZR)
bronze frame, a brass button, and a 5 mm bulb. The gas-
keted spring plate consists of a beryllium nickel disc
spring that is sealed on both its inside and outside edges
with a Teflon V gasket. The compression screw is bronze,
and the deflector is brass.

DESIGN CRITERIA

The 11.2 K-Factor, Pulsar S195 (SIN S8020) Upright
Large Drop Sprinklers are only for use with National Fire
Protection Association and Factory Mutual Research Cor-
poration "large drop sprinkler" installation criteria.

INSTALLATION

NOTES

Do not install any bulb type sprinkler if the bulb is
cracked or there is a loss of liquid from the bulb. With the
sprinkler held horizontal, an approximate 1/16 inch (1,6
mm) diameter air bubble should be present.
A leak tight 3/4 inch NPT sprinkler joint should be ob-
tained with a torque of 10 to 20 ft.lbs. (13,4 to 26,8 Nm).
Higher levels of torque may distort the sprinkler inlet with
consequent leakage or impairment of the sprinkler.
The Pulsar S195 Upright Large Drop Sprinklers must only
be installed in the upright position. With pipe thread
sealant applied to the pipe threads, wrench tighten the
Pulsar S195 by using only the W-Type 3 (End B) Sprinkler
Wrench. The W-Type 3 is to be applied to the sprinkler
wrench flats only.
