TYCO FIRE PRODUCTS, 7071 S. 13th Street, Suite 103 Oak Creek, WI 53154 — www.gemsprinkler.com
HOR. & REC. HOR. SIDEWALL SPRINKLERS, RESIDENTIAL
MODEL F685 DESIGNER, BULB TYPE, 3.5 K-FACTOR, 155°F & 175°F
GENERAL DESCRIPTION
The 3.5 K-factor, Model F685 Designer
Residential Horizontal and Recessed
Horizontal Sidewall Sprinklers (Ref.
Figure A) are automatic sprinklers of
the frangible bulb type. They are to be
used in
• wet pipe residential sprinkler sys-
tems for one- and two-family dwell-
ings and mobile homes per NFPA
13D,
• wet pipe residential sprinkler sys-
tems for residential occupancies up
to four stories in height per NFPA
13R, and
• wet pipe sprinkler systems for the
residential portions of any occu-
pancy per NFPA 13.
They are designed for installation
along a wall or lintel and just beneath
a smooth and level ceiling. Horizontal
sidewall sprinklers are generally used
in lieu of pendent or upright sprinklers
because of aesthetic, building con-
struction, or installation economy con-
siderations.
The recessed versions of the Model
F685 Sprinkler are obtained by utiliz-
ing the Model F705 Recessed Es-
cutcheon (Ref. Figures A and B-2). The
F705 Recessed Escutcheon provides
1/4 inch (6,4 mm) of recessed adjust-
ment or up to 1/2 inch (12,7 mm) of
total adjustment from the flush sidewall
position.
The F705 has a separable two-piece
design which allows installation of the
sprinklers and pressure testing of the
fire protection system, prior to wall
construction and/or application of a fin-
ish coat to the wall. They also permit
refinishing of a wall surface without
having to first shut down the fire pro-
tection system and remove the sprin-
klers.
The F685 Sprinklers have been de-
signed to operate with a particular tem-
perature rating and heat responsive
thermal characteristic, as well as to
discharge water in a specific pattern
and quantity per square foot relation-
ship. The combination of the perform-
ance characteristics which are associ-
ated with the F685 Sprinklers have
Printed in U.S.A. 7-02
Customer Service/Sales: Tel: (800) 558-5236 / Fax: (800) 877-1295
Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500

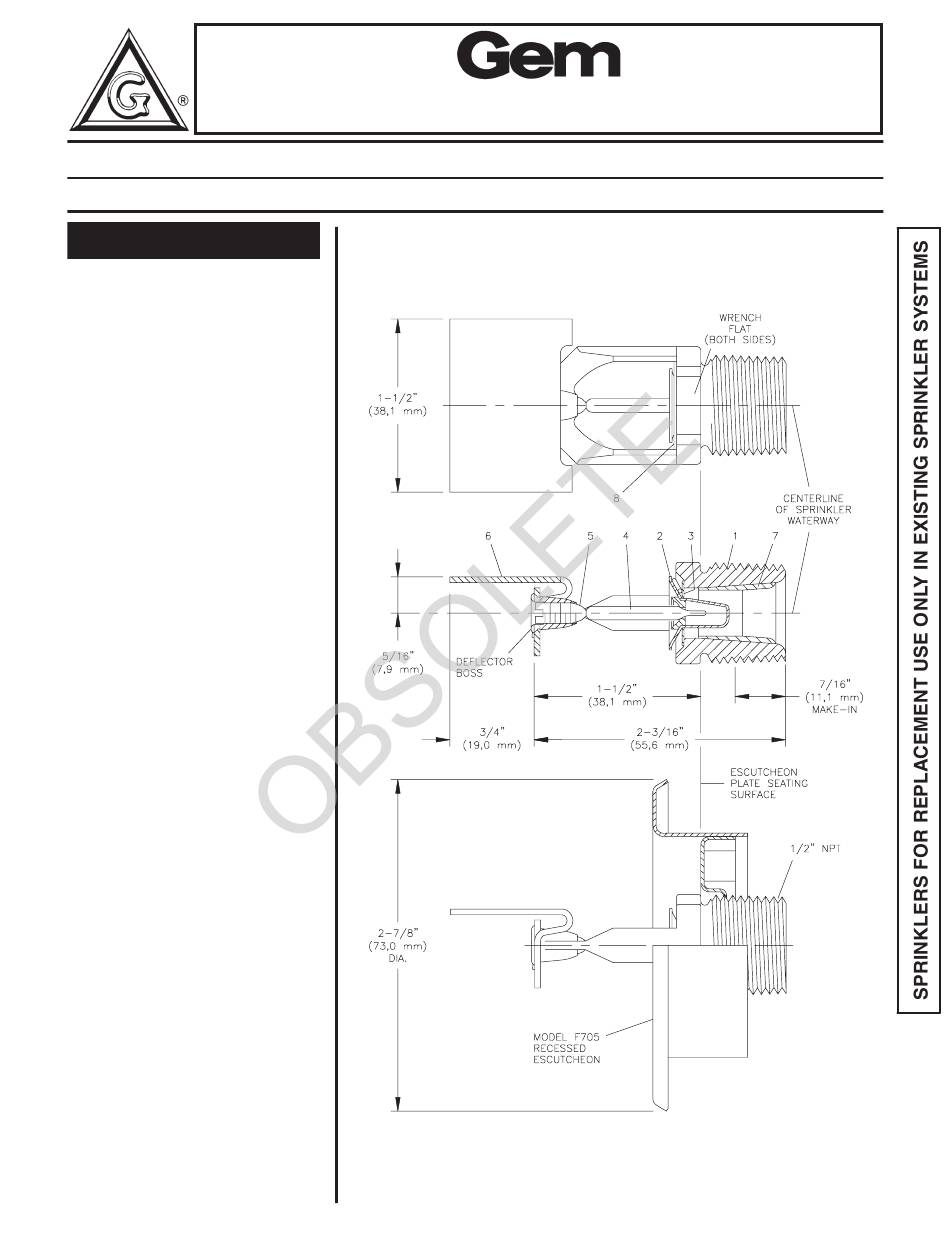

Components:
1 - Frame
2 - Button Assembly
3 - Gasketed Spring Plate
3.5 K-FACTOR MODEL F685 (SIN G1685) RESIDENTIAL
HORIZONTAL AND RECESSED HORIZONTAL
4 - Bulb
5 - Compression Screw
6 - Deflector
FIGURE A
SIDEWALL SPRINKLERS
7 - Bushing
8 - Ejection Spring
TD587F
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tyco Fire Product Gem F685
Summary of Contents for Tyco Fire Product Gem F685
- Page 1 TYCO FIRE PRODUCTS, 7071 S. 13th Street, Suite 103 Oak Creek, WI 53154 — www.gemsprinkler.com Customer Service/Sales: Tel: (800) 558-5236 / Fax: (800) 877-1295 Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500 HOR. & REC. HOR. SIDEWALL SPRINKLERS, RESIDENTIAL MODEL F685 DESIGNER, BULB TYPE, 3.5 K-FACTOR, 155°F &...
- Page 2 MINIMUM MINIMUM NOTES: SINGLE MULTIPLE SPRINKLER SPRINKLER (a) Wet pipe fire sprinkler systems in the W x L TEMP FLOW FLOW residential portions of any occupancy APPLICATION FT x FT °F GPM (psi) GPM (psi) INCHES FEET per NFPA 13 (see Note d), in one- and two- family dwellings and mobile homes per NFPA 13D, or residential occupan- 12 x 12...
- Page 3 FIGURE B-1 TYPICAL INSTALLATION USING A STANDARD ESCUTCHEON FULLY RECESSED DIMENSIONS† Up to 1/4 inch adjustment from minimum 1/4 inch to maximum 1/2 inch recessed position. Dim. Inches 1/2†† 12,7 B-Min. 25,4 B-Nom. 1-1/8 28,6 B-Max. 1-1/4 31,8 C-Min. C-Max. 12,7 HIGH ADJUSTMENT DIMENSIONS...
- Page 4 Only use escutcheons which con- 13D, NFPA 13R, or by the GENERAL TECHNICAL DATA sist of metallic materials that authority having jurisdiction. will not deform or dislodge at a Sprinkler Assemblies: temperature less than General Service Conditions. The The 3.5 K-factor, Model F685 Designer 1200°F/649°C and/or which have F685 Sprinklers must only be utilized Residential Horizontal Sidewall Sprin-...
- Page 5 separating adjacent sprinkler coverage areas. It is recommended that as part of the sprinkler system design, the designer review the dwelling plans and, where appropriate, advise the owner or his representative as to the following. I. Lintels of at least 3 inches in height and preferably 8 inches should be used over all passageways from one space to another, in order to reduce...
- Page 6 INSTALLATION NOTES Residential Fire Sprinkler Sys- tems should only be designed and installed by those competent and completely familiar with auto- matic sprinkler system design, in- stallation procedures, and tech- niques. The Technical Data Department should be contacted relative to FIGURE E any questions.
- Page 7 placed with pendent sprinklers which CARE AND MAINTENANCE LIMITED WARRANTY are listed for residential fire protection service and which have the same The Model F685 Sprinklers must be Products manufactured by Tyco Fire nominal K-factor, the same coverage maintained and serviced in accord- Products are warranted solely to the area, and the same or lower flow rat- ance with the following instructions:...
- Page 8 ORDERING PROCEDURE A Product Symbol Number (PSN) is not specified when ordering polyester coated Model F685 Sprinklers with other than a white color or when order- ing color coated F705 Recessed Es- cutcheons with other than white color. It is suggested that a color chip be provided when ordering special color finishes.
