Dry Pendent Sprinklers
Luminous™ S170, 3 mm Bulb
GENERAL DESCRIPTION
The Star Luminous S170, 5.6 K-Factor, Quick Response,
Standard Coverage, Dry Pendent Sprinklers are decora-
tive glass bulb automatic sprinklers designed for use
• where pendent sprinklers are required on dry pipe sys-
tems that are exposed to freezing temperatures (e.g.
sprinkler drops from unheated portions of buildings), or
• where sprinklers and/or a portion of the connecting piping
may be exposed to freezing temperatures (e.g. sprinkler
drops from wet systems into freezers), or
• where pendent sprinklers are used on systems that are
seasonably drained to avoid freezing (e.g. vacation resort
areas).
The Luminous S170, 3 mm Bulb, Dry Pendent Sprinklers
are "quick response - standard orifice spray sprinklers"
and are available in a wide range of operating tempera-
tures and order lengths. The Luminous S170 Sprinklers
are intended for use in fire sprinkler systems designed in
accordance with the standard installation rules recog-
nized by the applicable Listing or Approval agency (e.g.,
UL Listing is based on NFPA 13 requirements). They pro-
duce a hemispherical water discharge pattern below the
deflector.
The Recessed, Standard, and Deep Ceiling Escutcheons
for the Luminous S170 are separable two-piece designs
which allow installation of the sprinklers and pressure
testing of the fire protection system prior to installation of
a suspended ceiling. They also permit removal of sus-
pended ceiling panels without having to first shut down
the fire protection system and remove the sprinklers.
WARNINGS
The Luminous S170 Quick Response, Dry Pendent Sprin-
klers described herein must be installed and maintained
in compliance with this document, as well as with the ap-
plicable standards of the National Fire Protection Associa-
tion, in addition to the standards of any other authorities
having jurisdiction. Failure to do so may impair the integ-
rity of these devices.
The owner is responsible for maintaining their fire protec-
tion system and devices in proper operating condition.
The installing contractor or sprinkler manufacturer should
be contacted relative to any questions.
TYCO FIRE PRODUCTS
Customer Service/Sales: Tel: (800) 558-5236 • Fax: (414) 570-5010
Technical Services: Tel: (800) 381-9312 • Fax: (800) 791-5500
SIN S3240

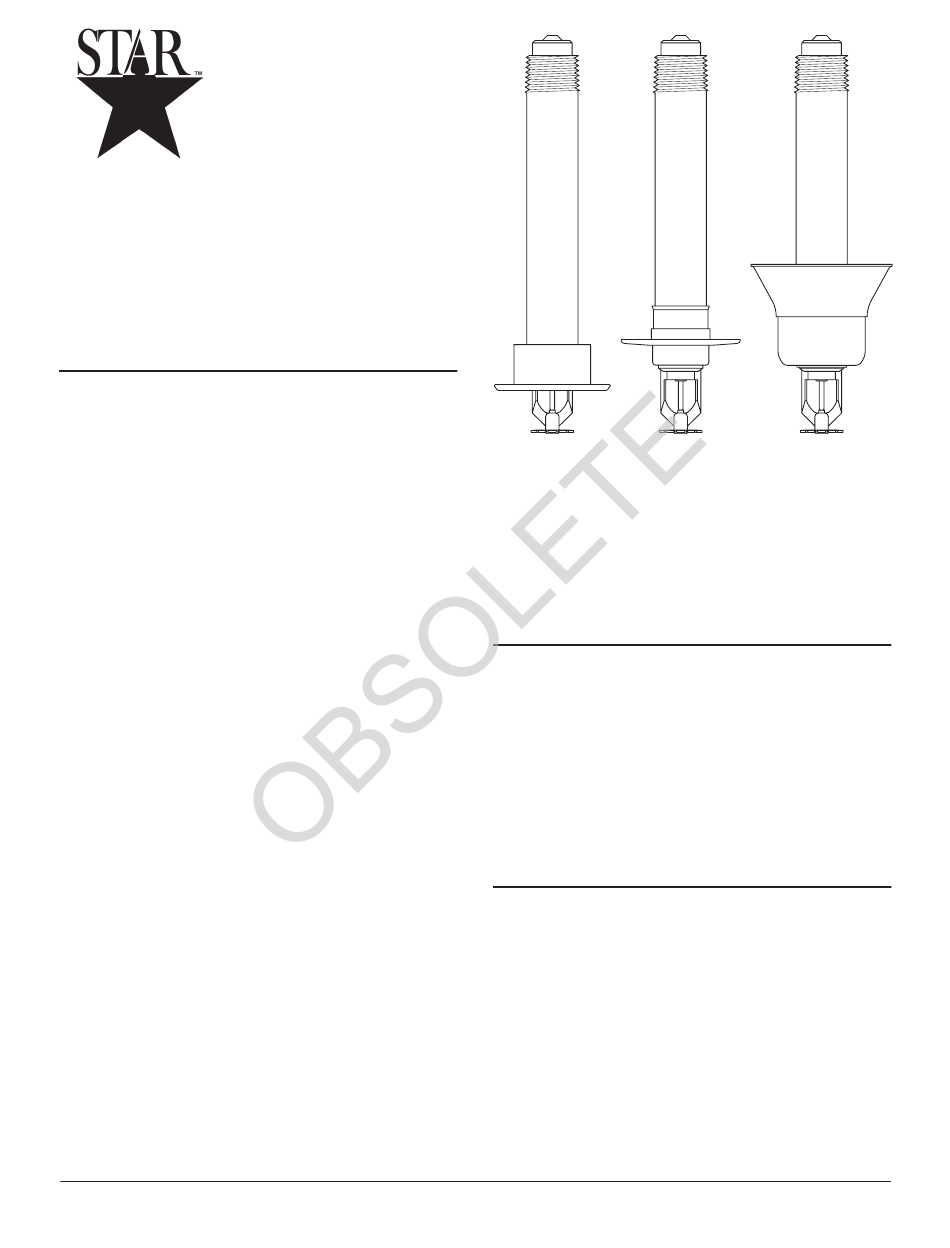

w/Recessed w/Standard
Escutcheon
Escutcheon
The Luminous S170 Quick Response, Dry Pendent Sprin-
klers must only be installed in fittings that meet the re-
quirements of the Design Criteria section.
OPERATION
When the Luminous S170 is in service, water is pre-
vented from entering the assembly by the Plug & O-ring
(Ref. Figure 2) in the Inlet of the Sprinkler. The glass Bulb
contains a fluid which expands when exposed to heat.
When the rated temperature is reached, the fluid expands
sufficiently to shatter the glass Bulb, and the Bulb Seat is
released. The compressed Spring is then able to expand
and push the Water Tube as well as the Guide Tube out-
ward. This action simultaneously pulls inward on the
Yoke, withdrawing the Plug & O-ring from the Inlet, which
then allows the sprinkler to activate and flow water.
TECHNICAL DATA
Approvals
UL and ULC Listed. FM Approved.
NYC Approved (MEA 212-98-E).
(Refer to Table A.)
Maximum Working Pressure
175 psi (12,1 bar)
Discharge Coefficient
1/2
K = 5.6 GPM/psi (80,6 LPM/bar
Temperature Ratings
Pendent: 135°F/57°C to 286°F/141°C
Recessed Pendent: 135°F/57°C to 200°F/93°C
(Refer to Table A)
w/Deep Ceiling
Escutcheon
1/2
)
1-6.2.21
