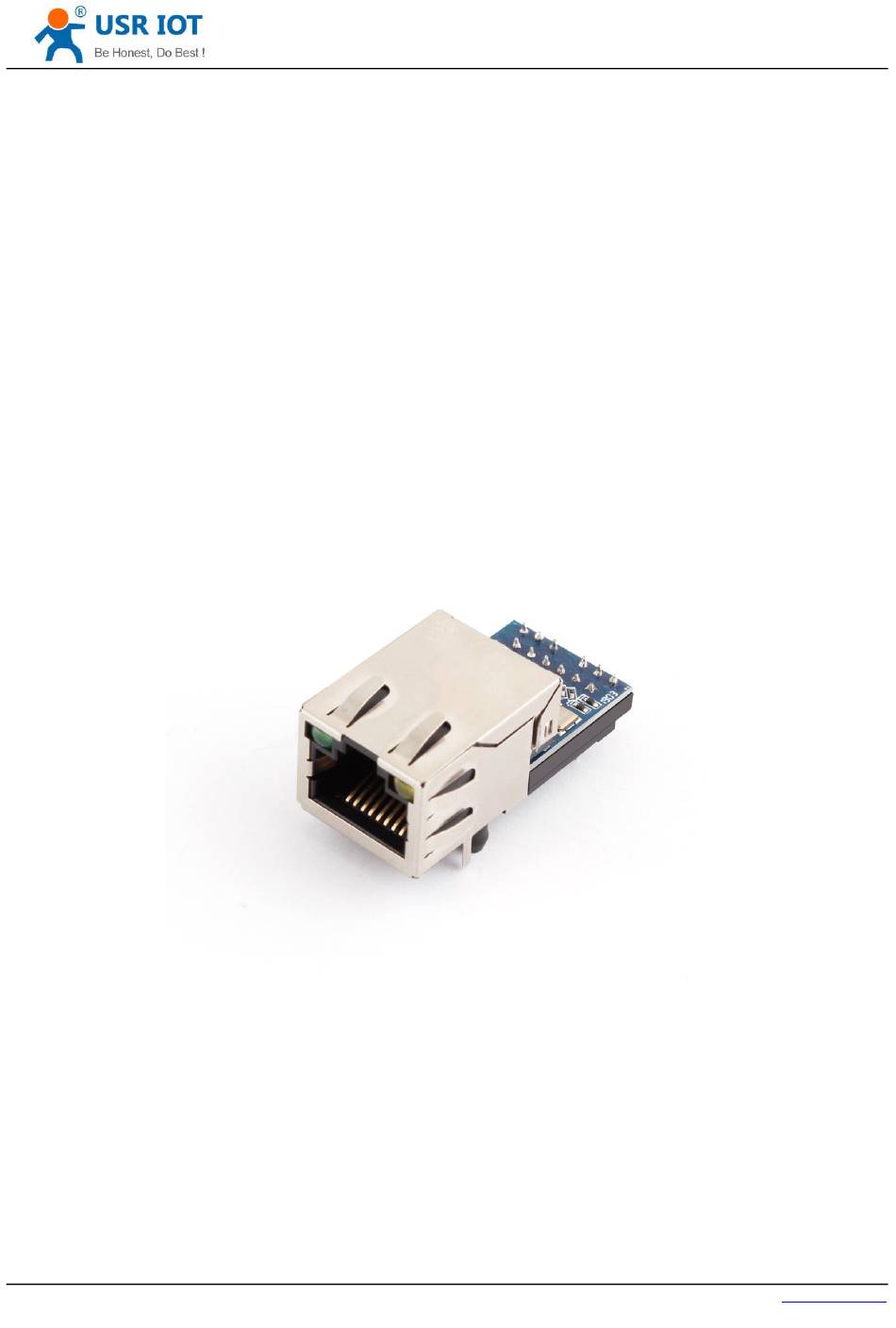

Page 1: Usr-K5 Integration Guide
USR-K5 Integration Guide Technical Support:h.usriot.com USR-K5 INTEGRATION GUIDE File Version：V1.0.1 Jinan USR IOT Technology Limited www.usriot.com... -
Page 2: Table Of Contents
4. The suits for development............................7 5. Hardware reference design............................8 5.1.Hardware connections are typically applied, as shown in figure 5..............8 5.2.power interface..............................8 5.3.UART interface............................... 9 5.4.Reference to encapsulate..........................10 6. Contact information...............................11 7. Disclaimer................................12 Jinan USR IOT Technology Limited www.usriot.com... -
Page 3: Product Overview

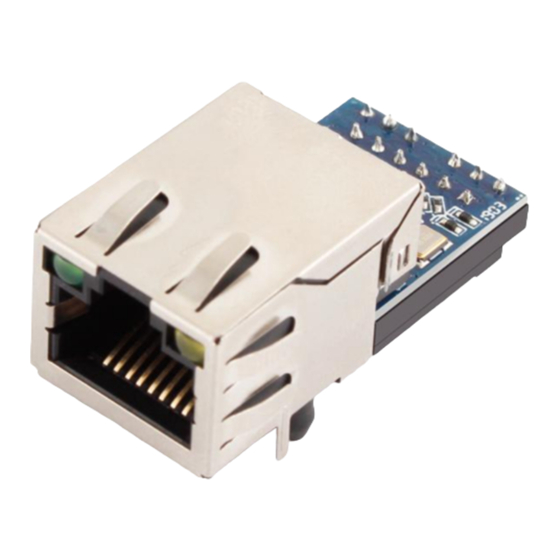

1. Product overview 1.1. Product introduction Usr-k5 is a new, small serial port to Ethernet module for data transmission between TCP/UDP packets and UART interface. This product is integrated with TCP/IP protocol stack, users can use it to easily complete the networking... -
Page 4: Mechanical Characteristics
Parameter name rating value units minimum value typical value maximum Operating temperature Normal ℃ temperature Storage Temperature Normal ℃ temperature 2.3. Mechanical characteristics Mechanical dimensions are shown in FIG. 2 (in mm). Figure2 Machine dimension Jinan USR IOT Technology Limited www.usriot.com... -
Page 5: Hardware Interface
3.1 Pin description The usr-k5 module is in a straight insert package with 16 external pins, two of which are fixed pins and two are metal shell base pins. The pin that is not used is NC, which can be suspended in the application. See figure 3. -
Page 6: Network Port Operating Indicator Light Description
Connection status The green light is on when connecting to the network correctly. indication yellow light Data Indication Modules have data to receive or flash when sent, including modules receiving network broadcast packets. Jinan USR IOT Technology Limited www.usriot.com... -
Page 7: The Suits For Development
9-Pin Female header for connecting DB9RA/F to PC serial port Module USR-Kx seat ，insert K3 module Power 3.3V power led TXD indicator light RXD indicator light Reset Reset Button Reload Restore factory Settings nouse Jinan USR IOT Technology Limited www.usriot.com... -
Page 8: Hardware Reference Design
2.TXD/RXD: serial data transceiver signal. Internally connected with a pull up resistance of 10K. 5.2.power interface Usr-k5 is powered by 3.3v, and the working current is 235mA@3.3V. Pin 11 is the power supply pin 3.3v. It can be connected to 10UF/6V3/10% and 100nF/50V/10% bypass patch capacitor stability module. See... -
Page 9: Uart Interface
If you are communicating directly with MCU (3.3v level), you only need to add the TXD of the module to the RXD of MCU, and then connect the RXD of the module to the TXD of MCU. If the MCU is 5V level, the Jinan USR IOT Technology Limited www.usriot.com... -
Page 10: Reference To Encapsulate
Level conversion reference design 5.4.Reference to encapsulate In order to facilitate the customer hardware layout, the corresponding schematic diagram packaging library and PCB packaging library. Please download the specific files from the official website :http://www.usr.cn/Download/52.html Jinan USR IOT Technology Limited www.usriot.com... -
Page 11: Contact Information
USR-K5 Integration Guide Technical Support:h.usriot.com 6. Contact information Jinan USR IOT Technology Limited Web: http://www.usriot.com Tel.: +86 531 88826739-819 Fax: +86 531 88826739-808 E-Mail: freda@usriot.com Skype: fredacui526 Cell/Wechat: +86 15269189756 Network Communication Device: Serial to Ethernet, Serial to WiFi, Serial to 2G/3G/4G modem, LTE 4G Router Jinan USR IOT Technology Limited www.usriot.com... -
Page 12: Disclaimer
Support:h.usriot.com 7. Disclaimer This document provides information about usr-k5 and does not grant any intellectual property rights license, express or implied, or by prohibition or otherwise. We accept no liability other than those stated in the terms and conditions of sale of our products. And we make no warranty, express or implied, with respect to the sale and/or use of the products, including fitness for a particular purpose, merchantability or liability for infringement of any patent, copyright or other intellectual property rights. - Page 13 USR-K5 Integration Guide Technical Support:h.usriot.com Update History 2020-03-06 Version V1.0.1 is established. Jinan USR IOT Technology Limited www.usriot.com...
