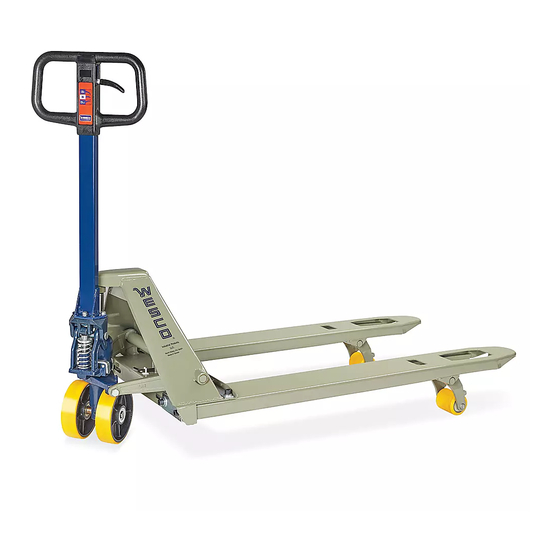

H-2917
ADJUSTABLE
PALLET TRUCK
WARNING! Operator must read and understand
instructions here and on truck prior to use.

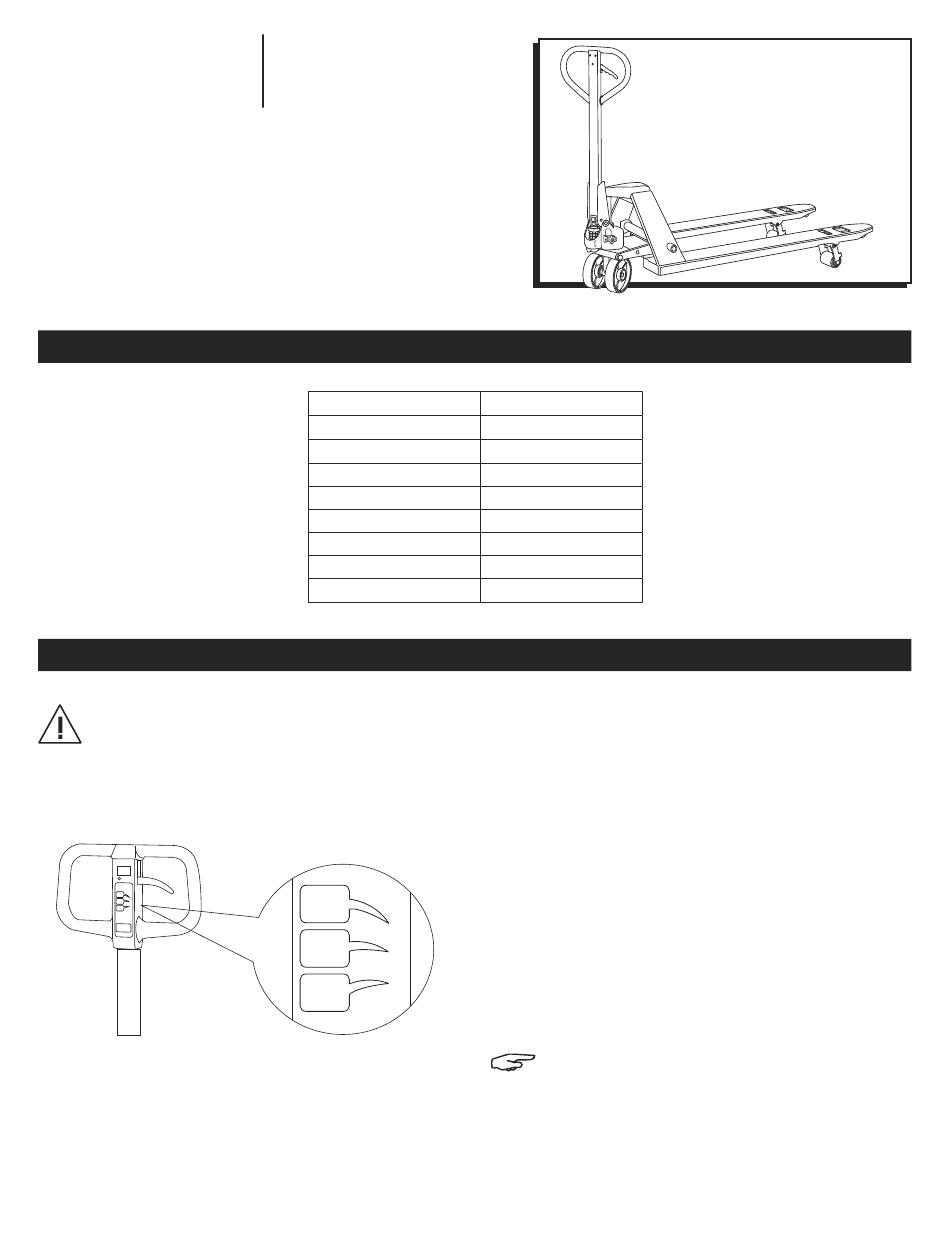

On the handle of the pallet truck, you will find the control
lever, which can be set in three positions.
(See Figure 1)
Figure 1
- UP = to raise the forks
- NEUTRAL = to move the load
- DOWN = to lower the forks
PAGE 1 OF 15
1-800-295-5510
uline.com
TECHNICAL DATA
MODEL
Capacity
Max. Fork Height
Min. Fork Height
Fork Length
Overall Fork Width
Fork Wheel Diameter
Steering Wheel Diameter
Net Weight
OPERATION
U
P
N
D
OWN
H-2917
5,500 lbs.
7.7"
3.0"
45½"
21-27"
3" Polyurethane
7" Polyurethane
204 lbs.
1. If the forks elevate while pumping in the NEUTRAL
position, turn the setting screw clockwise until
pumping the handle does not raise the forks and the
NEUTRAL position functions correctly.
2. If the forks descend while pumping in the NEUTRAL
position, turn the setting screw counterclockwise until
the forks do not lower.
3. If the forks do not descend when the control lever is
in the DOWN position, turn the setting screw clockwise
until raising the control lever lowers the forks. Then
check the NEUTRAL position as per steps 1 and 2.
4. If the forks do not lift while pumping in the UP position,
turn the setting screw counterclockwise until the forks
elevate while pumping in the UP position. Then check
the NEUTRAL and DOWN position as per steps 1, 2
and 3.
NOTE: When viewing the truck from the handle
side, the setting screw is located on the right
side of the pump above the right wheel. The
truck will lower faster or slower depending on
how far in or out the screw is adjusted.
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
