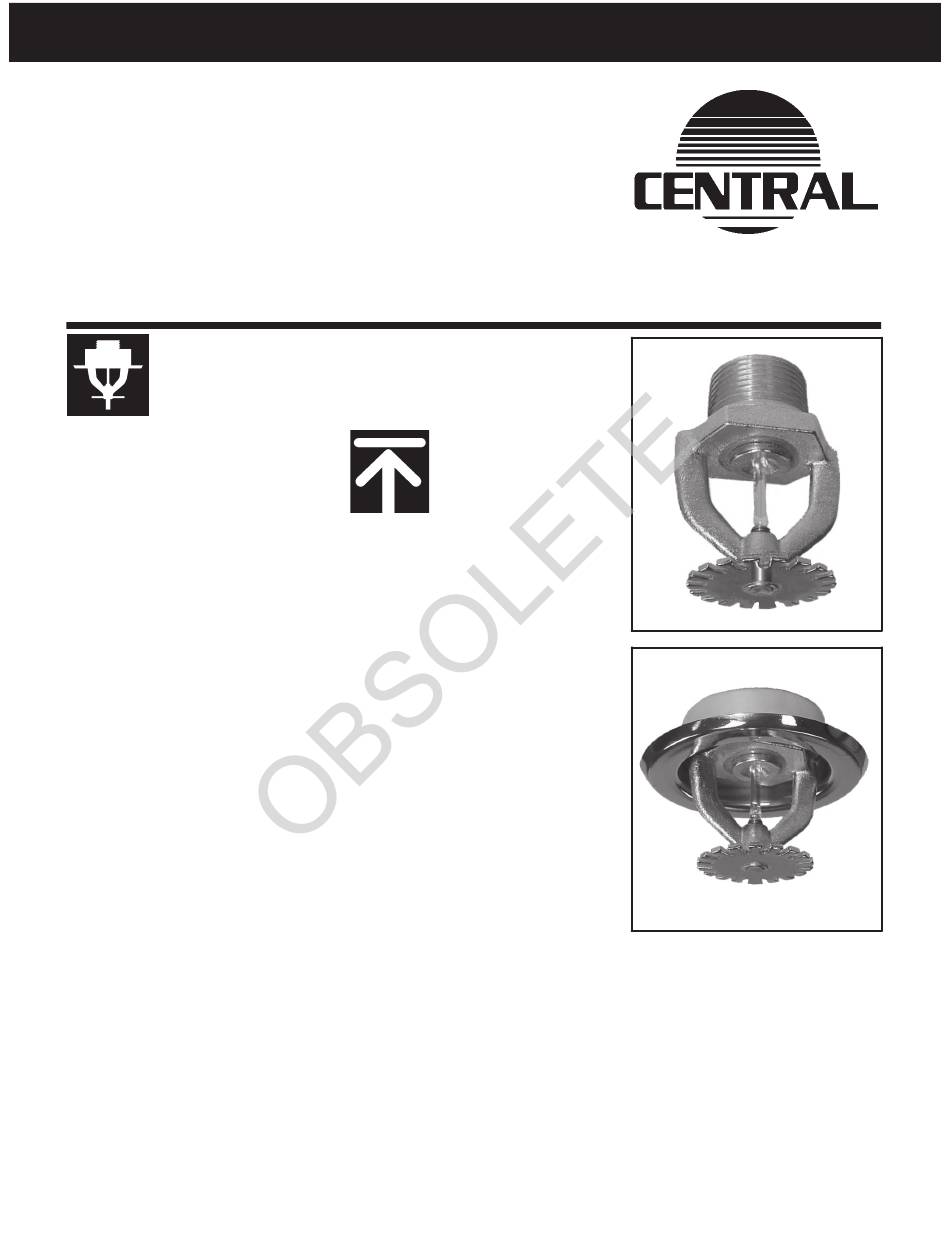

CENTRAL
Model K11 ECLH
Quick Response
Extended Coverage
Light Hazard Sprinklers
Tyco Fire Products — www.centralsprinkler.com
451 North Cannon Avenue, Lansdale, Pennsylvania 19446
Customer Services/Sales: Tel: (215) 362-0700 / Fax: (215) 362-5385
Technical Services: Tel. (800) 381-9312 / Fax: (800) 791-5500
General
Description
The Central Model K11 ECLH, 11.2
K-Factor, Quick Response, Extended
Coverage Light Hazard (ECLH) Pen-
dent and Recessed Pendent Sprin-
klers are decorative glass bulb sprin-
klers designed for use in light hazard
occupancies such as churches, hos-
pitals, offices, and restaurants.
They are intended for use in automat-
ic sprinkler systems designed in ac-
cordance with standard installation
rules (e.g., NFPA 13) for the protec-
tion of light hazards up to a maxi-
mum coverage area of 400 ft
2
m
), as compared to the maximum
2
coverage area of 225 ft
(20,9 m
for standard coverage sprinklers.
The recessed version of the Models
K11 ECLH Sprinklers using a two-
piece Series 4221 Recessed Es-
cutcheon provides up to 1/2 inch
(12,7 mm) of total adjustment from
the flush pendent position. The ad-
justment provided by the Recessed
Escutcheon reduces the accuracy to
which the fixed pipe drops to the
sprinklers must be cut.
Operation. The glass bulb contains
a fluid which expands when exposed
to heat. When the rated temperature
is reached, the fluid expands suffi-
ciently to shatter the glass bulb,
which then allows the sprinkler to ac-
tivate and flow water.
WARNINGS
The Model K11 ECLH Sprinklers de-
scribed herein must be installed and
maintained in compliance with this
document, as well as with the appli-
cable standards of the National Fire
Protection Association, in addition to
the standards of any other authori-
ties having jurisdiction. Failure to do
so may impair the integrity of these
devices.
The owner is responsible for main-
K11 ECLH
taining their fire protection system
and devices in proper operating con-
dition. The installing contractor or
sprinkler manufacturer should be
contacted relative to any questions.
Technical
Data
Sprinkler Identification Number
SIN C5232
Approvals
UL and C-UL Listed. FM Approved.
(Refer to Table A. The approvals ap-
ply only to the service conditions indi-
2
(37,2
cated in the Design Criteria section.)
Maximum Working Pressure
2
)
175 psi (12,1 bar)
Pipe Thread Connection
3/4 inch NPT or ISO 7-R3/4
Nominal Discharge Coefficients
K = 11.2 GPM/psi
(161,3 LPM/bar
Temperature Ratings
135°F/57°C to 200°F/93°C
Finishes
Sprinkler: White Polyester, Chrome
Plated, Natural Brass
Recessed Escutcheon: White
Coated or Chrome Plated
(Other finishes are available on re-
quest.)
Physical Characteristics
The K11 ECLH utilizes a dezincifica-
tion resistant (DZR) bronze frame, a
brass button, and a 3 mm bulb. The
frame orifice is sealed with a gas-
keted spring plate (Belleville Seal)
consisting of a beryllium nickel disc
spring that is sealed on both its in-
side and outside edges with a Tef-
lon V gasket. The compression screw
is bronze, and the deflector is brass.
1/2
1/2
)
K11 ECLH
Quick
Response
Pendent &
Rec. Pendent
Sprinklers
2-01
No. 2-6.1
