Tyco Fire Product CENTRAL Omega HEC-12EC Instruction Manual

Omega HEC-12EC
Extended Coverage Quick Response
(16'x18')
(4.9m x 5.5m)
Extended Coverage (16'x20')
Horizontal Sidewall Automatic Sprinkler
Manufactured by: Central Sprinkler Company
451 North Cannon Avenue, Lansdale, Pennsylvania 19446
Product
Description

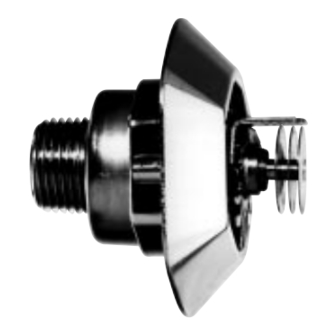

The Omega Model HEC-12EC
Sprinkler is the most versatile
horizontal sidewall sprinkler ever
produced. It is a low profile,
aesthetically pleasing, wall mounted
sprinkler that operates five to six times
faster than a standard sprinkler. It
offers a high degree of protection for
human life and features a spray
pattern that has been shown to be
effective in the control or
extinguishment of fire.
The Model HEC-12EC carries two
separate Listings* by Underwriters
Laboratories for use as:
1. An Extended Coverage Quick
Response Sprinkler that qualifies
for installation at 4"-12"
below the ceiling in light
304.8mm)
hazard occupancies in accordance
with current NFPA 13 Standards
(for up to 16' x 18'
(4.9 mm - 5.5 mm)
coverages).
2. An Extended Coverage Sprinkler
that qualifies for installation 4"-
6"
(101.6mm - 152.4mm)
ceiling in light hazard occupancies
in accordance with current NFPA
13 Standards (for up to 16' x 20'
coverages).
mm - 6.1 mm)
The Model HEC-12EC is available in
two standard finishes, brass and
chrome plated. Its mating escutcheon
plate is available in three standard
finishes, brass, chrome plated, and
*For specific listing requirements see the appropriate
information contained in this brochure.
(4.9m x 6.1m)
white, with additional special finishes
available upon request.
Operation: A fusible alloy pellet is
compressed with a bearing disc into
a copper housing by a ball plunger.
Heat is absorbed by the heat
collecting fins and conducted to the
alloy pellet. At the rated temperature
the alloy melts, causing the ball
plunger to drop, freeing balls from
the retaining groove. This movement
allows system water pressure to
force the orifice sealing mechanism
and deflector assembly open. Water
is then discharged in a designed flow
pattern.
Model: HEC-12EC
(101.6mm -
Style: Horizontal Sidewall
Orifice Size: 1/2"
K Factor: 5.6
Thread Size: 1/2"
Temperature Rating:
145°F/63°C - Extended Coverage
Quick Response (ECQR)
below the
160°F/71°C - Extended Coverage
Quick Response, Extended
(4.9
Coverage (ECQR) (EC)
Approvals: U.L., U.L.C., MEA
Maximum Working Pressure:
175 psi
(12.1 bar)
Factory Hydro Test: 100% at
500 psi
(34.5 bar)
HEC-12EC
Technical
Data
(12.7 mm)
(80.1 metric)
N.P.T.
(15 mm)
(Cal. No. 375-75-SA)
2-98
1/2"
(12.7mm)
Orifice
Horizontal
Sidewall
Automatic
Sprinkler
Standard Finishes:
Sprinkler: brass, chrome plated
and white painted
Escutcheon: brass, chrome
plated and white
painted
Length: 2 3/8"
(60.3 mm)
Width: 1 3/8" (34.9 mm)
Weight: 4.5 oz.
(127.6 g)
No. 2-14.0
