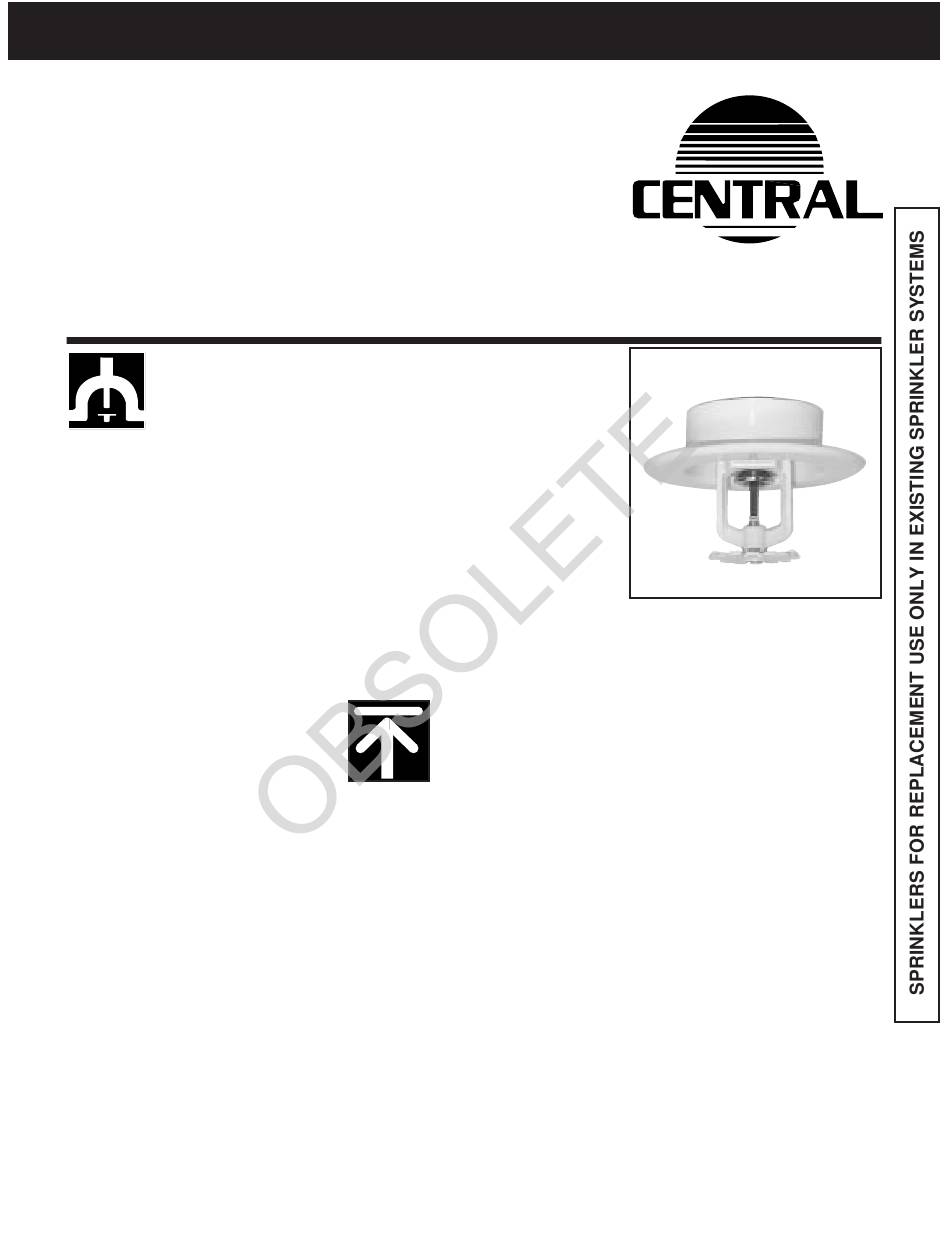

Tyco Fire Product CENTRAL BV-R1 Instruction Manual

Pendent & recessed pendent glass bulb automatic sprinkler
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

CENTRAL
Model BV-R1
5.3 K-factor -
Fast Response Residential
Pendent & Recessed Pendent Glass Bulb Automatic Sprinkler
Tyco Fire Products --- www.centralsprinkler.com
451 North Cannon Avenue, Lansdale, Pennsylvania 19446 --- USA
Customer Service/Sales: Tel: (215) 362-0700 / Fax: (215) 362-5385
Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500
General
Description
The Central Model BV-R1, 5.3
K-factor Residential Pendent and
Recessed Pendent sprinklers are
decorative glass bulb sprinklers
designed for use in residential
occupancies such as homes, apart-
ments, dormitories, and hotels.
They are to be used in wet pipe
residential sprinkler systems for one-
and two-family dwellings and mobile
homes per NFPA 13D; wet pipe
residential sprinkler systems for
residential occupancies up to and
including four stories in height per
NFPA 13R; or, wet pipe sprinkler
systems for the residential portions of
any occupancy per NFPA 13.
The recessed version of the Model
BV-R1 Residential Pendent Sprinkler
is obtained by utilizing the Model
BV-R1 Residential Pendent Sprinkler
in combination with the Model BV
Res./QR Recessed Escutcheon
Assembly. The recessed version of
the Central Model BV-R1 using a
Model BV Res./QR Recessed
Escutcheon provides up to 3/8 inch
(9,5 mm) of total adjustment from the
flush pendent position.
Operation: The glass bulb contains a
fluid which expands when exposed to
heat. When the rated temperature is
reached, the fluid expands sufficiently
to shatter the glass bulb, which then
allows the sprinkler to activate and
flow water.
WARNING
The BV-R1 Residential Pendent
Sprinklers described herein must
be installed and maintained in
compliance with this document, as
well as with the applicable stan-
dards of the National Fire Protec-
tion Association, in addition to the
standards of any other authorities
BV-R1
having jurisdiction. Failure to do so
may impair the integrity of these
devices.
Because of the above cited stipula-
tions and the varied nature of
residential type architecture, there
will be some compartment designs
which cannot be fully sprinklered in
accordance with the recomendations
of NFPA 13, NFPA 13D, or
NFPA 13R. In the event of this
condition, consult the authorities
having jurisdiction for guidance
and approval.
The owner is responsible for
maintaining their fire protection
system and devices in proper
operating condition. The installing
contractor or sprinkler manufac-
turer should be contacted relative
to any questions.
Technical
Data
Sprinkler Identification Number
SIN C3296
Approvals
UL & ULC Listed. NYC Approved
(Refer to the Design Criteria Section)
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
1/2 inch NPT
Discharge Coefficient
K = 5.3 GPM/psi
1/2
(76,3 LPM/bar
Temperature Ratings
155°F/68°C
Finishes
Sprinkler: White Polyester, Chrome
Plated, or Natural Brass
Recessed Escutcheon: White Coated,
Chrome Plated, or Brass Plated
Residential
Pendent and
Recessed
Pendent
Sprinklers
Physical Characteristics
The Model BV-R1 Residential
Pendent Sprinkler utilizes a dezincifi-
cation resistant (DZR) bronze frame
1/2
)
and a 3 mm bulb. The sprinkler frame
orifice is sealed with a gasketed
spring plate (Belleville Seal) consist-
ing of a beryllium nickel disc spring
that is sealed on both its inside and
outside edges with a Teflon
The compression screw is bronze,
and the deflector is brass.
7-02
TM
gasket.
No. 4-3.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CENTRAL BV-R1 and is the answer not in the manual?

Questions and answers

Related Manuals for Tyco Fire Product CENTRAL BV-R1

Summary of Contents for Tyco Fire Product CENTRAL BV-R1

  • Page 1 BV-R1 7-02 CENTRAL Model BV-R1 5.3 K-factor - Fast Response Residential Pendent & Recessed Pendent Glass Bulb Automatic Sprinkler Tyco Fire Products --- www.centralsprinkler.com 451 North Cannon Avenue, Lansdale, Pennsylvania 19446 --- USA Customer Service/Sales: Tel: (215) 362-0700 / Fax: (215) 362-5385 Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500 having jurisdiction.
  • Page 2 Table 2 - BV-R1 Pendent & Recessed Pendent Table 1 - BV-R1 Pendent & Recessed Pendent UL Specific Application Sloped Ceiling Hydraulic Hydraulic Design Requirements for NFPA 13D & Design Requirements for NFPA 13D & NFPA 13R NFPA 13R Occupancies Occupancies (For use with Figure 4) Minimmum Design Flow/Pressure Coverage...

  • Page 3: Installation

    Figure 1 - Model BV-R1 Pendent Installation The Central Model BV-R1 Residential Pendent Sprinklers must be installed in accordance with the following instruc- WRENCH tions: Face of Reducing FLAT Coupling NOTES Do not install any bulb type sprinkler if the bulb is cracked or there is a loss of liquid from the bulb.
  • Page 4 Figure 4 - UL Specific Application Sloped Ceiling Design Criteria Pendents Located Along Multiple Slopes • Spacing is measured along the slope. • One row of sprinklers is shown on the sloping ceiling for clarity. Actual number of sprinklers within a compartment is unlimited.
  • Page 5 Figure 7 - Spacing for Sprinkler at the Peak of a Sloped Ceiling First verify that the sprinkler at the peak is considered to be “Acceptable” or “Obstructed” by the sloped ceiling in accordance with Figure 12 Graph. Measure horizontally from the deflector to the sloped ceiling, this is equal to the “D”...
  • Page 6 Figure 10 - Minimum Distance Between Sprinklers on Intersecting Ceilings First verify that “D” is “Acceptable” or “Obstructed” per Figure 12 for the horizontal ceiling sprinkler and Figure 13 for the sloped ceiling sprinkler. If “Acceptable”, Figure 10 applies. If “Obstructed”, per Figure 12 or 13, then “D” is to be considered the area of coverage.

  • Page 7: Care And Maintenance

    Figure 13 - Obstruction to Discharge by Intersecting Flat Ceiling If “D” is “Obstructed” per Figure 13 Graph, then “D” is to be considered the area of coverage and additional sprinklers 20' x 20' along the horizontal ceiling will be necessary. Only if “D” is 18' x 18' Acceptable “Acceptable”...

  • Page 8: Limited Warranty

    Care & Limited Ordering Maintenance Warranty Information (Continued) Products manufactured by Tyco Fire Ordering Information: When placing Products are warranted solely to the an order, indicate the full product Sprinklers which are found to be original Buyer for ten (10) years leaking or exhibiting visible signs of name.
