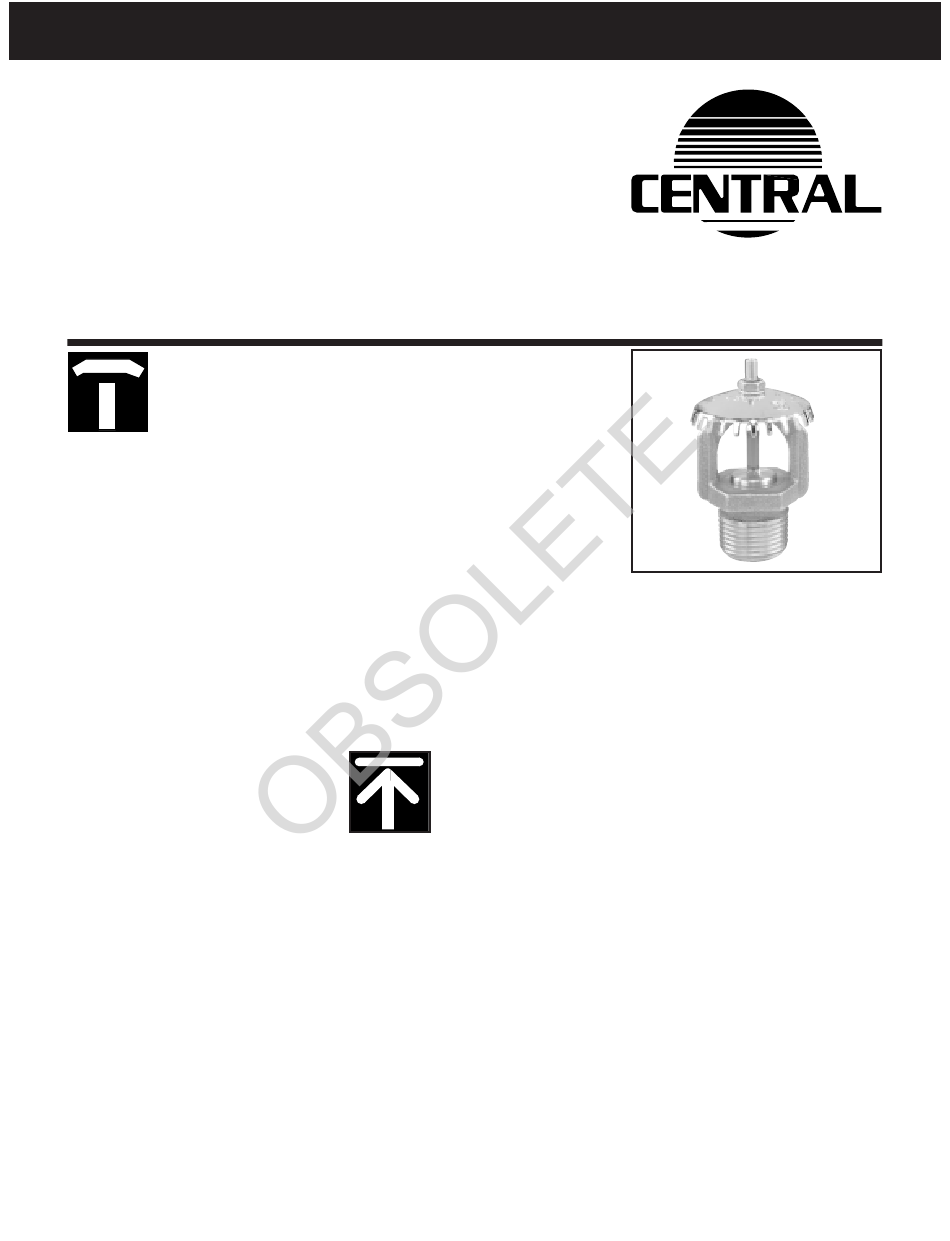

Tyco Fire Product CENTRAL Ultra K17 Instruction Manual

CENTRAL
Model Ultra K17
16.8 K-factor
Specific Application
Storage Sprinkler

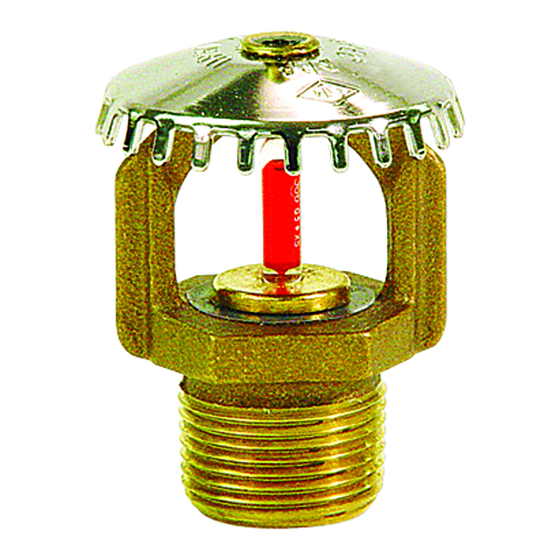

Upright Glass Bulb Automatic Sprinkler
Tyco Fire Products --- www.centralsprinkler.com
451 North Cannon Avenue, Lansdale, Pennsylvania 19446 --- USA
Customer Service/Sales: Tel: (215) 362-0700 / Fax: (215) 362-5385
Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500
General
Description
The Central Model Ultra K17, 16.8
K-Factor, Standard Response, Upright,
Specific Application Storage Sprinklers
are automatic sprinklers of the frangible
bulb type. They are "standard response
- spray sprinklers" which produce a
hemispherical water distribution pattern
below the deflector.
The Ultra K17 Specific Application
Storage Sprinklers are intended for use
in fire sprinkler systems designed in
accordance with the standard installa-
tion rules recognized by the applicable
Listing or Approval agency (e.g., UL
Listing is based on the requirements of
the National Fire Protection Associa-
tion), as well as in accordance with their
"specific application" listing/approvals.
The Ultra K17 Specific Application
Storage Sprinklers were subjected to
full scale, high-piled storage, fire tests to
qualify their use with reduced pressure
and design areas for the protection of
high-piled storage. The use of the
Ultra K17 Specific Application Storage
Sprinklers in some cases can subse-
quently reduce the design area and the
overall water demand of a sprinkler
system.
Applications for the Ultra K17 Specific
Application Storage Sprinklers are
expanding beyond the current "specific
application" listings/approvals. For
information regarding research fire tests
which may be acceptable to an
Authority Having Jurisdiction, please
contact the Technical Services Depart-
ment.
TM
ULTRA
Operation: The glass bulb contains a
fluid which expands when exposed to
heat. When the rated temperature is
reached, the fluid expands sufficiently to
shatter the glass bulb, which then allows
the sprinkler to activate & flow water.
WARNING
The Ultra K17 Upright Sprinklers
described herein must be installed and
maintained in compliance with this
document, as well as with the applicable
standards of the National Fire Protection
Association, in addition to the standards
of any other authorities having jurisdic-
tion. Failure to do so may impair the
integrity of these devices.
The owner is responsible for maintain-
ing their fire protection system and
devices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
relative to any questions.
Technical
Data
Sprinkler Identification Number
SIN C7153
Approvals
UL & C-UL Listed. FM Approved
(Refer to Tables 1, 2 & 3. The approvals
apply only to the service conditions
indicated in the Design Criteria Section)
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
3/4 inch NPT
Discharge Coefficient
K = 16.8 GPM/psi 1/2 (241,9 LPM/bar
Temperature Ratings
155 o F/68 o C, 200 o F/93 o C
TM
K17
Specific
Application
Upright
Sprinklers
Finishes
Sprinkler: Natural Brass with Chrome
Deflector
Physical Characteristics
The Model Ultra K17 Upright Sprinklers
utilize a dezincification resistant (DZR)
bronze frame and a 5 mm bulb. The
two-piece button assembly is brass and
copper. The sprinkler frame orifice is
sealed with a gasketed spring plate
(Belleville Seal) consisting of a beryllium
nickel disc spring that is sealed on both
its inside and outside edges with a
1/2 )
Teflon TM gasket. The compression
screw is bronze, & the deflector is
brass.
2-01
No. 3-3.0
