Std. Response - Std. Coverage
Vertical Sidewall Sprinklers
Model E, K=5.6 or 8.0
GENERAL DESCRIPTION
The Star Model E, 5.6 or 8.0 K-Factor, Vertical Sidewall
Sprinklers are standard response - standard coverage,
solder type spray sprinklers designed for use in light haz-
ard, commercial occupancies such as banks, hotels,
shopping malls, offices, etc. They are designed for instal-
lation along a wall or the side of a beam and just beneath
a smooth ceiling. Horizontal sidewall sprinklers are com-
monly used instead of pendent or upright sprinklers be-
cause of aesthetics or building construction considera-
tions, where piping across the ceiling is not desirable.
WARNINGS
The Model E Sprinklers described herein must be in-
stalled and maintained in compliance with this document,
as well as with the applicable standards of the National
Fire Protection Association, in addition to the standards
of any other authorities having jurisdiction. Failure to do
so may impair the integrity of these devices.
The owner is responsible for maintaining his fire protec-
tion system and devices in proper operating condition.
The installing contractor or sprinkler manufacturer should
be contacted relative to any questions.
OPERATION
A bronze tube sealed by a steel ball holds a fusible alloy.
The tube is compression loaded and via the tension
mechanism, the cap seals the sprinkler orifice. When the
rated temperature is reached, the alloy melts, the ball is
forced inward, and the tension mechanism releases the
cap, which then allows the sprinkler to activate and flow
water.
TYCO FIRE PRODUCTS
Customer Service/Sales: Tel: (800) 558-5236 • Fax: (414) 570-5010
Technical Services: Tel: (800) 381-9312 • Fax: (800) 791-5500

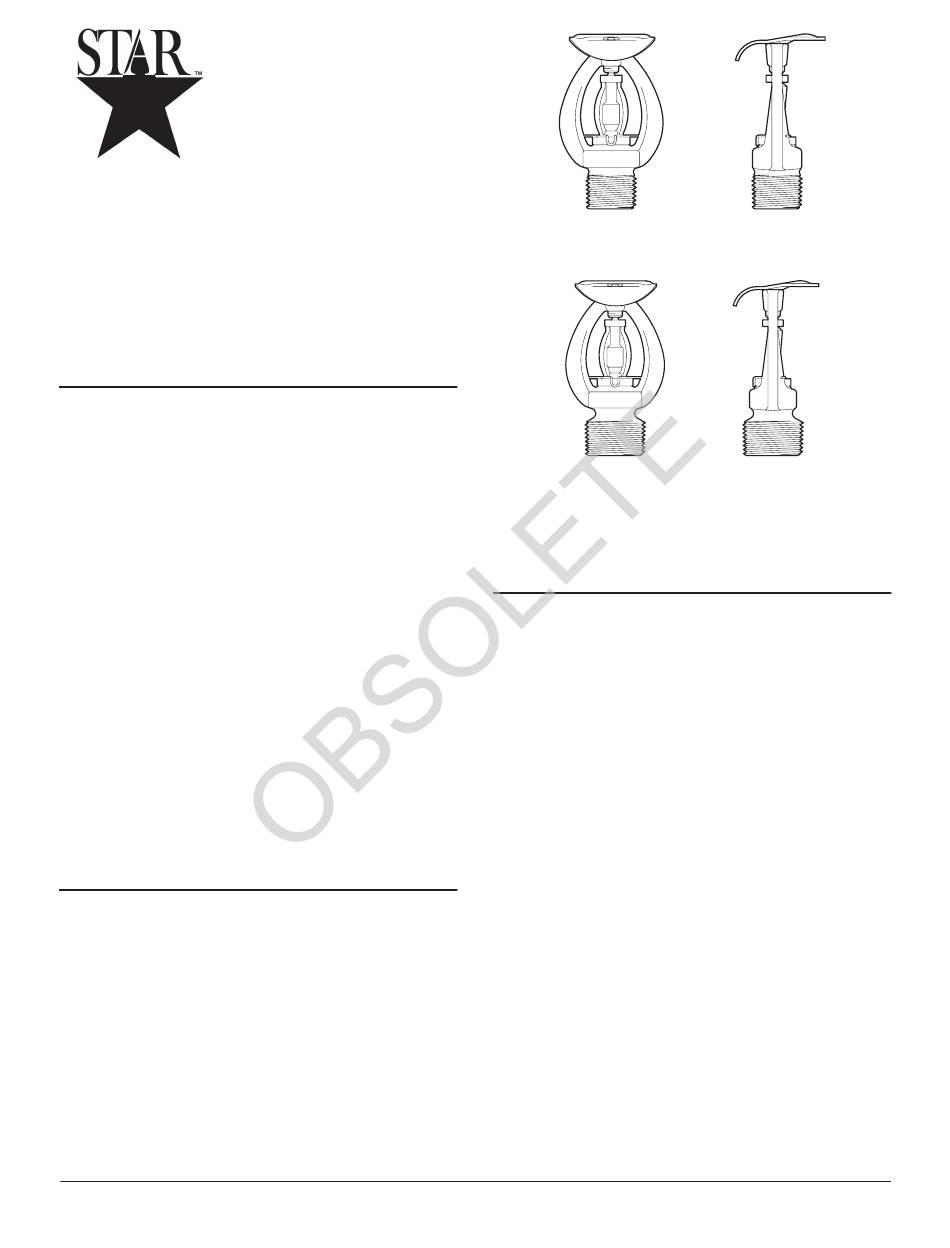

SIN S5002
Vertical Sidewall (Shown Upright)
K=5.6, 1/2" NPT
SIN S5009
Vertical Sidewall (Shown Upright)
K=8.0, 3/4" NPT
TECHNICAL DATA
Approvals
UL and ULC Listed. FM, LPC, NYC Approved.
(Refer to Table A. The approvals apply only to the service
conditions indicated in the Design Criteria section.)
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
1/2 or 3/4 inch NPT
Discharge Coefficient
1/2
K = 8.0 GPM/psi (115,2 LPM/bar
Temperature Ratings
135°F/57°C, 165°F/74°C, 212°F/100°C, 280°F/138°C,
360°F/182°C, 400°F/204°C or 520°F/271°C
(Refer to Table A)
Finishes
Chrome Plated, Natural Brass
(Refer to Table A)
Physical Characteristics (Ref. Figure 1)
The Model E utilizes a dezincification resistant (DZR)
bronze frame with a brass deflector. The waterway is
sealed with copper gasket. The fusible assembly is con-
structed of bronze and stainless steel components.
