Quick Response - Std. Coverage
Upright, Pendent, and
Recessed Pendent Sprinklers
Star Galaxy™ SGQR, K=8.0

GENERAL DESCRIPTION

The Star Galaxy SGQR, 8.0 K-Factor, Upright, Pendent,
and Recessed Pendent Sprinklers are quick response -
standard coverage, decorative glass bulb type spray
sprinklers designed for use in light, ordinary, or extra haz-
ard, commercial occupancies such as banks, hotels,
shopping malls, factories, refineries, chemical plants, etc.
The recessed version of the Star Galaxy SGQR, intended
for use in areas with a finished ceiling, uses a two-piece
#2086 or #2088 Recessed Escutcheon. The #2086 pro-
vides 1/4 inch (6,4 mm) of recessed adjustment or up to
1/2 inch (12,7 mm) of total adjustment from the flush pen-
dent position, and the #2088 provides 1/2 inch (12,7 mm)
of recessed adjustment or up to 3/4 inch (19,1 mm) of to-
tal adjustment from the flush pendent position. The adjust-
ment provided by the Recessed Escutcheon reduces the
accuracy to which the fixed pipe drops to the sprinklers
must be cut.
Lead coatings are utilized to extend the life of copper al-
loy sprinklers beyond that which would otherwise be ob-
tained when exposed to corrosive atmospheres. Although
lead coated sprinklers have passed the standard corro-
sion tests of the applicable approval agencies, the testing
is not representative of all possible corrosive atmos-
pheres. Consequently, it is recommended that the end
user be consulted with respect to the suitability of these
corrosion resistant coatings for any given corrosive envi-
ronment. The effects of ambient temperature, concentra-
tion of chemicals, and gas/chemical velocity, should be
considered, as a minimum, along with the corrosive na-
ture of the chemical to which the sprinklers will be ex-
posed.
An intermediate level version of the Star Galaxy SGQR
Pendent Sprinkler can be obtained by utilizing the Star
Galaxy SGQR Pendent Sprinkler (SIN S2980) in combina-
tion with the Model S11 Shield described in Product Data
Sheet 1-4.2.41.

WARNINGS

The Star Galaxy SGQR Sprinklers described herein must
be installed and maintained in compliance with this docu-
ment, as well as with the applicable standards of the Na-
tional Fire Protection Association, in addition to the stand-
ards of any other authorities having jurisdiction. Failure to
do so may impair the integrity of these devices.
The owner is responsible for maintaining their fire protec-
tion system and devices in proper operating condition.
The installing contractor or sprinkler manufacturer should
be contacted relative to any questions.
TYCO FIRE PRODUCTS
Customer Service/Sales: Tel: (800) 558-5236 • Fax: (414) 570-5010
Technical Services: Tel: (800) 381-9312 • Fax: (800) 791-5500

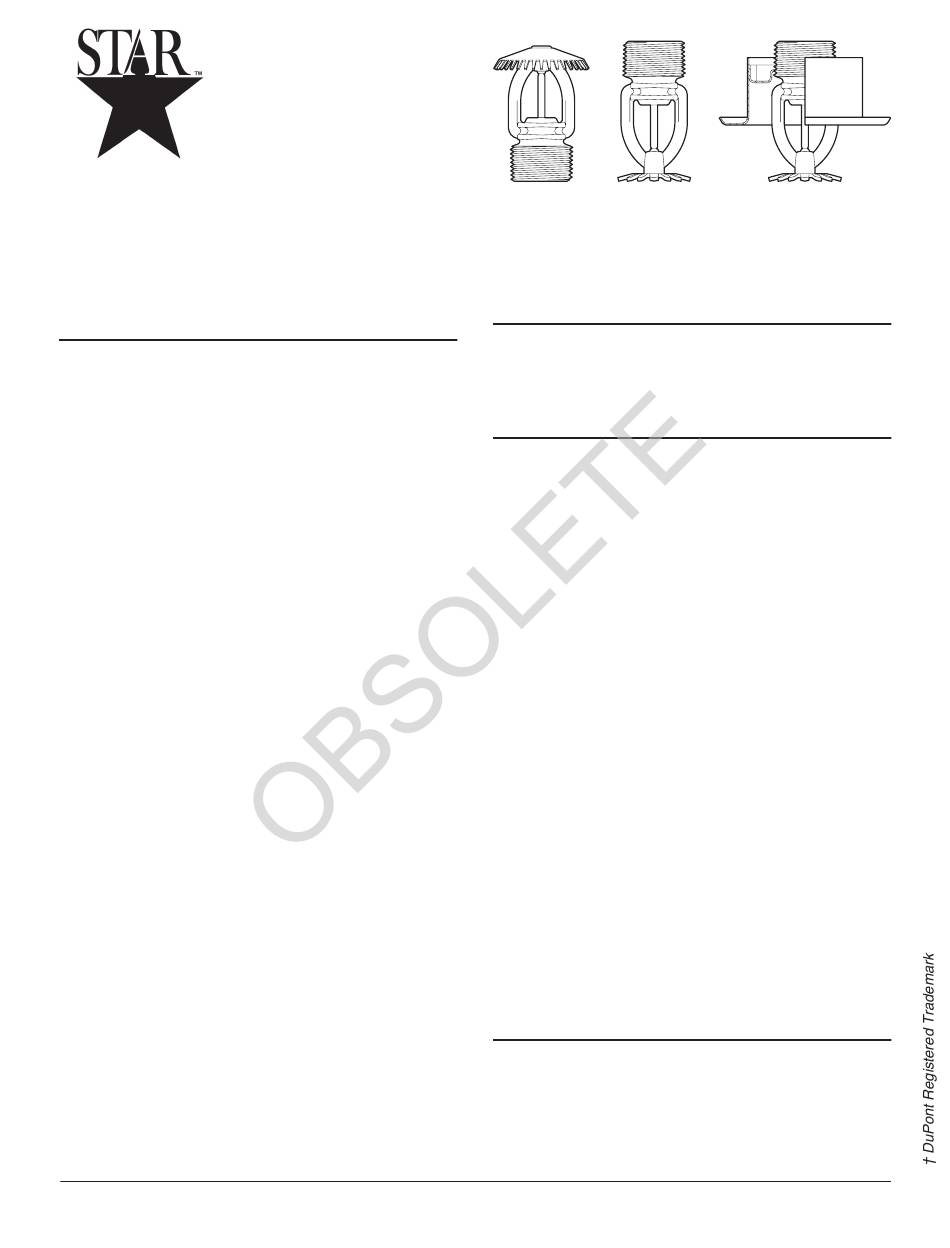

SIN S2979
SIN S2980
Upright Pendent

OPERATION

The glass bulb contains a fluid which expands when ex-
posed to heat. When the rated temperature is reached,
the fluid expands sufficiently to shatter the glass bulb,
which then allows the sprinkler to activate and flow water.

TECHNICAL DATA

Approvals
UL and ULC Listed. FM, LPC, NYC Approved.
(Refer to Table A. The approvals apply only to the service
conditions indicated in the Design Criteria section.)
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
3/4 inch NPT
Discharge Coefficient
1/2
K = 8.0 GPM/psi (115,2 LPM/bar
Temperature Ratings
135°F/57°C, 155°F/68°C, 175°F/79°C,
200°F/93°C, or 286°F/141°C
(Refer to Table A)
Finishes
Sprinkler: White Polyester, Black Polyester,
Chrome Plated, Natural Brass, Lead Coated,
(Refer to Table A)
Recessed Escutcheon: White Coated, Black Coated,
Chrome Plated, Bright Brass Plated
(Other colors are available on request.)
Physical Characteristics (Ref. Figure 1)
The Star Galaxy SGQR utilizes a dezincification resistant
(DZR) bronze frame, and a 3 mm diameter glass bulb.
The two-piece button assembly is brass and copper. The
gasketed spring plate consists of a beryllium nickel disc
spring that is sealed on both its inside and outside edges
V
with a Teflon gasket. The compression screw is bronze,
and the deflector is brass.

DESIGN CRITERIA

The 8.0 K-Factor, Star Galaxy SGQR Upright, Pendent,
and Recessed Pendent Sprinklers are intended for fire
protection systems designed in accordance with the
standard installation rules recognized by the applicable
Listing or Approval agency (e.g., UL Listing is based on
NFPA 13 requirements). Only the #2086 or #2088 Re-
cessed Escutcheon described herein is to be used for re-
cessed installations.
Shown With
#2086 Recessed
Escutcheon
1/2
)
