- Page 1 D40 Setup Guide...
- Page 3 In the box What you’ll need Connect Contents Mount Secure Support...

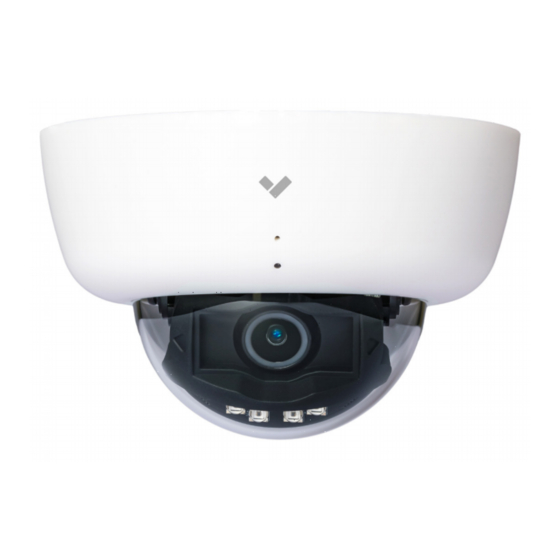

- Page 4 In the box D40 Camera...
- Page 5 Mount plate 3 screws 3 wall anchors 2 machine screws 2 washers 2 wing nuts...
- Page 6 What you’ll need...
- Page 7 • A working internet connection • 802.3af Power over Ethernet (PoE) switch, or a PoE injector • A smartphone or laptop • A Phillips screwdriver or power drill with a Phillips driver bit • 1/4-inch (6.5mm) drill bit for wall anchors •...
- Page 8 Connect Grasp the plastic mount plate strap and pull the cover o of the camera.
- Page 9 Connect the camera to an 802.3af Power Go to www.verkada.com/start over Ethernet port on your network. An orange LED on the camera’s ethernet port will indicate that it is powered and booting up. A green LED on the ethernet port will...
- Page 10 Mount...
- Page 11 On the bottom of the camera, rotate the Firmly pull and seperate the mount plate mount plate clock-wise until it stops and from the camera base. Remove and is lined up with its corresponding blue discard the plastic mount plate strap. colored notch on the camera base.
- Page 12 Mount continued...
- Page 13 When placing the mount plate, take care to If your cable is routed through a hole in orient it such that your camera’s target is the mounting surface, position one of the situated within the “Camera Pan Angle”. mount plate’s notches labeled “Cable” as close to the cable hole as possible.
- Page 14 Mount continued...
- Page 15 1/8 inch Use the mount plate to mark holes for For a solid material like wood or metal, drill mounting screws. 1/8-inch pilot holes. Drive mounting screws directly into the pilot holes.
- Page 16 Mount continued...
- Page 17 1/4 inch 3/16 inch For a drop ceiling, drill 3/16-inch holes For drywall, drill 1/4-inch holes. Insert through the ceiling tile and insert machine plastic anchors into holes and drive screws. Behind the ceiling tile, place mounting screws into anchors. washers and wing nuts on each screw and hand tighten.
- Page 18 Mount continued...
- Page 19 Plug in the camera. Line up the blue With the camera on the mount plate, rotate notches on the mount plate and the the entire camera body on the mount plate camera body and place the camera over to adjust the pan angle. Tilt and rotate just the center pin on the mount plate.
- Page 20 Secure...
- Page 21 Status LED Solid orange Camera is on and booting up Flashing orange Camera is updating firmware Flashing blue Camera is recording, but cannot reach the server Route the cable snuggly between the camera base and the mount plate. Place Solid blue the cover on the camera.
- Page 22 Thank you for purchasing a Verkada camera. Support If for any reason things don’t work right or you need assistance, please contact us immediately. Sincerely - The Verkada Team...
