Summary of Contents for Verkada CM61
- Page 1 CM61 Setup Guide...
- Page 3 In the box What you’ll need Connect Contents Mount Secure Support...

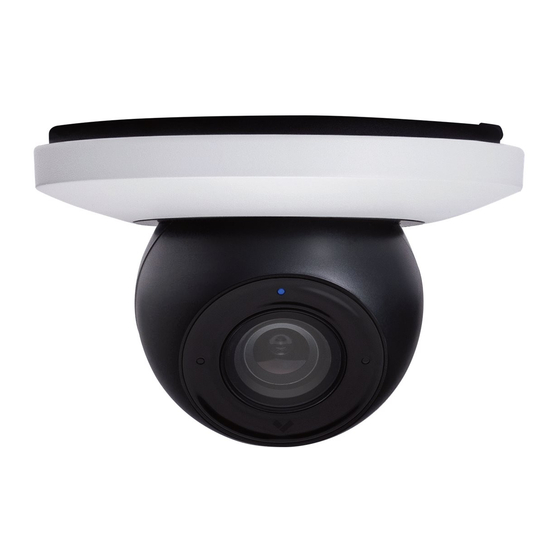

- Page 4 In the box CM61 Camera...
- Page 5 Drill 1 ¼ inch (32mm) hole for cable routed through wall Drill two mounting screw holes ⁄ inch (3mm) for wood/metal ¼ inch (6mm) for plastic anchors ⁄ inch (4.5mm) for drop ceiling Mount plate Drill template 3 Screws 3 Wall anchors Length (including head) 52.5 mm, Width 4 mm, Head width 8.3 mm 2 Machine screws...
- Page 6 What you’ll need...
- Page 7 • A working internet connection • 802.3af Power over Ethernet (PoE) switch, or a PoE injector • A smartphone or laptop • A Phillips screwdriver or power drill with a Phillips driver bit • 1/ 4 inch (6.5mm) drill bit for wall anchors •...
- Page 8 Connect...
- Page 9 Connect the camera to an 802.3af Power over Go to www.verkada.com/start Ethernet port on your network. Once it’s plugged in, the camera’s LED will turn solid orange, indicating it is powered on and booting up. When the LED turns solid blue, the camera is fully...
- Page 10 Mount...
- Page 11 ⁄ inch Use the included drill template to mark holes for For a solid material like wood or metal, drill 1/8 inch mounting screws. If the camera’s cable is to be pilot holes. Drive mounting screws directly into the routed through the mounting surface, drill a pilot holes.
- Page 12 Mount continued...
- Page 13 ⁄ inch ⁄ inch For drywall, drill 1/ 4 inch holes. Insert plastic For a drop ceiling, drill 3/16 inch holes through the anchors into holes and drive mounting ceiling tile and insert machine screws. Behind the screws into anchors. ceiling tile, place washers and wing nuts on each screw and hand tighten.
- Page 14 Secure If the ethernet cable is routed through the mounting surface, plug the cable into the camera’s cable connector and insert the connector through the 1 1/ 4 inch cable hole. Place the camera over the mount plate and rotate it clockwise until it locks.
- Page 15 If the ethernet cable is to be routed along the mounting surface, plug the cable into the camera’s cable connector, place the camera over the mount plate and rotate it clockwise until it locks into place. Mount the cable connector with the included adhesive to a clean, dry, and dust-free surface. Peel off the first protective layer and press the adhesive against the connector.
- Page 16 Secure continued...
- Page 17 Status LED ROTATE Solid orange Camera is on and booting up TILT Flashing orange Camera is updating firmware Flashing blue Camera is recording, but cannot reach the server To adjust the camera view, pan the camera by spinning the entire camera sphere. Tilt the camera by tilting the entire camera sphere.
- Page 18 Thank you for purchasing a Verkada camera. If for any reason things don’t work right or you need assistance, please contact us immediately. Support Sincerely - The Verkada Team +1 (833) 837-5232 support@verkada.com...
- Page 20 www.verkada.com/support...
