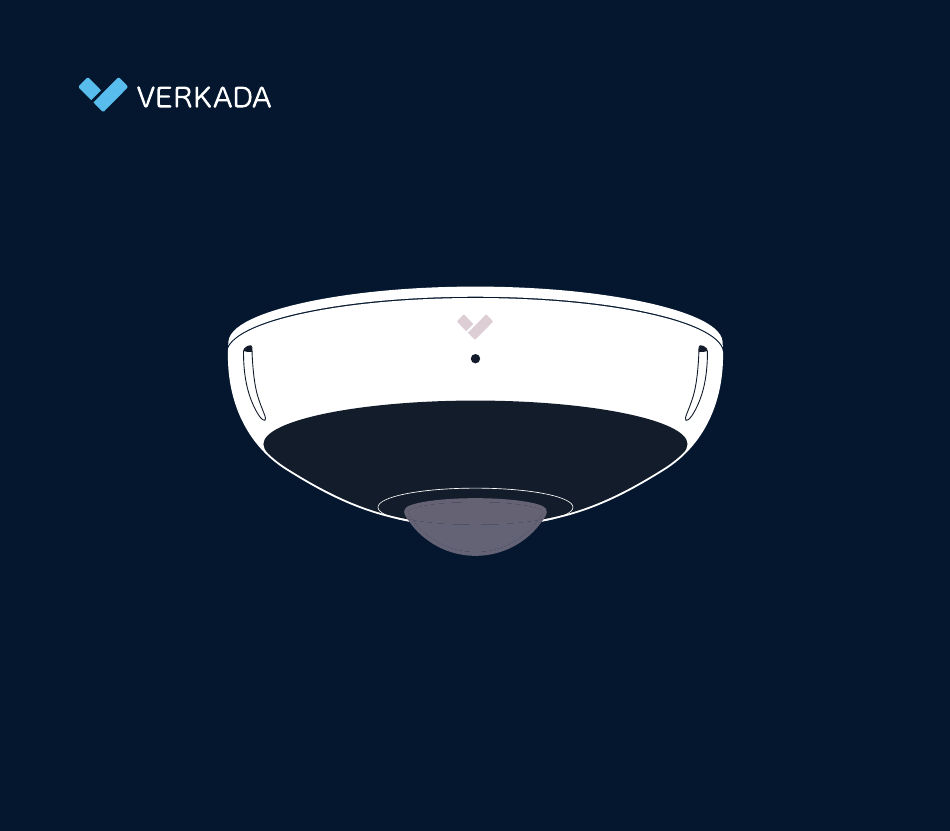

- Page 1 D80 Setup Guide...
- Page 3 In the box What you’ll need Contents Connect Mount Secure Support...

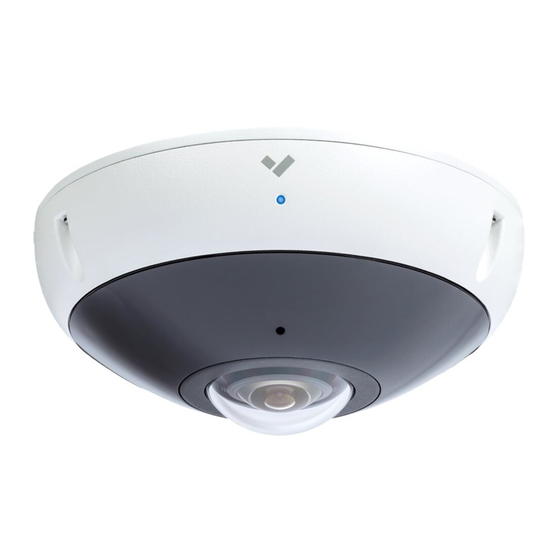

- Page 4 In the box D80 Camera T10 security Torx screwdriver 4 screws 4 wall anchors...
- Page 5 Mount plate Mounting template 3 machine screws 3 washers Desiccant 3 wing nuts Conduit adapter 2 pole straps (with 2 screws and anchors)
- Page 6 What you’ll need...
- Page 7 • A working internet connection • 802.3af Power over Ethernet (PoE) switch, or a PoE injector • A smartphone or laptop • A Phillips screwdriver or power drill with a Phillips driver bit • 1/4-inch (6.5mm) drill bit for wall anchors •...
- Page 8 Connect Use the provided T10 Torx security screwdriver to loosen the screws and lift the case o the camera.
- Page 9 Connect the camera to an 802.3af Power over Go to www.verkada.com/start Ethernet port on your network. An orange LED on the camera’s ethernet port will indicate that it is powered and booting up. A green LED on the ethernet port will indicate the camera is active.
- Page 10 Mount Using a Phillips screwdriver, loosen the mount plate screws. Twist clockwise and lift the camera o the mount plate.
- Page 11 Use the mounting template to mark wall mount To ensure proper image orientation, be sure to holes. For junction box or accessory mounting, align the mounting template’s level lines either use the mounting template to determine the horizontally or vertically. Do not mount camera correct hole pattern.
- Page 12 1/8 inch Mount continued For a solid material like wood or metal, drill 1/8-inch pilot holes. Drive mounting screws directly into the pilot holes.
- Page 13 1/4 inch 3/16 inch For drywall, drill 1/4-inch holes. Insert plastic anchors For a drop ceiling, drill 3/16-inch holes through the into holes and drive mounting screws into anchors. ceiling tile and insert machine screws. Behind the ceiling tile, place washers and wing nuts on each screw and hand tighten.
- Page 14 Cable gland Mount Pass-through continued Dissasamble the cable access port in the camera base plate. Feed the ethernet cable up throught the baseplate and thread through the port components as shown. Reassemble the cable access port and tighten snugly.
- Page 15 To secure the camera, place it over the mount plate Plug in the camera. An orange LED on the camera’s screws and twist counter-clockwise. Tighten the ethernet port will indicate that it is powered and mount plate screws with a Phillips screwdriver. booting up.
- Page 16 Secure Open outer desiccant bag, take out desiccant pack and peel to expose the adhesive. Adhere desiccant to the camera body at the “Attach Desiccant Here” label. Be sure it does not obscure the camera.
- Page 17 Status LED Solid orange Camera is on and booting up Flashing orange Camera is updating firmware Flashing blue Camera is recording, but cannot reach the server Solid blue Replace the camera cover and secure it using Camera is running, connected, the provided T10 Torx security screwdriver.
- Page 18 Thank you for purchasing a Verkada camera. If for any reason things don’t work right or you need Support assistance, please contact us immediately. Sincerely - The Verkada Team www.verkada.com/support...
- Page 20 www.verkada.com/support...
