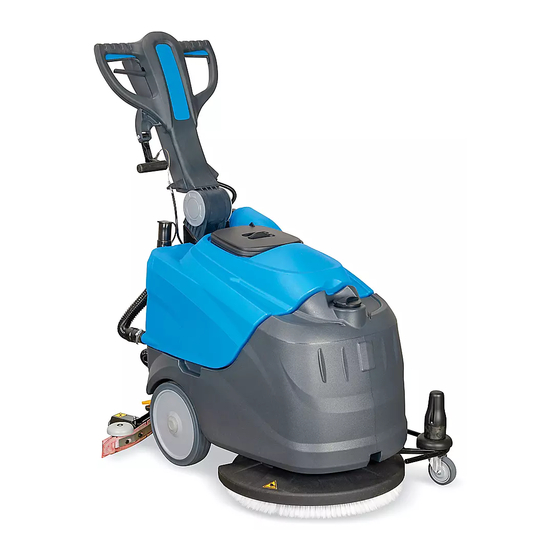

20" auto floor scrubber
Hide thumbs Also See for H-9424:
1
2
3
4
5
6
7
8
9

Advertisement

Available languages

Available languages

Table of Contents

H-9424
20" AUTO FLOOR SCRUBBER
OPERATING ISSUE
The machine does not work.
The brush does not rotate.
The machine does not
clean evenly.
No detergent is delivered.
The suction motor does not
start.
PAGE 1 OF 9
1-800-295-5510
uline.com
TROUBLESHOOTING
CAUSES
The batteries need to be charged.
The brush button LED is off.
The brush motor thermal cutout has
tripped; the motor has overheated.
The batteries need to be charged.
The brush motor fuse has blown.
The brush or floor cleaning pad is
worn.
The detergent button LED is off.
The detergent tank is empty.
The brush motor is off.
The hose delivering the detergent
to the brush is blocked.
The detergent tap is dirty or faulty.
The in-line filter is dirty (left side from
operator's position near the wheel).
The fan button LED is off.
The vacuum motor fuse is blown.
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
RECOMMENDATIONS
Charge the batteries.
(See Instructions)
Press the brush button.
Turn off the unit. Let the machine
cool down for at least 45 minutes.
Charge the batteries.
Replace the brush motor fuse.
Replace the worn brush or floor
cleaning pad.
Press the detergent button.
Fill the detergent tank.
Turn on the motor by pressing the
brush button.
Unblock and open the detergent
tank tap.
Have the detergent tap cleaned or
replaced.
Clean the filter. Make sure to close
the detergent tap prior to cleaning.
Press the fan button.
Replace the vacuum motor fuse.
0621 TH-9424

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-9424 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Line H-9424

Summary of Contents for U-Line H-9424

  • Page 1 Para Español, vea páginas 4-6. Pour le français, consulter les pages 7-9. H-9424 1-800-295-5510 20" AUTO FLOOR SCRUBBER uline.com TROUBLESHOOTING OPERATING ISSUE CAUSES RECOMMENDATIONS The machine does not work. The batteries need to be charged. Charge the batteries. (See Instructions) The brush does not rotate.
  • Page 2 TROUBLESHOOTING CONTINUED OPERATING ISSUE CAUSES RECOMMENDATIONS The squeegee does not The edge of the squeegee blades Replace the squeegee blades. clean or has poor suction. in contact with the floor is worn. The squeegee or hose is blocked or Unblock and repair the damage. damaged.

  • Page 3: Error Code Display

    TROUBLESHOOTING CONTINUED ERROR CODE DISPLAY ERROR CODE ERROR Brush Button LED: Brush short circuit error. 2 quick flashes / pause / 2 quick flashes. Brush Button LED: Overcurrent error. 1 flash / pause/ 1 flash. Fan Button LED: Suction short circuit error. 2 quick flashes / pause / 2 quick flashes.

  • Page 4: Solución De Problemas

    π H-9424 800-295-5510 uline.mx FREGADORA DE PISOS AUTOMÁTICA DE 20" SOLUCIÓN DE PROBLEMAS PROBLEMA DE FUNCIONAMIENTO CAUSAS RECOMENDACIONES La máquina no funciona. Las baterías necesitan cargarse. Cargue las baterías. (Vea las Instrucciones) El cepillo no gira. La luz LED del botón del cepillo Presione el botón del cepillo.
  • Page 5 CONTINUACIÓN DE SOLUCIÓN DE PROBLEMAS PROBLEMA DE FUNCIONAMIENTO CAUSAS RECOMENDACIONES El motor de succión no enciende. La luz LED del botón del ventilador Presione el botón del ventilador. está apagada. El fusible del motor de la Cambie el fusible del motor de la aspiradora se quemó.
  • Page 6 CONTINUACIÓN DE SOLUCIÓN DE PROBLEMAS INDICADOR DE CÓDIGOS DE ERROR CÓDIGO DE ERROR ERROR LED del Botón del Cepillo: Error de cortocircuito del cepillo. 2 parpadeos rápidos / pausa / 2 parpadeos rápidos. LED del Botón del Cepillo: Error de sobrecorriente. 1 parpadeo / pausa / 1 parpadeo.

  • Page 7: Dépannage

    π H-9424 1-800-295-5510 uline.ca AUTOLAVEUSE À PLANCHER – 20 PO DÉPANNAGE PROBLÈME CAUSES RECOMMANDATIONS La machine ne démarre Les batteries doivent être chargées. Chargez les batteries. pas. (Voir les instructions) La brosse ne tourne pas. Le voyant du bouton de la brosse Appuyez sur le bouton de la brosse.
  • Page 8 DÉPANNAGE (SUITE) PROBLÈME CAUSES RECOMMANDATIONS Le moteur de succion ne Le voyant du bouton du ventilateur Appuyez sur le bouton du démarre pas. est éteint. ventilateur. Le fusible du moteur de l'aspirateur Remplacez le fusible du moteur de a sauté. l'aspirateur.

  • Page 9: Affichage De Codes D'erreur

    DÉPANNAGE (SUITE) AFFICHAGE DE CODES D'ERREUR CODES D'ERREUR ERREUR Voyant du bouton de la brosse : Erreur de court-circuit de la brosse. 2 clignotements rapides / pause / 2 clignotements rapides. Voyant du bouton de la brosse : Erreur de surintensité. 1 clignotement / pause / 1 clignotement.
