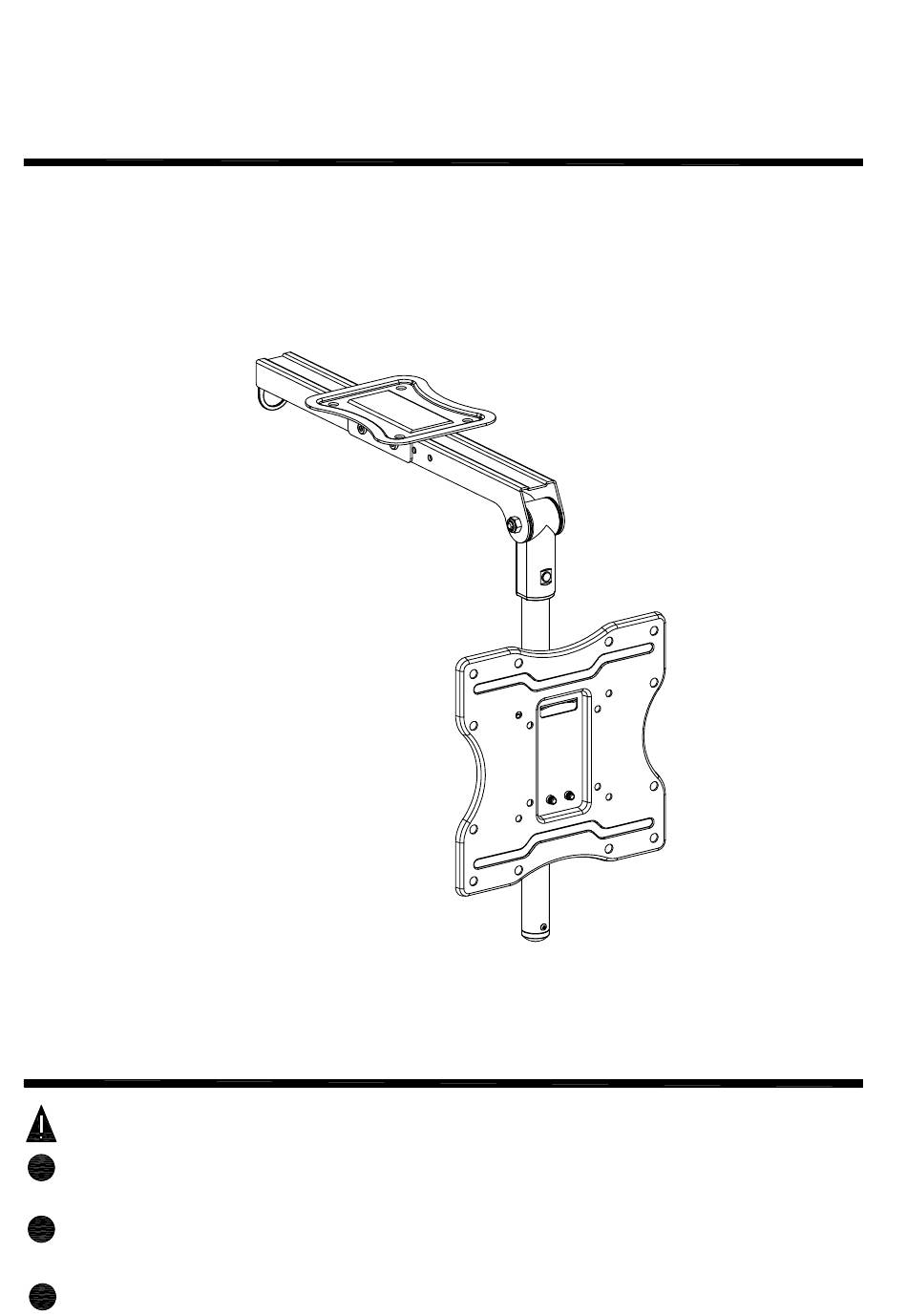

- Page 1 ASSEMBLY INSTRUCTION HANG CEILING MOUNT MODEL ： XD1365 CAUTION : Please read this instruction carefully before assembly. Fits for 13 ～ 37" plasma and LCD TV. Weight Capacity :44LBS (20KG).
-
Page 2: Part List
CAUTION : SAFETY WARNING: Never let children climb on product or play with product. Do not sit or stand on product. Do not fasten a TV that is heavier than the recommended load rating to the mount. Using suitable concrete wall or wood stud wall. Improper installation may cause property damage or personal injury,so the installation must be done by two qualified contractors. - Page 3 Step 1 : The galvanized tube is pushed inside to make the product open .(Figure 1) Figure 1 Step 2 : Remove the screws ① and Separate this unit into two pieces A1 & A2. (Figure 2) ① Figure 2...
- Page 4 Step 3 ： Wall plate installation . (Figure3) Min:T=4.7" Min:T=5/8" Aperture:5/32" Aperture:3/8" Depth:2.36" Depth:2.36" Concrete ceiling Wood ceiling Figure 3 Step 4 ： Attach TV plate (A2) to the back of TV, choose corresponding bolt, washer and spacer to fix the holes of TV rear. (Figure 4) a/b/c Figure 4...
- Page 5 Step 5 : Hang pre-assembled TV unit on the wall plate and pull down the strap to lock it. (Figure 5) Attention Forbidden Figure 5 Step 6 : Adjusting the TV tilting angle Use the screws ① to adjust TV's leveling ,use the screws ② to adjust TV's tilting angle.
- Page 6 Step 7 : Adjusting the TV distance Use the screws ③ to adjust TV's forward and backward distance, use the screws ④ to adjust TV's up and down distance. ( Figure 7). ③ ④ 360° Figure 7 PAY EXTRA CARE AND ATTENTION WHEN YOU FASTEN TWO TV MOUNTS TO THE BACK PANEL OF TV IN STEP 2 .
