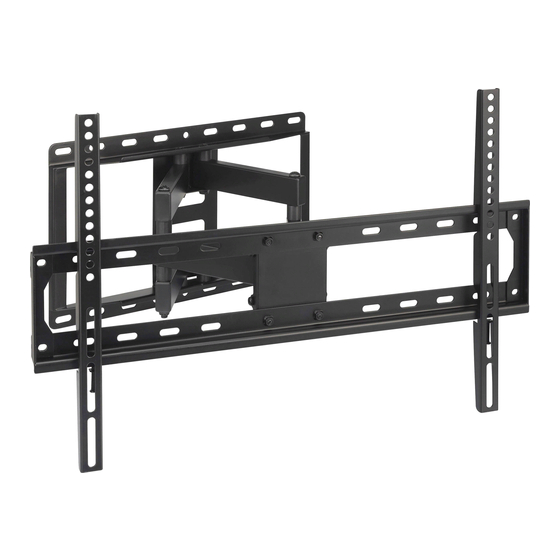

- Page 1 ASSEMBLY INSTRUCTION MODEL : XD2480-L CAUTION: Please read this instruction carefully before assembly. Fits for 42-84in plasma and LCD TV. Weight Capacity :99LBS (45KG).
- Page 2 CAUTION: SAFETY WARNING: Never let children climb on product or play with product. Do not sit or stand on product. Do not fasten a TV that is heavier than the recommended load rating to the mount. Using suitable concrete wall or wood stud wall. Improper installation may cause property damage and/or personal injury, so the installation must be done by two qualified contractors.
- Page 3 Step 1 Pls remove the plaster board on the surface of concrete wall when assembling mount on the concrete wall. Hold wall plate unit ( A ) against wall at desired position on concrete wall, then using a pencil mark 4 hole locations. Then drill holes according pencil marks using 3/8" size drill bit to a depth of 2.5".
- Page 4 Step 2: Bracket Attach (B) to the back of TV, choose corresponding bolt,washer, spacer to fix the holes of TV rear. (Figure 3) CAUTION : Using incorrect bolts may damage your TV. Figure 3 j\m\n a\b\c e\f\g Step 3: Hang pre-assembled TV unit on the wall plate and then lock the safety screws . (Figure 4) CAUTION : This step must require 2 or more professional to finish.
- Page 5 Step 4: You may need loosen the bolts with Allen key (K) to adjust TV to your desired angle please remember to fasten the bolts tightly after adjustment. (Figure7) Figure 7 PAY EXTRA CARE AND ATTENTION WHEN YOU FASTEN TWO TV MOUNTS TO THE BACK PANEL OF TV IN STEP 2 .
