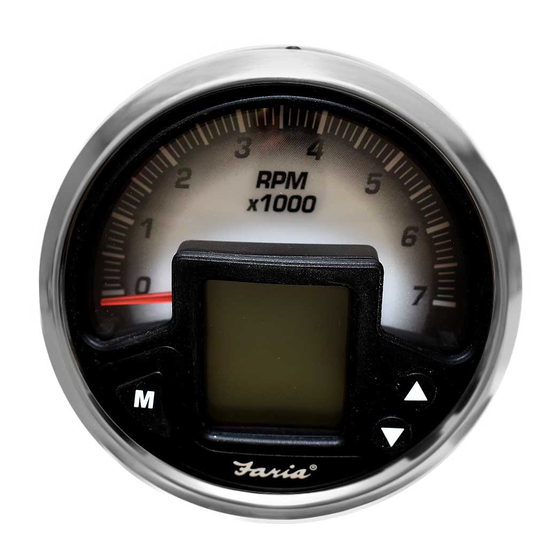

Faria MG2000 Quick Reference Card

Your Faria MG2000™ Gauge Package comes equipped with factory
recommended settings and displays. No modifications are necessary. For
advanced and custom settings, refer to your owner's manual.
ALARMS
To silence an alarm, press and hold "M"
is silenced.
An alarm will continue to reappear until the condition has been corrected. For
details on alarms, including User Defined Alarms, refer to your Owner's Manual.
NOTES
1. Some discoloration or "blackening" of the LCD may occur if the MG2000 is in
direct sunlight for a prolonged period. If this occurs, simply use the contrast
adjustment to enhance the visibility of the LCD.
2. Certain polarized sunglasses will cause the LCD display to seem to disappear.
If this happens, remove your polarized sunglasses and use the contrast
adjustment to increase the visibility of the LCD.
3. Use only soap and water when cleaning your MG2000 instruments. Certain
chemical cleaners will damage the fog-resistant lens on your instruments.
MG2000™ Quick Reference Card
on the Tachometer until the alarm
IS0243
ECR#6849 April 2007
LCD Contrast - Normal Operating Mode
Increases LCD contrast
Press and hold to invert LCD color
Decreases LCD contrast
Press and hold to invert LCD color
Instrument Lighting
Press "Up" and "Down" buttons
and
together until Tach beeps.
Increases Lighting
Decreases Lighting
Press "Up" and "Down" buttons
together until Tach beeps. This
and
saves your changes.
Scrolling
Press the "M" Mode button once to
enter Scroll mode.
Scrolls through your active displays
or
The MG2000 will return to the Default screen/
LCD Contrast mode after 4 seconds of
inactivity.
Edit / Set-up Mode
Press "M" mode and "Up" buttons
together to enter Edit mode.
and
Scrolls through your available
options.
or
Press together to select the item
and
to be adjusted
Press the "Up" or "Down" button
to make changes.
or
Press the "Up" and "Down" button
and
to save changes.
Press the "M" Mode button twice
to return to the Normal mode.
The MG2000 will return to the Default screen/
LCD Contrast mode after 40 seconds of
inactivity.
Fuel Flow
To achieve the most accurate Fuel Flow calculations,
the following steps are recommended after each
refueling.
Press the "M" Mode and "Up" buttons
together to enter the "Edit mode.
and
Scroll down until the LCD window
reads "RESET FUEL USED."
Press the Up and Down buttons
together until the LCD window reads
and
"RESET FUEL DONE."
If Tank is refilled to 100% Full
Use the Down button to scroll down
until the LCD window reads
"RESET FUEL TANK FULL."
Press the "Up" and "Down" buttons
together until the LCD window
and
reads "0.0 G."
Press the "Up" and "Down" button to
save changes.
and
Press the "M" Mode button twice to
return to the Normal mode.
If Tank is NOT refilled to 100% Full
Use the "Down" button to scroll
down until the LCD window reads
"SET AMOUNT OF FUEL."
Press the "Up" and "Down" buttons
together until the LCD window
and
reads "0.0 G."
Use to input TOTAL amount of fuel
in tank. (TOTAL amount of fuel is
the amount of fuel remaining
PLUS the amount of fuel added.)
Press the "Up" and "Down" button
to save changes.
and
Press the "M" Mode button twice
to return to the Normal mode.
