Order#:
S/N:
(Required for Warranty)
3200 Ventura X5
Whole House Fan
Installation and Operation Manual

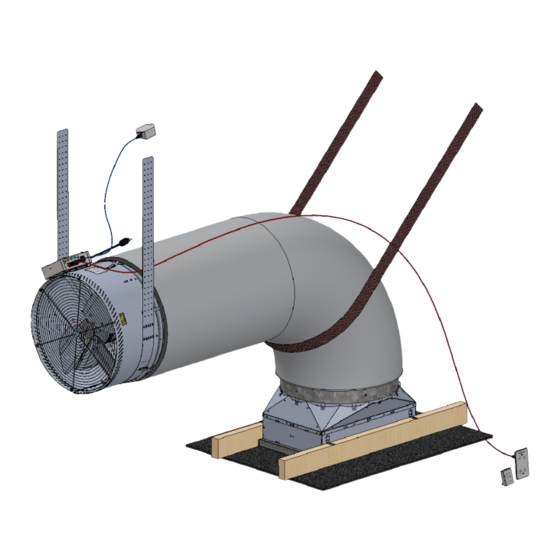

3200 Ventura
Whole House Fan with Gravity Air Door
Thank you for purchasing an AirScape® Whole House Fan.
Your fan has been designed to provide your home with natural, quiet, and energy-efficient cooling for many years.
Please take a few minutes to read over this manual and its accompanying documents to make sure you are
prepared to install the fan.
Before installing this fan, inspect it and all of its parts for any damage that may have been sustained during
shipping. DO NOT INSTALL DAMAGED EQUIPMENT. If you suspect this fan was damaged during shipping,
contact AirScape technical support by phone at 1.866.448.4187, or email at experts@airscapefans.com.
Whole House Fans are designed to be installed within a home's attic, which makes them and their sub-
components extremely difficult to access once installed. Test this fan outside of the attic Before in-stalling it.
Connect the fan to its controls and to a power supply, and ensure it operates properly by turning it on and cycling
through its speed settings. If any difficulties are encountered, contact AirScape technical support at
1.866.448.4187
or by email at
experts@airscapefans.com
AirScape 3200 Ventura Whole House Fan Installation and Operation Manual, 05052021
©AirScape, Inc., 2020. All Rights Reserved.
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AirScape 3200 Ventura X5
Summary of Contents for AirScape 3200 Ventura X5
- Page 1 Test this fan outside of the attic Before in-stalling it. Connect the fan to its controls and to a power supply, and ensure it operates properly by turning it on and cycling through its speed settings. If any difficulties are encountered, contact AirScape technical support at 1.866.448.4187 or by email at experts@airscapefans.com...
-
Page 2: Theory Of Operation
Homeowners are then forced to endure either uncomfortable hot indoor temperatures, or the expense of air conditioning. AirScape® and Ventura® whole house fans resolve this dilemma by exhausting hot indoor air out of, and drawing cool outdoor air into, the home. -
Page 3: Safety Information
Venting requirements vary by fan. We recommend a minimum of 1 square feet of “net free” ventilation area per 500 cfm at a fan’s highest speed. The minimum attic venting requirements for each model of AirScape® and Ventura® whole house fan is given in the chart at above. -
Page 4: Handling Instructions
• Cordless screwdriver with Phillips head and miscellaneous drill bits • High quality caulk • AirScape MAF (Metal Adjustable Framing 2x4, 2x6, Purchased Seperately) or Lumber matching dimensions of the attic joists (e.g. 2"x6", 2"x8", etc.) and cut to fit according to the instructions in the Installation section •... - Page 5 Ceiling or Wall? AirScape doors can be mounted horizontally or vertically. We recommend installing this fan’s door in the ceiling in a horizontal orientation, keeping in mind that locating the fan as high as possible helps exhaust the hottest indoor air from the home.
- Page 6 “hold” the unit in place, do not over-tighten which may distort the door unit. NOTE: Your Configuration may look different due to installation options AirScape 3200 Ventura Whole House Fan Installation and Operation Manual, 05052021 ©AirScape, Inc., 2020. All Rights Reserved. Page 6...
- Page 7 Pre-Drill ALL the Grille mounting holes. Install the Grille with the included screws. AirScape 3200 Ventura Whole House Fan Installation and Operation Manual, 05052021 ©AirScape, Inc., 2020. All Rights Reserved. Page 7...
-
Page 8: Installing The Fan Assembly
It is acceptable to mount the wiring to the Duct with a small piece of tape. If the Duct’s Mylar cover was torn, a piece of tape can be used to seal the tear to seal the duct again. AirScape 3200 Ventura Whole House Fan Installation and Operation Manual, 05052021 ©AirScape, Inc., 2020. All Rights Reserved. -
Page 9: Installation Of The Controller
Connect to RMT and Receiver 20 ft Power Cable Connect to Wall Outlet RED 50 ft, CAT5 Shielded Ethernet Cable Connect to W/S and DTC AirScape 3200 Ventura Whole House Fan Installation and Operation Manual, 05052021 ©AirScape, Inc., 2020. All Rights Reserved. Page 9... -
Page 10: Start-Up And Operation
See the Power Indicator shown above. If the Power Indicator is not illuminated; double-check the connections between the fan and the controller, between the fan and the power outlet and power at the outlet. AirScape 3200 Ventura Whole House Fan Installation and Operation Manual, 05052021 ©AirScape, Inc., 2020. All Rights Reserved. -
Page 11: Operating Tips
The AirScape Unit has ten speed settings. Turn on the Fan by touching FAN UP or TIMER UP. The fan will start at minimum speed. Green LED’s will illuminate to indicate the speed setting. Note: there is no delay on a unit with gravity doors. - Page 12 ** Time delay allows the door(s) to open before the fan starts Rear View of the Digital Touch Controller RJ45 Jack Jumper Dip Switch AirScape 3200 Ventura Whole House Fan Installation and Operation Manual, 05052021 ©AirScape, Inc., 2020. All Rights Reserved. Page 12...
-
Page 13: Maintenance
Suggestion 4: Check for red LED response on DTC when pressing the remote buttons. If problems are encountered, please take a few moments to run through the troubleshooting procedures described on the blue Warranty Card. If these suggestions do not work, contact AirScape technical support at 1.866.448.4187 or by email at experts@airscapefans.com... - Page 14 ** Tested at 45º and 1 meter from source. Due to continual product improvement, performance ratings and specifications are subject to change without notice. NOTES: AirScape 3200 Ventura Whole House Fan Installation and Operation Manual, 05052021 ©AirScape, Inc., 2020. All Rights Reserved. Page 14...
- Page 15 FAN BOX EL-204 Shunt/Jumper (actuator power) 24VDC Resetable Circuit Breaker FAN BOX BOARD 20 foot Power Cord 120VAC, 60Hz, 1 Phase, 2.5A AirScape 3200 Ventura Whole House Fan Installation and Operation Manual, 05052021 ©AirScape, Inc., 2020. All Rights Reserved. Page 15...
