INSTALLATION AND OPERATION MANUAL
Thank you for purchasing a Ventura
provide many years of natural, quiet, and energy-efficient cooling.
Please take a few minutes to read over this manual and its accompanying documents to make sure you
are prepared to install the fan. In particular:
The homeowner/resident should read the WHERE TO LOCATE section so that the fan will be correctly
located to maximize its effectiveness and efficiency.
The VENTILATION REQUIREMENTS section is also particularly important, as it describes the minimum
attic ventilation neccessary to operate the fan.
The INSTALLATION: BACKDRAFT DAMPER section contains important information regarding the con-
straints within which this fan's backdraft damper must be installed.
Before installing this fan, inspect it and all of its parts for any damage it may have sustained during ship-
ping. DO NOT INSTALL DAMAGED EQUIPMENT. If you suspect this fan has been damaged during
shipping, contact AirScape technical support by phone at 1.866.448.4187, or email at experts@airscape-
fans.com.
Whole House Fans are designed to be installed within a home's attic, which makes them and their sub-
components extremely difficult to access once installed. TEST THIS FAN OUTSIDE OF THE ATTIC
BEFORE INSTALLING IT PERMANENTLY.
Ventura 2.7 Whole House Fan Installation Manual, 03072016
©AirScape, Inc., 2016. All Rights Reserved.

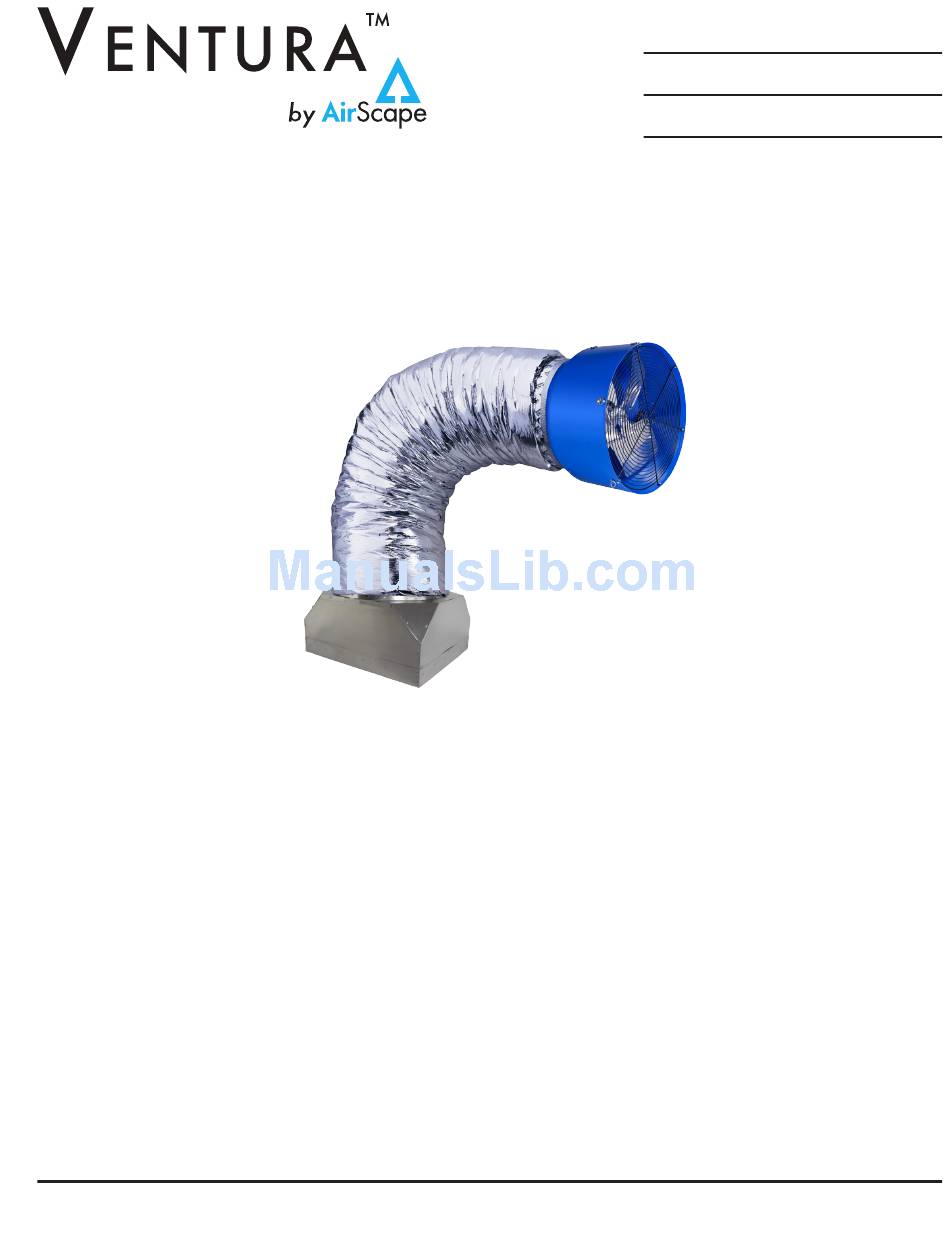

VENTURA 2.7
WHOLE HOUSE FAN
whole house fan by AirScape
ORDER #:
S/N:
®
MAC:
(Required for Warranty)
.
®
This fan has been designed to
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ventura 2.7 and is the answer not in the manual?

Questions and answers

Summary of Contents for AirScape ventura 2.7

  • Page 1 Before installing this fan, inspect it and all of its parts for any damage it may have sustained during ship- ping. DO NOT INSTALL DAMAGED EQUIPMENT. If you suspect this fan has been damaged during shipping, contact AirScape technical support by phone at 1.866.448.4187, or email at experts@airscape- fans.com.
  • Page 2: Safety Information

    Lumber matching dimensions of the attic joists (e.g. 2”x6”, 2”x8”, etc.) and cut to fit according to the INSTALLATION: FRAMING section. • At least 4 additional wood screws. • A Ladder Ventura 2.7 Whole House Fan Installation Manual, 03072016 Page 2 ©AirScape, Inc., 2016. All Rights Reserved.
  • Page 3: Electrical Requirements

    Consult an electrician if necessary. All wiring and connections must be made according to this manual and acceptable wiring standards. All local codes must be followed. Ventura 2.7 Whole House Fan Installation Manual, 03072016 Page 3 ©AirScape, Inc., 2015. All Rights Reserved.
  • Page 4: Ventilation Requirements

    We recommend a minimum of 1 square feet of “net free” ventilation area per 500 cfm at a fan’s highest speed. Therefore, this Ventura 2.7 whole house fan requires at least 6 square feet of net free ven- tilation area for proper operation.
  • Page 5 • Within the attic, locating the fan near an electrical outlet or power supply can minimize the need for ad- ditional electrical work. Ventura 2.7 Whole House Fan Installation Manual, 03072016 Page 5 ©AirScape, Inc., 2015. All Rights Reserved.
  • Page 6 Procedures for this step are included in the INSTALLATION: GRILLE section of this manual. The center joist across the opening will not significantly disturb the flow of air to the fan. Figure 2a Figure 2b Ventura 2.7 Whole House Fan Installation Manual, 03072016 Page 6 ©AirScape, Inc., 2016. All Rights Reserved.
  • Page 7 The “X” axis must NEVER be installed at any angle (as shown in figures 7a and 7b). Installing the backdraft damper outside of these constraints will prevent its doors from closing properly! Ventura 2.7 Whole House Fan Installation Manual, 03072016 Page 7 ©AirScape, Inc., 2016. All Rights Reserved.
  • Page 8 Figure 8 below shows the fan assembly, ductwork, and backdraft damper as they should appear when fully installed: Figure 8 Ventura 2.7 Whole House Fan Installation Manual, 03072016 Page 8 ©AirScape, Inc., 2016. All Rights Reserved.
  • Page 9 Lastly, use the provided foil tape to seal the joints between the fan assembly and ductwork, the ductwork and the transition cone, and the transition cone and backdraft damper. Ventura 2.7 Whole House Fan Installation Manual, 03072016 Page 9 ©AirScape, Inc., 2016. All Rights Reserved.
  • Page 10: Installation & Wiring

    Connect the red CAT5 cable to the red W/S port. Then, run the cable through the attic and down a wall to the desired location for the hardwired wall switch. This cable is unshielded: Do not run it parallel to 110V or greater wiring. Ventura 2.7 Whole House Fan Installation Manual, 03072016 Page 10 ©AirScape, Inc., 2016. All Rights Reserved.
  • Page 11 RMT port. AirScape remote control transmitters and recievers are pre-merged at our factory. They may, however, be- come unmerged prior to installation. A remote control transimitter that has become unmerged from its re- ciever will not be able to control the fan.
  • Page 12: Start-Up And Operation

    Each of this fan’s control interfaces (hardwired wall switch or wireless remote) looks and operates the same: There are four buttons that turn the fan on or off, and set its timer. Because the Ventura 2.7 is a single speed fan, only three of these four buttons are operational. The appearance of these buttons is...
  • Page 13: Important Operating Tips

    If the damper flaps do not open or close, visually inspect the damper for any debris obstructing their movement. If the suggestions above do not work, contact AirScape technical support at 866.448.4187 or by email at experts@airscapefans.com for further assistance.
  • Page 14: Warranty

    Should a covered defect occur during the warranty period and Customer notifies AirScape, Customer’s sole and exclusive remedy will be, at AirScape’s sole option and expense, to repair or replace the product. Replacement products or parts may be new or reconditioned or a comparable version of the defective item.
  • Page 15: Specifications

    Installs easily on 24” or 16” O/C framing Warranty: 3 years *Due to our continual product improvement efforts, performance ratings and specifications are subject to change without notice. Ventura 2.7 Whole House Fan Installation Manual, 03072016 Page 15 ©AirScape, Inc., 2016. All Rights Reserved.
  • Page 16: Installation Notes

    INSTALLATION NOTES Ventura 2.7 Whole House Fan Installation Manual, 03072016 ©AirScape, Inc., 2016. All Rights Reserved.
