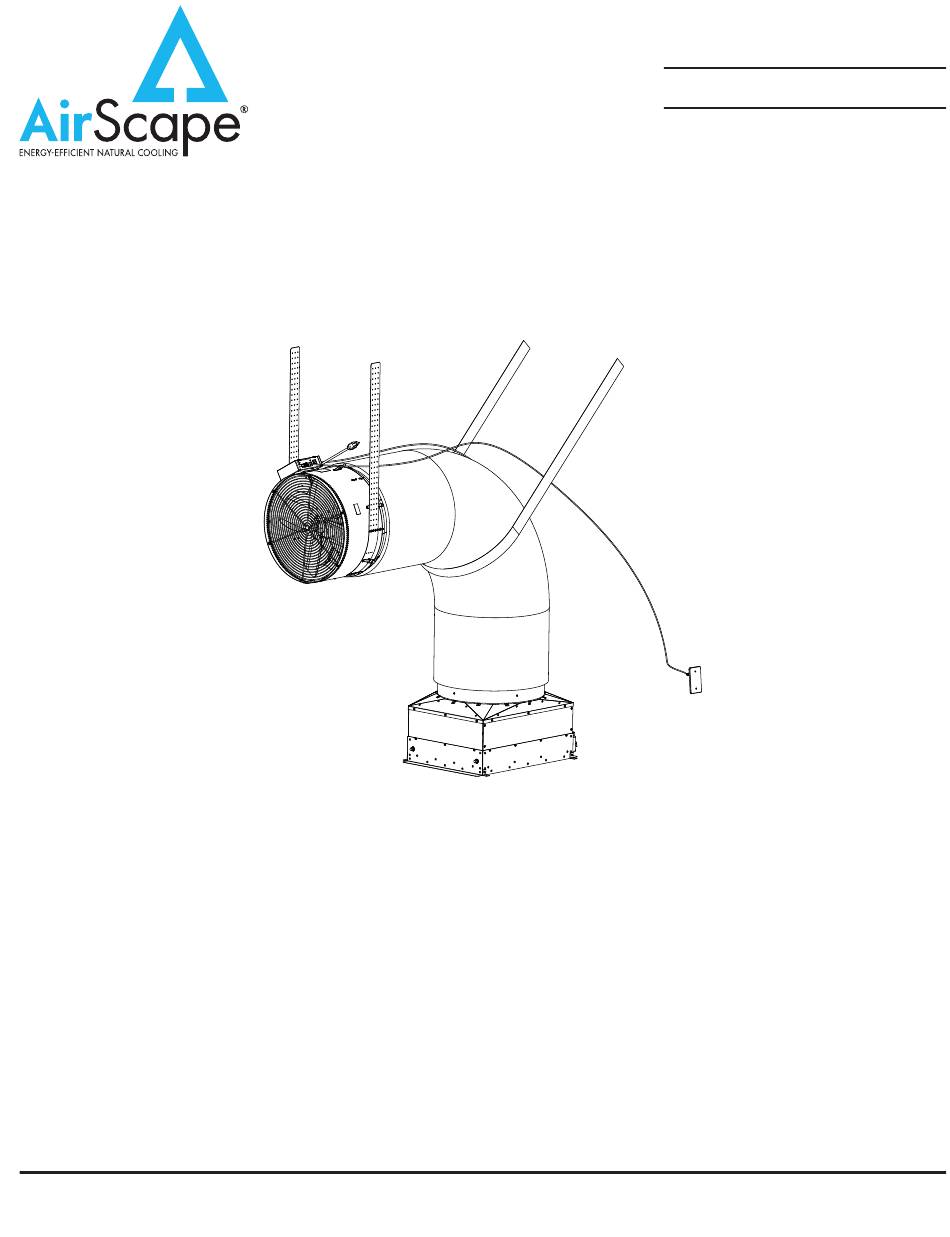

AirScape 3200 Installation & Operation Manual

Whole house fan
Hide thumbs Also See for 3200:
Table of Contents

Advertisement

Quick Links

Download this manual
Thank you for purchasing this AirScape
provide your home with natural, quiet, and energy-efficient cooling for many years.
Before installing this fan, inspect it and all of its parts for any damage it may have sustained
during shipping. DO NOT INSTALL DAMAGED EQUIPMENT. If you suspect this fan
has been damaged during shipping, contact AirScape technical support by phone
at 1.866.448.4187, or email at experts@airscapefans.com.
Whole house fans are installed within a home's attic, which makes them extremely difficult
to access once installed. TEST THIS FAN AND POWERED AIRLOCK™ OUTSIDE OF
THE ATTIC BEFORE INSTALLING THEM. Connect the fan and Powered AirLock to their
controls and to a power supply, and ensure they operate properly by turning the fan on, cy-
cling through its speed settings, and turning the fan off. If any difficulties are encountered,
contact AirScape technical support at the numbers listed above.
AirScape 3200 Whole House Fans Installation Manual, 03222017
©AirScape, Inc., 2017. All Rights Reserved.
WHOLE HOUSE FAN
INSTALLATION & OPERATION MANUAL
ORDER #:
3200
whole house fan. Your fan has been designed to
®
S/N:
(Required for Warranty)
Page 1

Advertisement

Table of Contents
loading

Related Manuals for AirScape 3200

Summary of Contents for AirScape 3200

  • Page 1 Before installing this fan, inspect it and all of its parts for any damage it may have sustained during shipping. DO NOT INSTALL DAMAGED EQUIPMENT. If you suspect this fan has been damaged during shipping, contact AirScape technical support by phone at 1.866.448.4187, or email at experts@airscapefans.com.

  • Page 2: Safety Information

    NEVER handle the fan using any of these brackets. AirScape 3200 Whole House Fans Installation Manual, 03222017 Page 2 ©AirScape, Inc., 2017. All Rights Reserved.
  • Page 3 UNIT PARTS & DIMENSIONS Fan Assembly Powered AirLock* 16¼" 29½" 19¼" Flexible Acoustic Duct *Powered AirLock is shown above as it appears once fully assembled. AirScape 3200 Whole House Fans Installation Manual, 03222017 Page 3 ©AirScape, Inc., 2017. All Rights Reserved.
  • Page 4 (hand tools can also be used). Attach the first side to the base using 4 of the provided assembly screws. AirScape 3200 Whole House Fans Installation Manual, 03222017 Page 4 ©AirScape, Inc., 2017. All Rights Reserved.
  • Page 5 12 assembly screws. Attach the mounting brackets to the base using the last 4 assembly screws. DO NOT OVER-TIGHTEN SCREWS AirScape 3200 Whole House Fans Installation Manual, 03222017 Page 5 ©AirScape, Inc., 2017. All Rights Reserved.

  • Page 6: Fan Installation

    4 provided mounting screws through the mounting brackets (if your home's framing is 24" on-center) or through the flange (if your home's framing is 16" on-center). AirScape 3200 Whole House Fans Installation Manual, 03222017 Page 6 ©AirScape, Inc., 2017. All Rights Reserved.
  • Page 7 6 provided collar screws. Once the fan, ductwork, and Powered AirLock have been successfully connected, Finish by sealing this seam with provided aluminum tape. AirScape 3200 Whole House Fans Installation Manual, 03222017 Page 7 ©AirScape, Inc., 2017. All Rights Reserved.
  • Page 8 Next, mount the grille to the framing using the eight white wood screws provided. We strongly recommend pre- drilling holes in the framing for these screws; be careful to prevent them from stripping. AirScape 3200 Whole House Fans Installation Manual, 03222017 Page 8...

  • Page 9: Start-Up And Operation

    Whenever the fan is turned off, the Powered AirLock’s doors will close tightly within about 60 seconds. AirScape 3200 Whole House Fans Installation Manual, 03222017 Page 9 ©AirScape, Inc., 2017. All Rights Reserved.
  • Page 10 If problems are encountered, please take a few moments to run through the troubleshooting procedures described on the blue Warranty Card. If these suggestions do not work, contact AirScape technical sup- port at 1.866.448.4187 or by email at experts@airscapefans.com for further assistance.

  • Page 11: Specifications

    2ND GENERATION CONTROLS UPGRADE (NOT INCLUDED) AirScape's "2nd Generation Control Package" is an available accessory for this fan. It is not included as part of this fan’s standard controls. The 2nd Gen. Controls include a webserver that allows you to operate your fan from any smartphone, tablet, or computer with access to your home's local area network ("LAN").

  • Page 12: Installation Notes

    INSTALLATION NOTES AirScape 3200 Whole House Fans Installation Manual, 03222017 Page 12 ©AirScape, Inc., 2017. All Rights Reserved.
