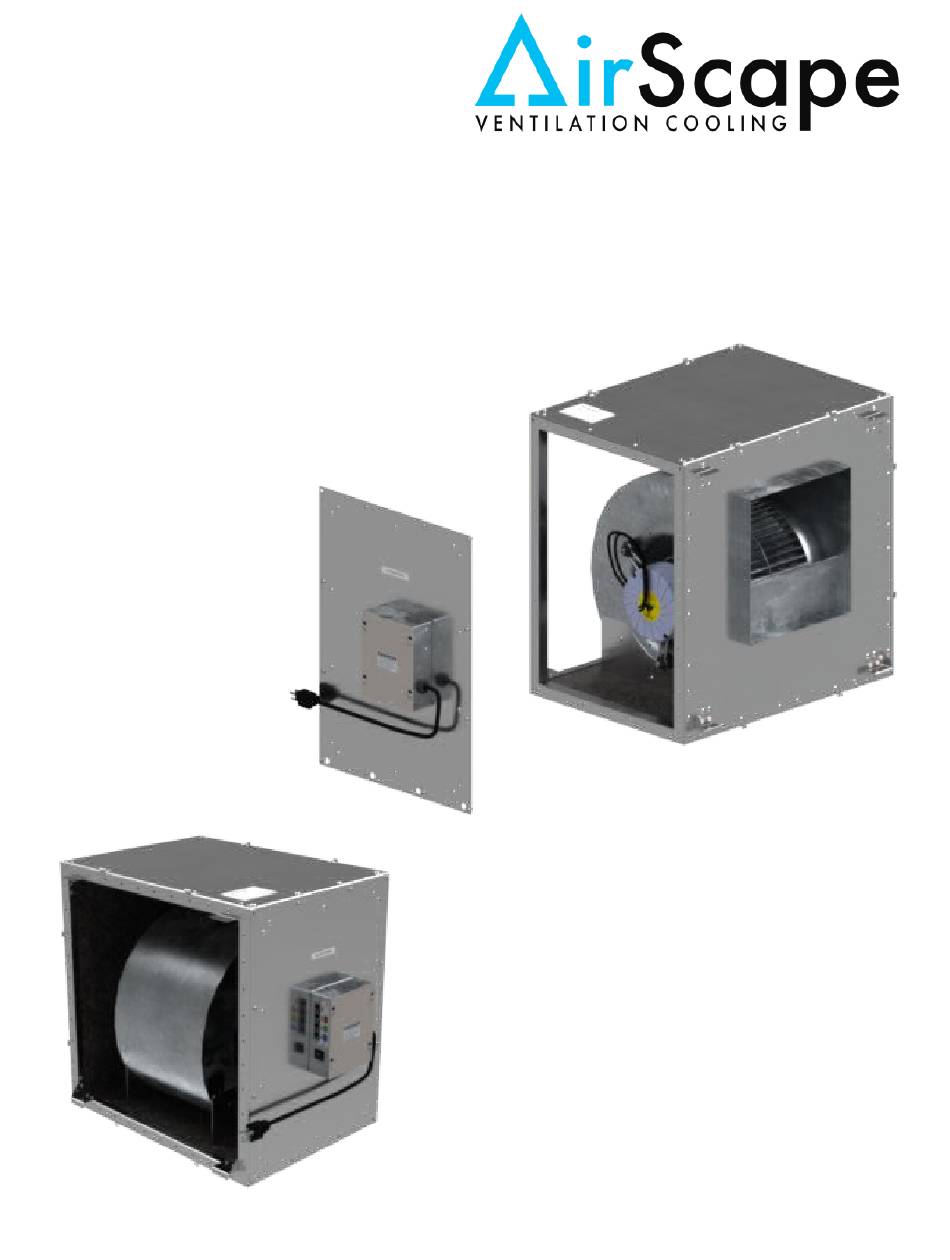

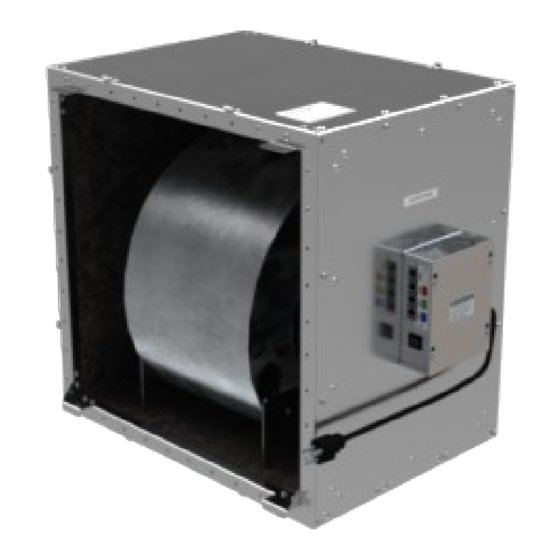

- Page 1 AH2-CF-1600 AH2-CF-1900 Air Handler 2 – Cabinet Fan Installation and Operation Manual Thank you for your purchase! Images: AH2-CF-1900 © AirScape CF1600 / CF1900 Cabinet Fan-IOM, January 2023, All Rights Reserved.
- Page 2 INSTALLATION OF THE DUCT INSTALLATION OF WIRING AND CONTROL PURCHASE OPTIONS (not included) START-UP AND OPERATION DTC CONTROLLER FAN BOX BOARD MAINTENANCE G LO S SARY TROUBLE SHOOTING SPECIFICATIONS ELECTRICAL SCHEMATICS © AirScape CF1600 / CF1900 Cabinet Fan-IOM, January 2023, All Rights Reserved.
-
Page 3: Safety Information
Depending on the location of existing outlets in the attic, the installation of an additional outlet may be required. NOTE: if a GFCI is used it MUST be a Motor Rated GFC. © AirScape CF1600 / CF1900 Cabinet Fan-IOM, January 2023, All Rights Reserved. - Page 4 1.866.448.4187 These can be purchased, please call us for your custom size. We strongly advice using butyll tape to seal all unit-adapter or unit-duct connections. © AirScape CF1600 / CF1900 Cabinet Fan-IOM, January 2023, All Rights Reserved.
- Page 5 Mount the its locking tabs by template to mark the DTC to the bracket tightening the silver hole location with the provided screws white screws © AirScape CF1600 / CF1900 Cabinet Fan-IOM, January 2023, All Rights Reserved.
-
Page 6: Purchase Options
- a V-Bank Filter Box Module (AH2-FB) - an Air Inlet Selector (AH2-AIS) - a Hot Water Coil Box (AH2-CB) - Air Handler Duct Adapters for Intake and Exhaust © AirScape CF1600 / CF1900 Cabinet Fan-IOM, January 2023, All Rights Reserved. -
Page 7: Start-Up And Operation
As shown, there are four buttons on your fan’s control interface: The AirScape WHF has ten speed settings. Turn on the Fan by touching FAN UP or TIMER UP. Its door(s) will open and there will be a 10 second delay before the fan begins to operate (PAL’s / Lift-Lock Only). The fan will start at minimum speed. - Page 8 Most fans have a PWM controlled motor, but newer CF’s can be 0-10VDC controlled. ** Time delay allows the door(s) to open before the fan starts Rear View of the Digital Touch Controller RJ45 Jack Speed Control Format Jumper Dip Switch © AirScape CF1600 / CF1900 Cabinet Fan-IOM, January 2023, All Rights Reserved.
- Page 9 Another way would be to use a relay or current switch that is activated when the appliance is turned on. An Fire Alarm may call for the ”InterLock” as well © AirScape CF1600 / CF1900 Cabinet Fan-IOM, January 2023, All Rights Reserved.
-
Page 10: Maintenance
Your AirScape Fan has been factory tested. If you encounter problems with the unit, please take a few minutes to run through the following troubleshooting procedures before calling for technical support. - Page 11 If problems are encountered, please take a few moments to run through the troubleshooting procedures described on the blue Warranty Card. If these suggestions do not work, contact AirScape technical support at 1.866.448.4187...
-
Page 12: Specifications
3 years parts, 1 years controls * Actual performance will vary from installation to installation. Due to continual product improvement, performance ratings and specifications are subject to change without notice. © AirScape CF1600 / CF1900 Cabinet Fan-IOM, January 2023, All Rights Reserved. - Page 13 AIRSCAPE 101 - RESOURSE NOTES: © AirScape CF1600 / CF1900 Cabinet Fan-IOM, January 2023, All Rights Reserved.
-
Page 14: Electrical Schematic
EL-728 Actuator Harness EL-9013 24V Actuator* 20 foot Power Cord (cover off) 120VAC, 1 Phase, 7.8A Max. * Note: IF YOU PURCHASED THE AIS, showing one actuator Clutch © AirScape CF1600 / CF1900 Cabinet Fan-IOM, January 2023, All Rights Reserved.
