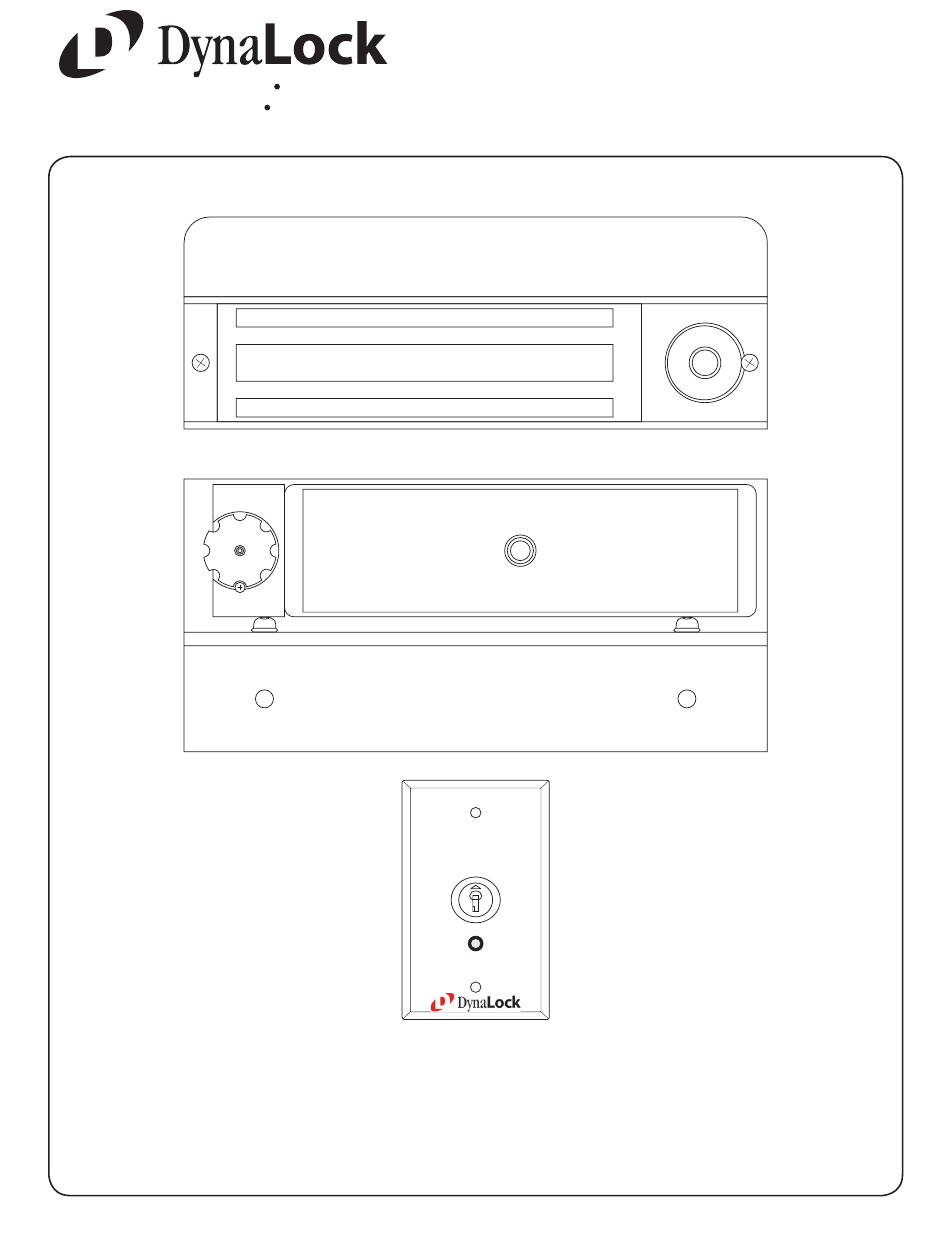

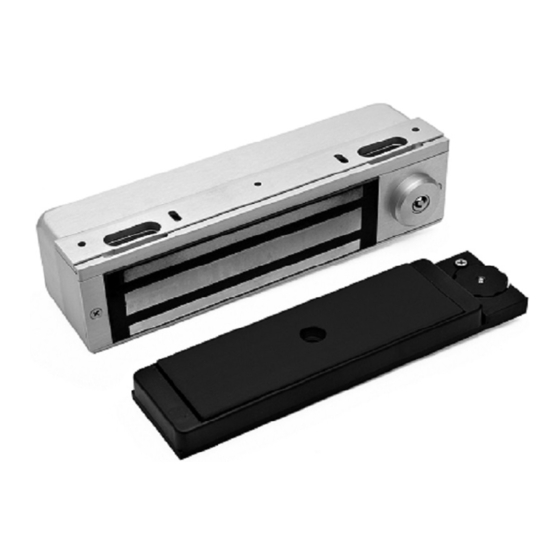

- Page 1 MODEL 3101B-TJ101 DELAY EGRESS SYSTEM 705 Emmett Street Bristol, CT 06010 WIRING INSTRUCTIONS 1-877-DynaLock www.dynalock.com...
-
Page 2: Basic Setup
MODEL 3101B-TJ101 DELAY EGRESS SYSTEM 705 Emmett Street Bristol, CT 06010 WIRING INSTRUCTIONS 1-877-DynaLock www.dynalock.com BASIC SET-UP Remove the Electronics Cover to expose the circuit board assembly. STANDARD SOFTWARE 1 2 3 4 VERSION 2K1.1 LED 1 CONNECTOR 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24... -
Page 3: Basic Wiring
(N.C.) dry contacts from fire panel (check fire alarm control jumper “FA” - page 1). When the fire panel trips, the 3101B-TJ101 will release, the audible will sound a constant tone and the bi-color LED (LED1) will change to green. - Page 4 With the door closed and latched apply input power to terminals 1 & 2. Slide selector switch (DS1) #1 to the ON position to activate the Set-Up mode. EGRESS SENSOR Rotate the on-board keyswitch counter-clockwise. The 3101B-TJ101 should ADJUSTMENT WHEEL now be unlocked (LED1-OFF).
-
Page 5: Audible Signal
MODEL 3101B-TJ101 DELAY EGRESS SYSTEM 705 Emmett Street Bristol, CT 06010 WIRING INSTRUCTIONS 1-877-DynaLock www.dynalock.com SEPERATE 7050 KEYSWITCH OPERATION POSITION DESCRIPTION CENTER NORMAL / LOCKED CLOCKWISE (SPRING LOADED) RESET AFTER DELAY EGRESS ALARM COUNTER-CLOCKWISE BYPASS / UNLOCKED WITHOUT ALARM INDICATOR & AUDIBLE DESCRIPTIONS... -
Page 6: Optional Set-Up
MODEL 3101B-TJ101 DELAY EGRESS SYSTEM 705 Emmett Street Bristol, CT 06010 WIRING INSTRUCTIONS 1-877-DynaLock www.dynalock.com OPTIONAL SET-UP - System Selector Switches Set the System Selector Switches (DS1) to address your specific system requirements. The normal factory setting is all switches off. - Page 7 LED 1 located on the 7050 faceplate. The 3101B-TJ101 circuit board is supplied with flying lead connections for LED 1 and the 7050 key switch. These leads must be connected to match the same color flying leads coming from the 7050-LED. (See above illustration).
-
Page 8: Option Wiring
9 & 10 will immediately release the across terminals 5 & 6 will reset and re-lock the lock without alarm. The door will remain unlocked for a 3101B-TJ101 following delayed egress and re- period of time controlled by on-board adjustable timer closure of door. -
Page 9: Typical Wiring
MODEL 3101B-TJ101 DELAY EGRESS SYSTEM 705 Emmett Street Bristol, CT 06010 WIRING INSTRUCTIONS 1-877-DynaLock www.dynalock.com OPTION WIRING MONITORING OUTPUT DESCRIPTIONS TYPICAL WIRING DELAY EGRESS OUTPUT NC C NO 13 14 15 Delay egress alarm monitoring. SPDT dry relay contacts rated 1Amp @ 24 Volts... - Page 10 (SEE PAGE 6) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 3101B-TJ101 CIRCUIT BOARD NOTES: Harnesses J6 and J8 are only present if the 3101B is equipped with the DYN - Dynastat Force Sensor and/or DSM - Door Status Switch Options.
-
Page 11: Installer Notes
MODEL 3101B-TJ101 DELAY EGRESS SYSTEM 705 Emmett Street Bristol, CT 06010 WIRING INSTRUCTIONS 1-877-DynaLock www.dynalock.com INSTALLER NOTES Page 11 3101B-TJ101 MANUAL 03/11... - Page 12 PLEASE DELIVER THIS MANUAL AND THE KEYS TO THE END USER UPON COMPLETION OF THE 3101B-TJ101 INSTALLATION FOR PRODUCT SUPPORT AND PARTS ORDERING INFORMATION CONTACT: DynaLock Corp. 705 Emmett Street Bristol, CT 06010 Bus: (877) 396-2562 Toll-Free USA (860) 582-4761...
