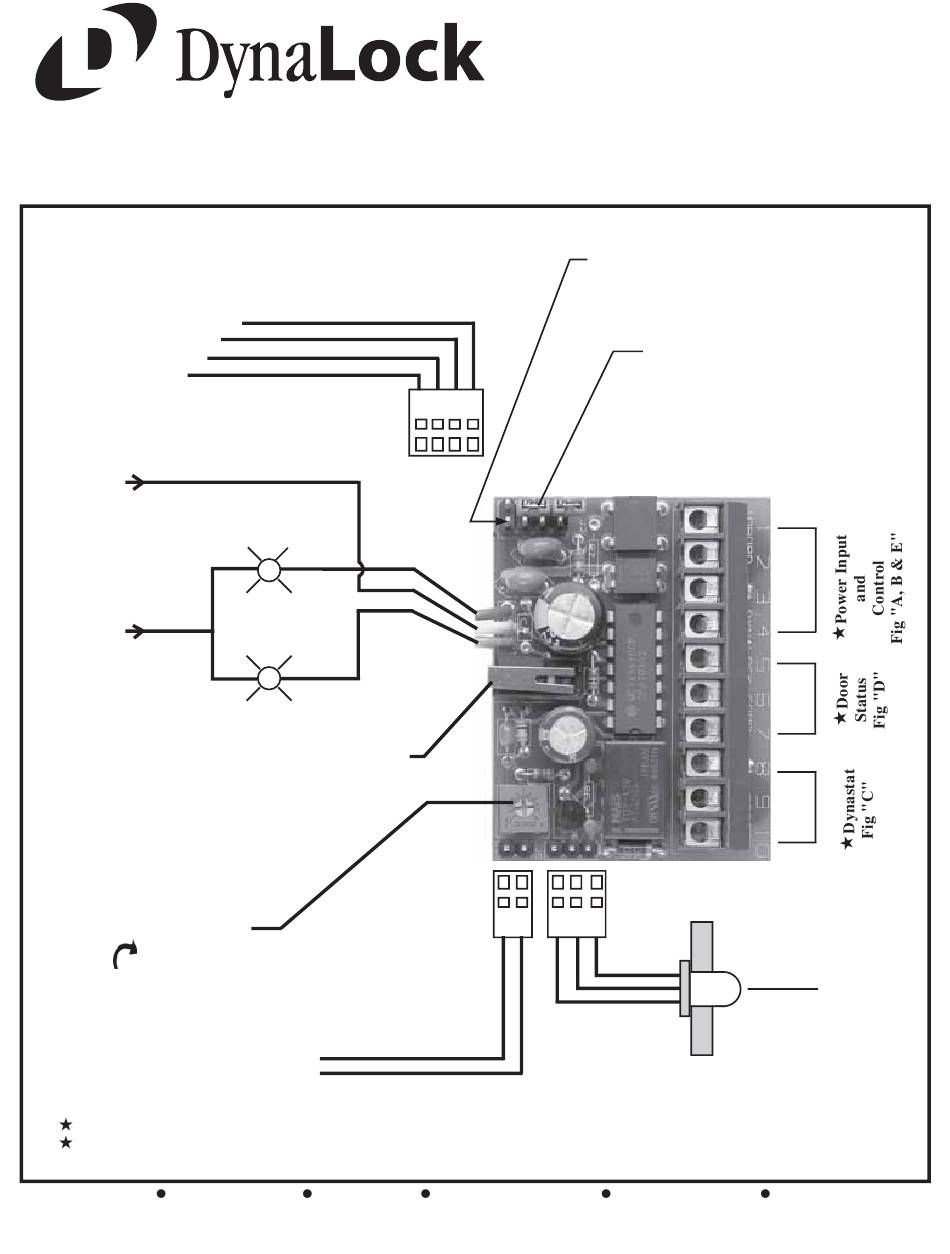

3000/ 3000LC/ 2000 SERIES CIRCUIT BOARD DESCRIPTION
Refer to Page 2 & 3 for wiring and voltage instructions
COIL CONNECTOR PLUG
The Coil Connector is not polarized
and may go on in either direction.
Wht
Blk
Wht
Blk
POWER INPUT
FOR ATS
OPTION
ATS OPTION - WIRING
Indicator device, by others,
illuminates / sounds
when access cover is removed.
Contact Rating: SPDT @ 0.5A
TIME DELAY ADJ.
CW
to increase.
Range 1-80 seconds
see fi g. "E"
DYNASTAT
CONNECTOR
3000/2000 series mag lock accepts 12/24 VAC/DC

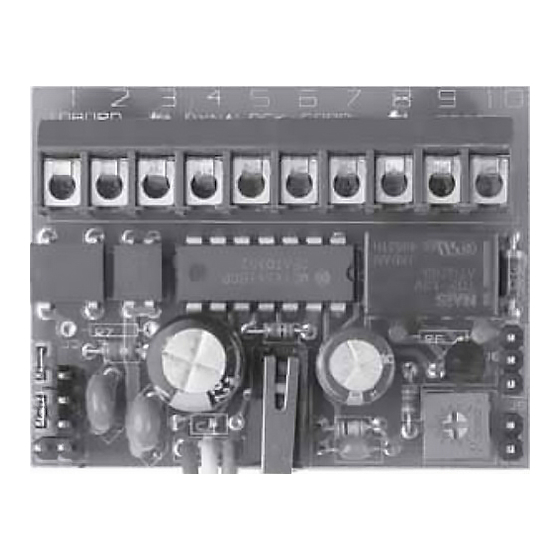

Circuit board shown fully loaded, with every option
DynaLock Corp.
705 Emmett Street
PLEASE READ BEFORE ATTEMPTING INSTALLATIONS
4 Pin Plug
COM.
NO
RED
WHT
SECURE
GRN
NC
TAMPER
ATS
SWITCH
2 Pin Plug
not polarized
Wht
Wht
P.O. Box 2728
Electromagnetic Locking Systems
COIL PLUG RECEPTACLE
3 Pin Plug
L2 OPTION - FUNCTION
Requires Dynastat option to work.
Red = secure / Green = unsecure
Reversing plug direction changes
light indication.
Bristol, CT 06011-2728
1
VOLTAGE SELECTION
JUMPERS -
See page 2
LOCK HOUSING
1-877-DYNALOCK
www.dynalock.com
LED
Advertisement
Table of Contents
Related Manuals for DynaLock 3000 Series
Summary of Contents for DynaLock 3000 Series
- Page 1 Red = secure / Green = unsecure 3000/2000 series mag lock accepts 12/24 VAC/DC Reversing plug direction changes Circuit board shown fully loaded, with every option light indication. DynaLock Corp. 705 Emmett Street P.O. Box 2728 Bristol, CT 06011-2728 1-877-DYNALOCK...
-
Page 2: Wiring Instructions
HOW TO SET VOLTAGE Voltage is set by proper placement of the blue jumper caps on 4 exposed pins Set for 12 Volts Set for 24 Volts Removable Jumpers 2 jumpers 1 jumper Voltage Selection FACTORY SET FOR 24 VOLTS WIRING INSTRUCTIONS 3000/2000 3000/2000... -
Page 3: Electrical Specifications
For additional system wiring information, refer to the installation documentation furnished with the external hardware and / or peripheral devices (I.E. power supply, station controls, keypad, card readers, etc.) supplied by DynaLock and / or others. ELECTRICAL SPECIFICATIONS OPERATING VOLTAGES... -
Page 4: Troubleshooting Tips
TROUBLESHOOTING TIPS SYMPTOM POSSIBLE CHECK FOR CAUSE DOOR WILL NOT LOCK NO INPUT POWER CHECK ALL CONNECTIONS. OR NO MAGNETIC CHECK FOR VOLTAGE AT POWER SOURCE HOLDING FORCE AND LOCK TERMINAL STRIP. REVERSED POLARITY IF A LOCK IS OPERATING ON DC VOLTAGE CHECK FOR REVERSED POLARITY. -
Page 5: 12 Vdc Input
Phone:(860)582-4761 Fax:(860)585-0338 GENERAL INFORMATION DynaLock 3000 and 2000 Series electromagnetic locks equipped with the LP - Low Power Option are confi gured to operate exclusively on 12V AC/DC input voltage. Current draw is 0.16 Amps for single models and 0.32 Amps for double models. - Page 6 DynaLock SERIES 2000/3000 x LCB ELECTROMAGNETIC LOCK 705 Emmett Street Bristol, CT 06011-2728 WIRING INSTRUCTIONS Phone:(860)582-4761 Fax:(860)585-0338 12 VOLT DC OPERATION BLACK WHITE BLACK WHITE NOTE: TO PROTECT OTHER ELECTRONIC DEVICES IN SYSTEM CONNECT THE SUPPLIED MOV ACROSS THE LEADS AS SHOWN ABOVE.
