DynaLock 2011 Installation Instructions

705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com
PLEASE DELIVER THIS MANUAL
TO THE END-USER UPON COMPLETION
OF THE INSTALLATION
FOR PRODUCT SUPPORT AND PARTS
ORDERING INFORMATION CONTACT:
DynaLock Corp.
705 Emmett Street
Bristol, CT 06010
Bus: (877) 396-2562 Toll-Free
(860) 582-4761
Fax: (860) 585-0338
DYNALOCK ON THE INTERNET:
E-mail: info@dynalock.com
Website: www.dynalock.com
NYC Mea #23-92-E
GWXT Auxiliary Lock
CSFM
M2011MOUNTING
MODEL 2011 & 3000LC SINGLE
OUTSWING ELECTROMAGNETIC LOCK
INSTALLATION INSTRUCTIONS
Page 8
705 Emmett Street Bristol, CT 06010
1-877-DynaLock www.dynalock.com

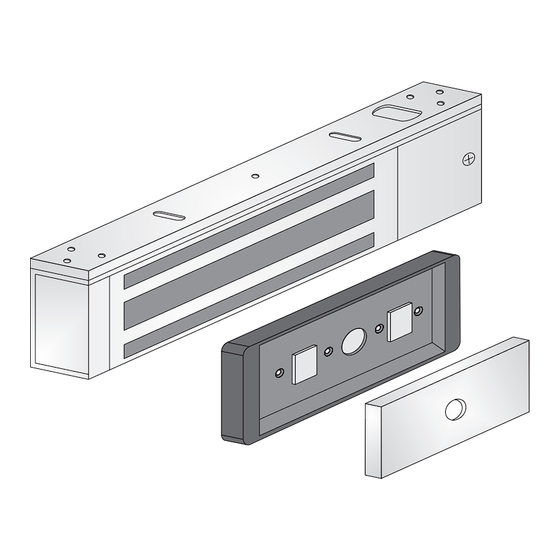

2011/3000LC LOCK ASSEMBLY
ARMATURE
Care must be taken that the lock face and armature face are kept free of dirt, rust, paint, or any other obstruction
which may interfere with the lock and armature making good contact. These faces may be cleaned with a non-
abrasive pad and wiped with an oil dampened cloth.
Familiarize yourself with the door and frame conditions. The lock must mount rigidly to the face of the door frame
header. The door mounted armature is supplied with an adjustable mounting bracket and hardware that allows it
to pivot slightly to compensate for reasonable misalignment.
NOTE: If this lock is supplied with the DSM option be certain that disc magnets are present inside the
armature housing.
After mechanical installation is complete the lock needs to be wired to a 12 or 24 VDC/VAC power source. Once low
voltage power is supplied the unit is fully operational. All other wiring is for selected options. Refer to the separate
wiring instructions included for further information.
12/10 M2011MOUNTING
MODEL 2011 & 3000LC SINGLE
OUTSWING ELECTROMAGNETIC LOCK
INSTALLATION INSTRUCTIONS
INSTALLATION DESCRIPTION
The Series 2011 is a 1200 pound holding force
(the 3000LC is a 1500 pound holding force)
electromagnetic lock designed to secure a single
outswing door. The lock requires both installation
procedures as described herein and in the separate
wiring instructions included.

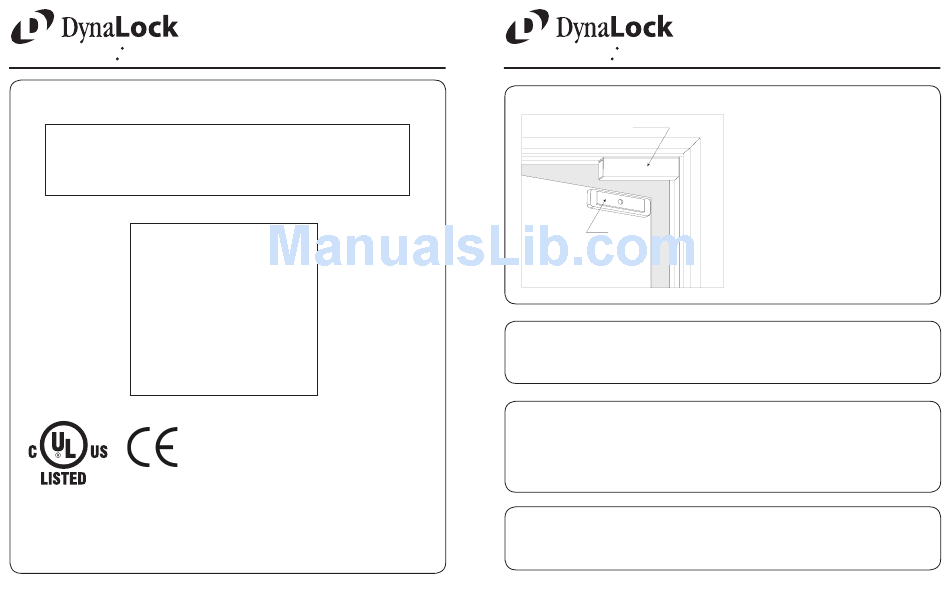

The illustration to the left shows a typical
installation on a single outswing door.
HANDLING
MECHANICAL INSTALLATION
ELECTRICAL INSTALLATION
Page 1
12/10
