DynaLock 2013 Installation Instructions

Electromagnetic lock

Advertisement

Quick Links

DynaLock
705 Emmett Street Bristol, CT 06011-2728
Phone:(860) 582-4761 Fax:(860) 585-0338
Familiarize yourself with the gate and post conditions prior to installation. The lock must rigidly mount to the gate
post. The armature is designed to pivot slightly to compensate for reasonable misalignment.
Due to the wide diversity of gate designs custom mounting brackets may be necessary to facilitate the installation.
A DynaLock universal Gate Lock Bracket ("GLB" Option) is available to accomodate the majority of gate
applications and may be purchased separately.
HANDLING
The Electromagnetic lock and armature are
ruggedly constructed and designed to provide
years of trouble-free service. Care must be taken
during installation and use to keep the lock face
and armature face free from dirt, rust, burrs, paint,
or any other obstruction which may interfere with
the lock and armature making good contact.

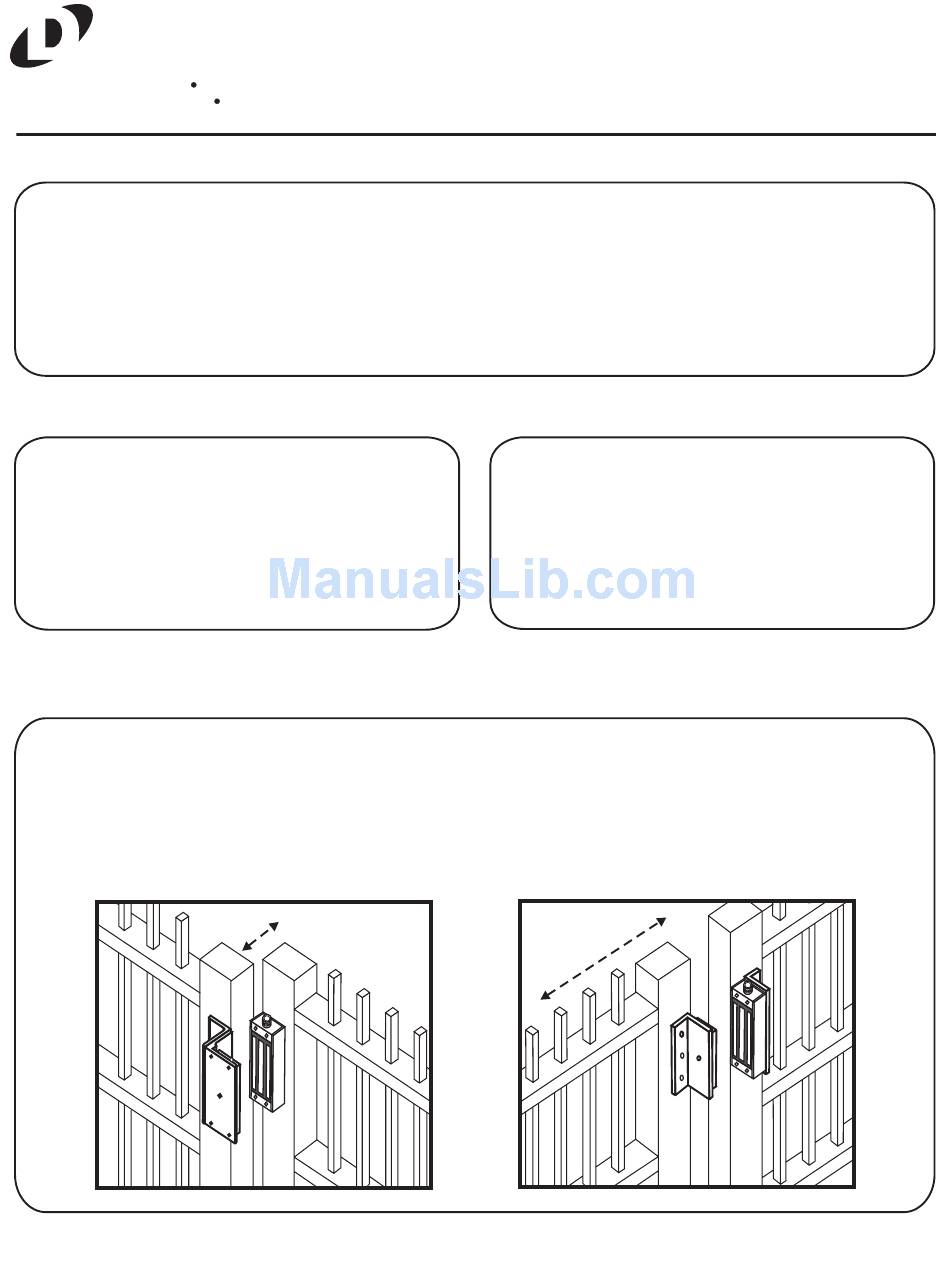

Typical installation depicting the #2013 lock
mounted to the vertical gate post. The
armature is mounted to the gate using the
adjustable Gate Lock Bracket ("GLB"
Option), available from DynaLock.
2013 MANUAL - FORM 2013-001
PLEASE READ BEFORE INSTALLATION
GENERAL MOUNTING INFORMATION
SWING GATE
ELECTROMAGNETIC LOCK
INSTALLATION INSTRUCTIONS
The lock assembly and gate armature have been
plated for maximum corrosion resistance. To
ensure peak performance clean the lock and
armature faces with a mild detergent and a clean,
soft cloth, then apply a light coat of WD40 to
lubricate and protect these surfaces. This need
only be done when dirt build-up is noticed.
Typical installation depicting the use of "L"
brackets custom-fabricated to suit the gate.
The #2013 lock is mounted to the vertical
gate post. The armature is mounted to the
leading edge of the gate.
page 1
MODEL #2013
MAINTENANCE
SLIDE GATE
.
02/03

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2013 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DynaLock 2013

  • Page 1 Due to the wide diversity of gate designs custom mounting brackets may be necessary to facilitate the installation. A DynaLock universal Gate Lock Bracket ("GLB" Option) is available to accomodate the majority of gate applications and may be purchased separately.
  • Page 2 PREPARE THE GATE POST FOR MOUNTING THE GATE LOCK ASSEMBLY Determine the desired location for mounting the 2013 Gate Lock assembly on the gate post. Orient the end of the lock with the 3/4" threaded conduit fitting relative to the location of electrical hook-up wiring.
  • Page 3 Refer to seperate wiring instructions for electrical hook-up. (Refer to Dwg. #900265) VERTICAL POST MAGNET AND ARMATURE FACE MUST MAKE FULL CONTACT GATE TOP VIEW OF 2013 GATE LOCK ASSEMBLY FOR A TYPICAL SLIDING GATE 2013 MANUAL - FORM 2013-001 02/03 page 3...
  • Page 4 4. Anti-tamper Plug Hardware Kit 5. Armature Spacer EXPLODED VIEW Part #300759 6. Rubber Washer 7. Anti-spin Pin 8. Steel Washer 9. Armature Bolt Sub-Assembly 10. Door Spacer Part #300628 11. Sex Nut 2013 MANUAL - FORM 2013-001 page 4 02/03...
