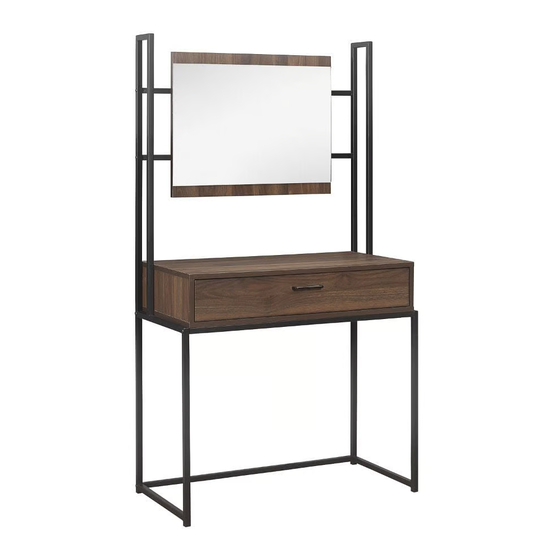

Assembly Instructions Title of Product Houston Wooden Dressing Table and Mirror Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
Page 2
Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
Vendor: S000350 ASSEMBLY INSTRUCTIONS HOUSTON DRESSING TABLE & MIRROR IMPORTANT : READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE OR USE YOUR HOUSTON DRESSING TABLE & MIRROR . PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. ASSEMBLY: Assembly should be carried out with this item laying flat, not standing upright. Assemble on a soft, clean surface to prevent damages.
Page 4
Vendor: S000350 Parts List Hardware List Part Descripion Qty Part Description Top panel Cam lock Bottom panel Minifix screw Side panel ( Left ) Plastic cap Side panel ( Right ) M8 x 30mm Wood Dowel Back panel M6 x 50mm CSK Cap Wood screw Drawer front M3.5 x 16mm C.B Screw Drawer side...
Page 5
Vendor: S000350 Step 1: Prepare these parts for assembly using hardware parts A1, A2, B, D and I1. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Attach side panel (3) and (4) to top panel (1) using hardware A1 and A2 with a screwdriver (not provided).
Page 6
Vendor: S000350 Step 4: Attach bottom panel (2) to side panel (3) and (4) using hardware C and F. DO NOT use any power tools as this may damage the frame and will invalidate any claim. C x 4 Step 5: Attach metal middle support (13) to bottom panel (2) using hardware F and G. DO NOT use any power tools as this may damage the frame and will invalidate any claim.
Page 7
Vendor: S000350 Step 7: Attach metal side (12) to metal side (16) using hardware F, G and H. DO NOT use any power tools as this may damage the frame and will invalidate any claim. G x 2 H x 2 Step 8: Attach metal side (12) and (16) to metal middle support (13), metal bottom support (14) and metal mirror support (15) using hardware F and H.
Page 8
Vendor: S000350 Step 9: Attach metal side (12) and (16) to metal middle support (13), metal bottom support (14) and metal mirror support (15) using hardware F and H. DO NOT use any power tools as this may damage the frame and will invalidate any claim. H x 5 Step 10: Insert hardware A1 onto drawer bone (9) with a screwdriver (not provided).
Page 9
Vendor: S000350 Step 11: Attach drawer bone (9) to drawer front (6) and drawer back (8) using hardware A1 and A2 with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. A3 x 4 Step 12: Attach the 1x Drawer Side (7) to the Drawer Front (6) and Drawer Back (8) using hardware E.
Vendor: S000350 Step 13: Assemble the drawers in place along the drawer slides. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 14: To secure the item to the wall use hardware E, J and K using a screwdriver (not provided). Then attach hardware part J to top panel (1) using hardware D with a screwdriver (not provided).
If this is not adhered to, it could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
