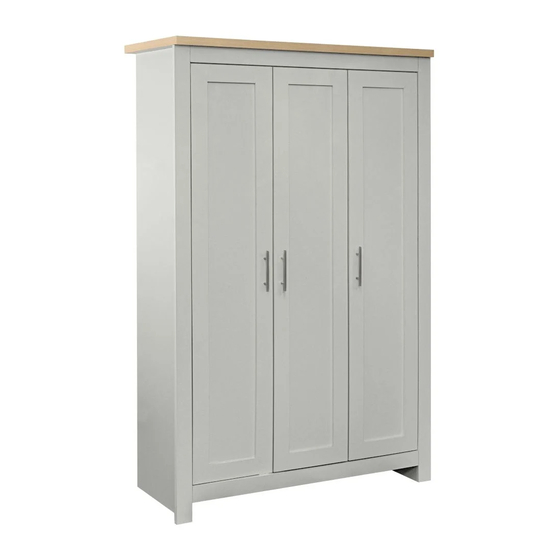

HIGHGATE Wooden 3 Door Wardrobe
HIGHGATE Wooden 3 Door Wardrobe
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product, to avoid
scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep these instructions for future reference.
Assembly Instructions
Title of Product
.
.
www.happybeds.co.uk
Advertisement
Related Manuals for Happybeds Highgate Wooden 3 Door Wardrobe
Summary of Contents for Happybeds Highgate Wooden 3 Door Wardrobe
- Page 1 Assembly Instructions Title of Product HIGHGATE Wooden 3 Door Wardrobe HIGHGATE Wooden 3 Door Wardrobe Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
-
Page 2: Care And Maintenance
Vendor: S000398 ASSEMBLY INSTRUCTIONS HIGHGATE 3 DOOR WARDROBE IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR HIGHGATE 3 DOOR WARDROBE . PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. HEALTH & SAFETY: DO NOT use this item if any parts are missing, damaged or worn. DO NOT use this item unless all fixings are secured. - Page 3 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
-
Page 4: Parts List
Vendor: S000398 PARTS LIST HARDWARE LIST: Carton 2 of 2 Carton 1 of 2: Part Description Qty Part Description Top Panel CAM NUT 15mm Left Panel CAM BOLT Right Panel WOOD DOWEL M6 x 25mm Fix Shelf Panel( small ) CSK SCREW M3.5 x 12mm Left Post Panel CSK SCREW M4 x 16mm... - Page 5 Vendor: S000398 Insert hardware part A & part B using a screwdriver (not provided). Insert hardware part C using a small mallet (not provided). Insert hardware part K using a small mallet (not provided). Fix hardware I & S with screw E using screwdriver (not provided). Fix hardware M with screw D using screwdriver (not provided).
- Page 6 Vendor: S000398 Attach the Post Panel together (12),(13),(14)&(15) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach Bottom Panel (5) to Center Panel (4) Using Screw (F) by screwdriver (not provided). Attach Fix Shelf Panel (11) and Back Support Panel (7) to Center Panel (4) by screwdriver (not provided).
- Page 7 Vendor: S000398 Before attach Fix Shelf Panel (9) to Center Panel (4) Insert hardware part (B) by screwdriver (not provided). Attach Left Panel (2) to Bottom Panel (5), Fix Shelf Panel (8) ,Back Support Panel (7) and Top Support Panel (10) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 8 Vendor: S000398 Attach ALL Post Panel (12) , (13) , (14) & (15) to Left , Right & Bottom Panel (2) ,(3) & (5) by screwdriver (not provided). Fix both Top Support Panel (8) to Top Post Panel (14) using screw (F) by screwdriver (not provided).
- Page 9 Vendor: S000398 Attach The Back Panel (17) & (18) using Nail (K) by screwdriver (not provided). Fix Anti tip strap (P) with washer (O) and Screw (Q) To Top Panel (1) by screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the Door (13) to Left , Right Panel (2) , (3) and Center Panel (4) with Hinges ( I )&...
- Page 10 Vendor: S000398 Vendor: S000398 Fix Anti tip strap (Q) with washer (P) and Screw (R) to wall by screwdriver (not provided). - Make sure it is firmly attached and make sure it is snug fit - Seek advice from a qualified trade person on how to attach this safety strap to your specific wall.
- Page 11 floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
