Fpc connectors (0,5mm pitch) slide lock

Advertisement

Quick Links

AYF51
RoHS compliant

ORDERING INFORMATION

AYF 5
51: FPC Connector 0.5 mm pitch
(Slide lock)
Number of contacts (2 digits)
Contact direction
1: Bottom contact
Surface treatment (Contact portion / Terminal portion)
5: Au plating/Au flash plating

PRODUCT TYPES

Height
Number of pins
1.9 mm
Note: Order unit;
For mass production: in 1-inner carton (1-reel) units
Samples for mounting check: in 50-connector units.
Samples: Small lot orders are possible. Please contact our sales office.
Panasonic Corporation

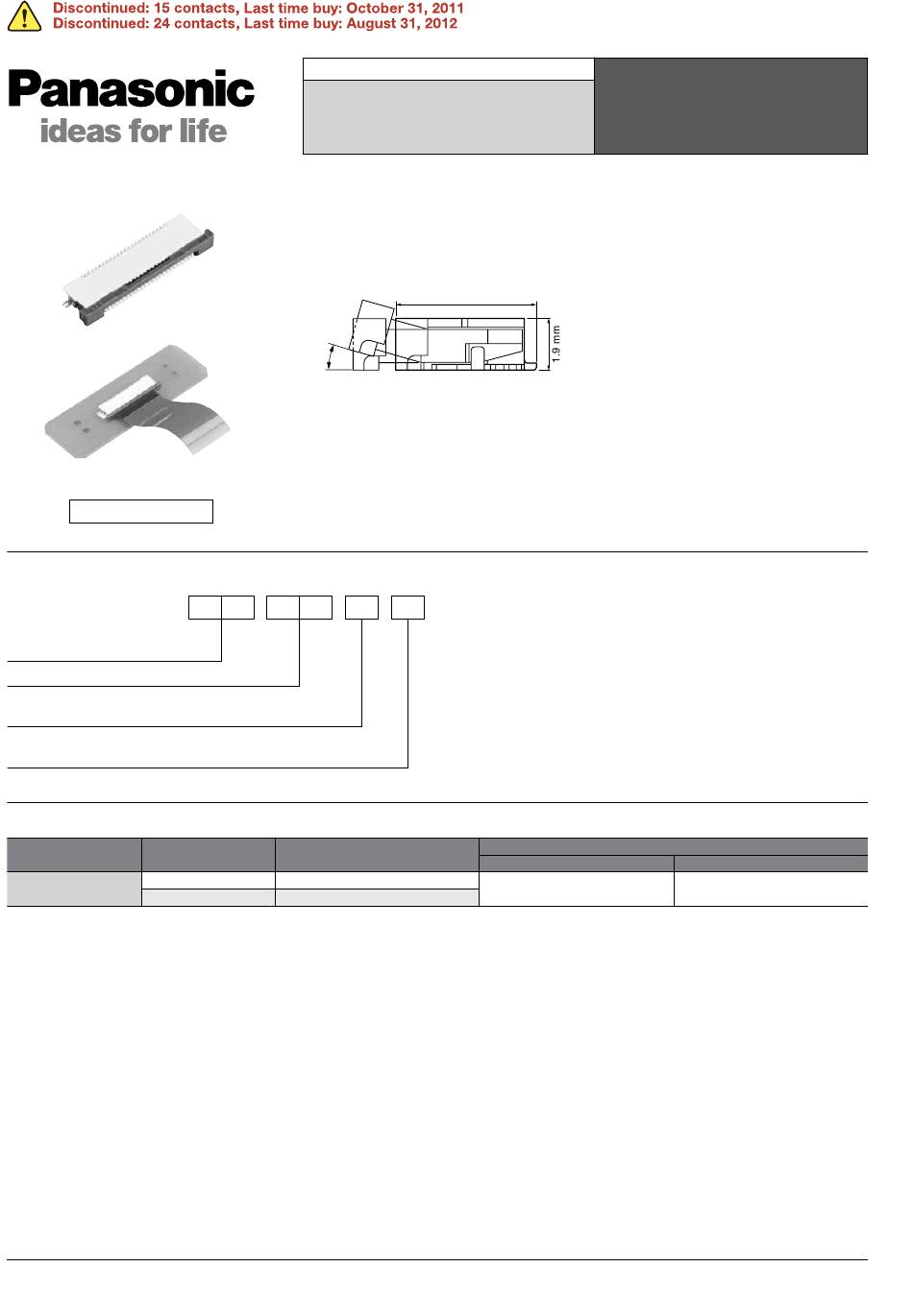

FPC connectors

FEATURES

1. A wide variety of digital equipments
The 0.5mm pitch, 1.9mm height, and
5.2mm depth are suitable for a variety of
digital equipment.
(15°)
2. Slide lock structure
The slide lock structure facilitates FPC
connection work.
3. Equipped with soldering terminals
for higher mounting strength
1
1
Part number
15
AYF511515
24
AYF512415
Automation Controls Business Unit
For FPC/FFC
(0.5mm pitch)
Slide lock
5.2 mm
5
Inner carton
2,000 pieces
industrial.panasonic.com/ac/e
Y5S
Series

APPLICATIONS

Digital equipment, such as PCs, digital
TVs, HDDs, car navigation systems,
home-use game machines,
multifunction fax machines, and
security cameras
Packing
Outer carton
4,000 pieces
ACCTB19E 201201-T
