- Page 1 Informationen für Therapeuten und Fachhändler Programmierfunktionen · Modellreihe E34z Information for Therapists and DME Dealers Programming and Service Guide · Model E34z Informations pour thérapeutes et revendeur spécialisés Les fonctions de programmation · Modèles E34z Información para terapeutas y comercios especializados Funciones de programación ·...
-
Page 2: Table Of Contents

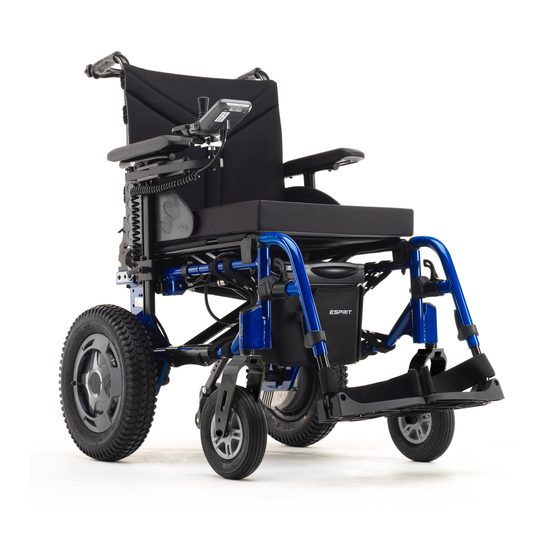

This information for therapists and specialist dealers provides details on these products: • Esprit E34z, up to 125 kg user weight, size of wheels 14” • e-fix eco, up to 120 kg user weight, size of wheels 22” and 24”... -
Page 3: Parameters
1. Parameters To meet the requirements of a diverse range of disabilities and customer requirements, the Esprit offers a wide range of user parameters that can be modified. Programming can be performed as described in chapter 2, directly using the control unit without an additional device. -
Page 4: Attendant Control" Menu
Acceleration The time it takes to reach the maximum speed. • The user may also refer to this as “reaction” (prompt/slow). • Reduce in the event of tremor or ataxia and for children’s wheelchairs (generally when the wheelchair and wheelchair user are light- weight). -
Page 5: Programming
2. Programming The different menus are navigated in the same way as described in the Esprit opera- ting manual. You also need the programming key (red) illustrated in the accompanying diagram, which is included with every new Esprit delivery. Parameters are selected and modified using the control unit joystick. Deflecting the... -
Page 6: Overview Of Menu Structure And Associated Buttons On The Control Unit
2.1 Overview of menu structure and associated buttons on the control unit Start screen (optional) 9:30 28.06.14 DISTANCE RANGE KM/H SPORT User screen Travel mode Display Setting KM counter Reset Tour Daily kilometres Daily kilometre Range counter Sport Time Custom Date Start screen Screen brightness... -
Page 7: Programming" Menu
Select Back 2.2 “Programming” menu The Esprit operating manual, from chapter 5.3, describes how to navigate through the different menus. To reach the programming menu, which is only accessible to specialist dealers and thera- pists, navigate using the joystick and buttons from the user screen to settings and then to programming (see also the menu structure in chapter 2.1). -
Page 8: User Mode" Menu
2.5 “Attendant control” menu The parameters contained in the attendant control menu relate exclusively to the intuitive attendant control that is fitted to the Esprit and which is supplied by Alber as an accesso- The parameters listed in chapter 1.1.3 can be adapted:... -
Page 9: Finishing Programming
2.6 Finishing programming You can finish programming the parameters at any time. To do this press button [24] several times until you reach the user screen. Please note that when you exit the programming menu the parameters that you changed are not saved automatically –... -
Page 10: Parameter Table
(2) Note on the Driving Assistant Calibration parameter The driving assistant must be calibrated if a new swivel arm or a new bracket for the control unit is attached to the Esprit. For this pur- pose, the Esprit must be placed on a flat, horizontally level surface. - Page 11 IMPORTANT When the Esprit is initially delivered, the parameters visible in the table (bold and underlined) are predefined as the factory settings for the drive modes ECO*, TOUR**, SPORT*** and SPEED****. However, when the Programming-Indep.user mode menu is called up, only the factory settings for TOUR drive mode are displayed on the control unit’s display screen.
- Page 12 Attendant control Description Selectable parameters Description Selectable parameters • 6.0 km/h 3.73 mph • 40% Maximum speed Turning speed forwards • 5.5 km/h 3.42 mph • 35% • 5.0 km/h 3.11 mph • 30% • 4.0 km/h 2.49 mph • 25% •...
-
Page 13: Error Table
B33 to Battery pack electronics fault Switch the system off and on again. If the error occurs again: send the battery pack to Alber for servicing. Residual capacity of the battery pack low, end of service Send the battery pack to Alber for servicing. - Page 14 If the error changes from M13 to M12: send the wheel to Alber for servicing. M14, M15 Drive temperature range error Reduce speed. Allow the drives to cool. If the error occurs again: send the wheels to Alber for ser- vicing.
- Page 15 If the error occurs again you need a new battery pack. No system communication Check the plug connections. If the error occurs again: send the system to Alber for ser- vicing. Drive encoding failure Send both wheels to Alber for servicing.
- Page 17 Ihre Alber-Vertretung / Your Alber representative / Votre représentation Alber / Vostra rappresentanza Alber / Su representación Alber / Din Alber representant / Din Alber-agenturene / Uw distributeur Alber / Deres Alber-repræsentation Alber GmbH Vor dem Weißen Stein 14 72461 Albstadt-Tailfingen...
