- Page 1 KLEIN. LEICHT. WENDIG. Elektrischer Zusatzantrieb Informationen für Therapeuten und Fachhändler Programmierfunktionen · Modellreihe E35/E36 Information for Therapists and DME Dealers Programming and Service Guide · Model E35/E36 Informations pour thérapeutes et revendeur spécialisés Les fonctions de programmation · Modèles E35/E36 Información para terapeutas y comercios especializados Funciones de programación ·...
-
Page 2: Table Of Contents

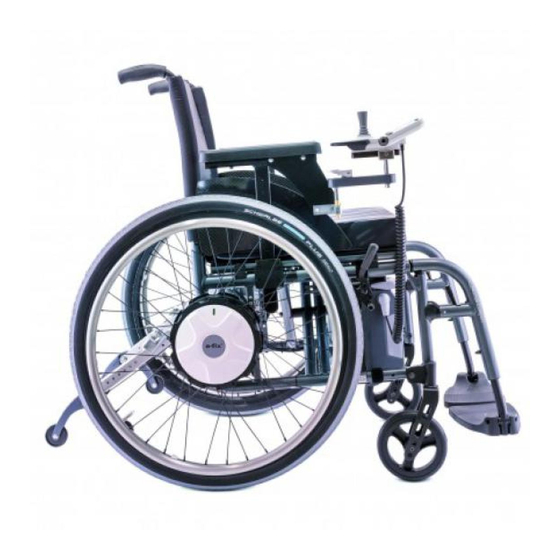

• e-fix E35, up to 120 kg user weight, size of wheels: 22” or 24” puncture proof • e-fix E36, up to 160 kg user weight, size of wheels: 24” punc- ture proof 41.0002.4.99.03 both called “e-fix” in the following. -
Page 3: Parameters
1. Parameters To meet the requirements of a diverse range of disabilities and customer requirements, the e-fix offers a wide range of user parameters that can be modified. Programming can be performed as described in chapter 2, directly using the control unit without an additional device. The following parameters are stored in the system, user mode, attendant control and Opti-Box. -
Page 4: Attendant Control" Menu
Acceleration The time it takes to reach the maximum speed. • The user may also refer to this as “reaction” (prompt/slow). • Reduce in the event of tremor or ataxia and for children’s wheelchairs (generally when the wheelchair and wheelchair user are light- weight). -
Page 5: Programming
24V SC supply Activates the supply voltage for the special controller. 24V external supply Currently not active. Setting for later use. Set factory settings Resets the settings for “Speed stop/speed limit” and “Reduced speed” to the factory settings. All the other settings included in the Opti-Box menu have to be reset using the System-Set factory settings menu. -
Page 6: Overview Of Menu Structure And Associated Buttons On The Control Unit
2.1 Overview of menu structure and associated buttons on the control unit alber e-fix e-fix Start screen (Optional) Alber 9:30 28.06.14 DISTANCE RANGE KM/H SPORT User screen Travel mode Display Setting KM counter Reset Tour Daily kilometres Daily kilometre Range... -
Page 7: Programming" Menu
The control unit buttons are assigned to the menus and sub menus as follows: • “Save” or “Test” display (double assignment) Saving or testing a parameter: press button [15] • “Select” display System setting Jumps to a menu or sub menu: press button [16]. •... -
Page 8: User Mode" Menu
The parameters included in the Opti-Box menu affect a special controller (not supplied by Alber) which is connected to an e-fix by the Opti-Box. This menu can also be used to activate the speed stop/limit switch for stand-up/lift chairs and set the reduced speed. -
Page 9: Finishing Programming
2.7 Finishing programming You can finish programming the parameters at any time. To do this press button [17] several times until you reach the user screen. Please note that when you exit the programming menu the parameters that you changed are not saved automatically –... -
Page 10: Parameter Table
3. Parameter table System Description Selectable parameters Description Selectable parameters • Immediately • 100% Brake applied Joystick deflection • 30 seconds • 80% • 60% • 40% • 10 minutes • Standard Automatic cut-off Joystick axle change • 20 minutes •... - Page 11 Attendant control Description Selectable parameters Description Selectable parameters • 6.0 km/h 3.73 mph • 40% Turning speed Maximum speed forwards • 5.5 km/h 3.42 mph • 35% • 5.0 km/h 3.11 mph • 30% • 4.0 km/h 2.49 mph • 25% •...
- Page 12 Opti-Box Description Selectable parameters Description Selectable parameters • Yes • 6.0 km/h Maximum speed Speed stop/speed limit (1) • No • 5.5 km/h forwards • 5.0 km/h • 4.0 km/h • 3.0 km/h • 2.5 km/h • 2.0 km/h • 1.5 km/h •...
-
Page 13: Error Table
B33 to Battery pack electronics fault Switch the system off and on again. If the error occurs again: send the battery pack to Alber for servicing. Residual capacity of the battery pack low, end of service Send the battery pack to Alber for servicing. - Page 14 M14, M15 Drive temperature range error Reduce speed. Allow the drives to cool. If the error occurs again: send the wheels to Alber for ser- vicing. M16, M17 Drive overload error The load is too high for the drives. Avoid overloading.
- Page 15 If the error occurs again you need a new battery pack. No system communication Check the plug connections. If the error occurs again: send the system to Alber for ser- vicing. Drive encoding failure Send both wheels to Alber for servicing.
- Page 16 Error Remedy • Check the plug connections. Opti-Box communication error • If the error occurs again: Send Opti-Box to Alber for servicing. • Check the plug connections. Opti-Box external error • If the error occurs again: Send Opti-Box to Alber for servicing.
