Volvo Construction Equipment
Printed in Sweden
KOR

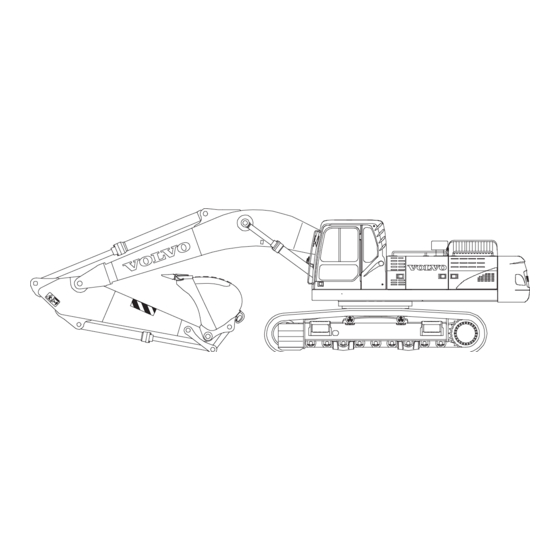

EC330B
R
e
f
.
N
o
.
:
V
O
E
2
1
3
4
3
5
5
1
3
0
E
n
g
l
i
s
h
OPERATOR'S MANUAL
Advertisement
Related Manuals for Volvo EC330B
Summary of Contents for Volvo EC330B
- Page 1 OPERATOR’S MANUAL EC330B GET MORE: Hydraulic, System, Setting, Instructions, Functional Description, Electrical System And More..Click Here BUY NOW Then Instant Download the Complete Manual Printed in Sweden Volvo Construction Equipment...
- Page 2 California Proposition 65 Warning Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm. California Proposition 65 Warning Battery posts, terminals and other related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and other reproductive harm.
- Page 3 OPERATOR’S MANUAL EC330B Foreword This Operator Manual is intended as a guide for the correct use and maintenance of the machine. Therefore, study it carefully before starting and operating the machine, or before carrying Contents out any preventive maintenance. Keep the manual in the intended place in the cab so that it is always at hand.
- Page 4 – all modifications and repairs performed, and methods used, have been prescribed by Volvo. – only Volvo genuine spare parts/accessories, or genuine spare parts/accessories which meet Volvo’s requirements, have been used. WARNING!
- Page 5 IMPORTANT! All installation of optional electronic communication equip- ment must be performed by trained professionals and in accordance with Volvo Construction Equipment instructions applicable to the specified machine. Protection from electromagnetic interfer- ence This machine has been tested in accordance with EU directive 89/ 336EEC governing electromagnetic interference.
- Page 6 Forewor Communication equipment, installation...
- Page 7 Contents Contents Forewor ..............1 Communication equipment, installation ........3 Contents ..............5 Presentation ............. 7 General..................7 Plates and decals ..............10 Service .................. 24 General information ............... 25 Instruments and controls ........29 General.................. 29 Overview ................30 Description of instrument panel..........
- Page 8 Contents Safety when servicing ........119 Introduction ............... 119 Service position ..............120 General ................121 Handling lines, tubes and hoses ........123 Measures to prevent fire ........... 124 Batteries ................128 Air conditioning ..............130 Use handholds and steps for climbing on / off ....132 Service and maintenance ........
- Page 9 The engine is a straight six-cylinder, four stroke, direct injection diesel with 9.6 liter cylinder volume, turbo charged, intercooled and electronic controller fuel injection, EMS (Engine Management System) with a cast iron block and cylinder head. Volvo engine D12CECE2 Electrical system...
- Page 10 Presentation General Main control valve The control valve consists of two 5-spool blocks and an intermedi- ate block connected by screws. They contain six main spools for digging units, three spools for conflux and straight travel, a spool for the option unit, a main relief valve, port relief valves, holding valves and check valves.
- Page 11 CE marking and the issue of a new Decla- ration of Conformity in compliance with the EU Machine Safety Directive. Volvo Construction Equipment is only responsible for a ma- chine which is used with approved equipment and spare parts specified by Volvo Construction Equipment.
- Page 12 Identification Number (PIN) should be stated. Volvo Construction Equipment Volvo Construction Equipment Volvo Construction Equipment Volvo Construction Equipment Korea Ltd. Volvo Construction Equipment Korea Ltd. Volvo Construction Equipment Korea Ltd. 1, Guehyun-Dong, Changwon-City, Kyungnam, Korea 641-430 1, Guehyun-Dong, Changwon-City, Kyungnam, Korea 641-430...
- Page 13 Presentation Plates and decals 3 The quickfit nameplate is attached on the outside of the quick- fit. (shows part number and weight) 4 The bucket nameplate is attached on the top of the bucket. (shows the bucket model order Number, serial number, bucket part number, rated capacity, weight, cutting width, tooth part number and adapter part number)
- Page 14 Presentation Plates and decals Information and warning plates The following depicts various warning and information texts that may be affixed to the machine and their mounting location. The op- erator must know and pay attention to the warning and safety in- formation on each decal and plate.
- Page 15 Presentation Plates and decals 4 Emergency exit See The emergency hammer (B) should be used in emergen- cy situations for: on page 65. S80954 5 Warning, high voltage See Never operate close to a high tension power line on page S80602 6 Warning when operating the optional attach- ment...
- Page 16 Presentation Plates and decals S84243 8 Lifting capacity table Shoe 600 mm (kg) Pressure 34.34 MPa (350 bar) 5800 kg 6.45 m S84241 S84240C 0.0 m 1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m Maximum 8870 7.5 m 7040 10780...
- Page 17 Presentation Plates and decals Shoe 23.6 in (lb) Pressure 34.34 MPa (350 bar) 12790 lb 21' 2" S84241A S84240D 0.0 ft 5.0 ft 10.0 ft 15.0 ft 20.0 ft 25.0 ft 30.0 ft Maximum 20050 19670 25 ft 19990 15890 23460 18980 20 ft...
- Page 18 Presentation Plates and decals S84243 Shoe 31.5 in (lb) Pressure 34.34 MPa (350 bar) 12790 lb 21' 2" S84241A S84240E 0.0 ft 5.0 ft 10.0 ft 15.0 ft 20.0 ft 25.0 ft 30.0 ft Maximum 20050 19670 25 ft 20490 16310 23460 18980...
- Page 19 Presentation Plates and decals Shoe 600 mm (kg) Working conditions: – With no tool (bucket, clamshell.). If object handling is performed with tool installed, the weight of the tool shall be deducted, the weight of the tool shall be – With retracted bucket cylinder. –...
